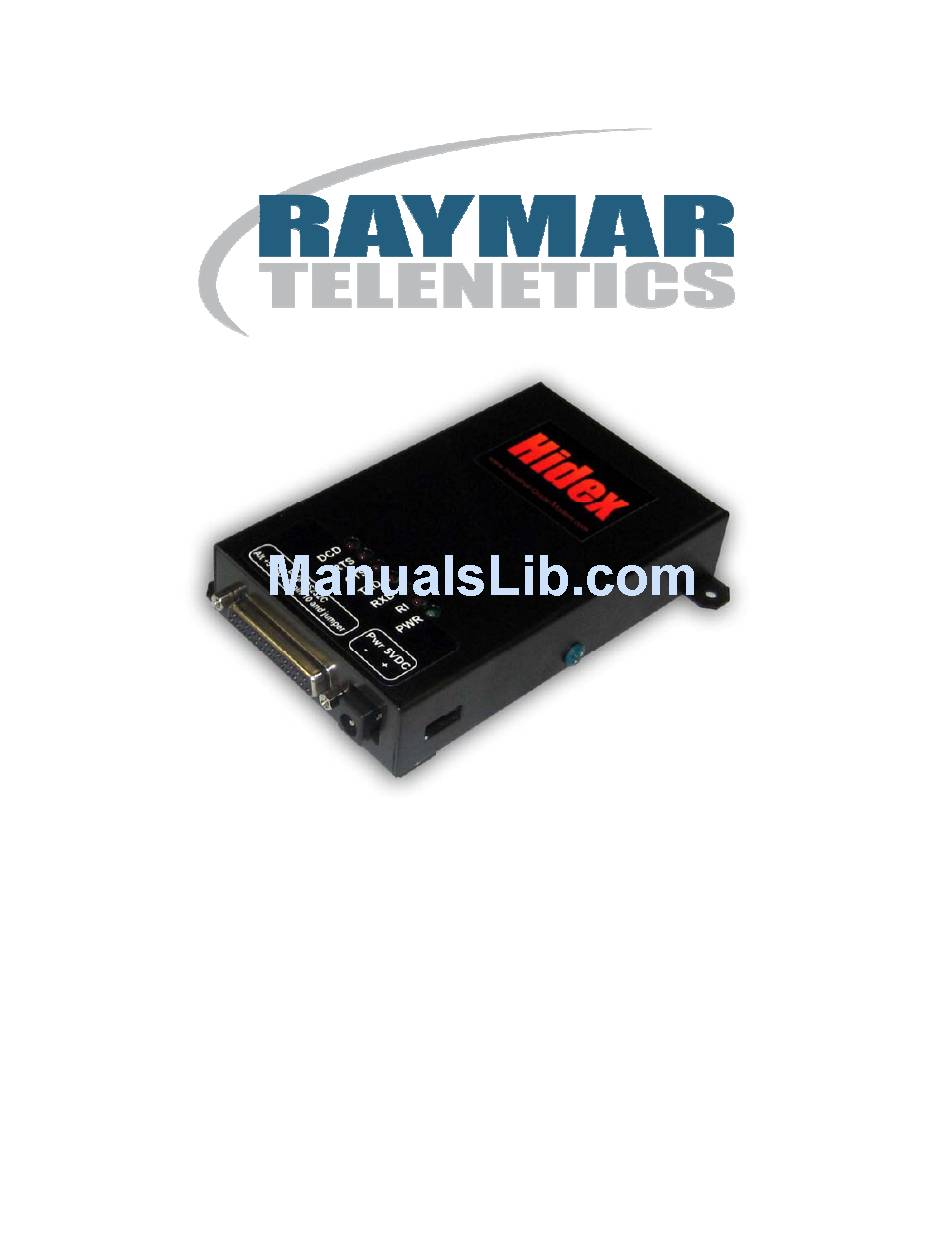

- Page 1 Industrial Grade Modems Hidex HXIIxxTy User’s Guide 0049-3400-XXX Hidex HXIIxxTy – USER’S GUIDE 08/18/2010 Rev. C...
- Page 2 Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, CA 95842 800-695-1951 Fax: 916-783-1952 0049-3400-XXX HIDEX HXIIxxTy – USER’S GUIDE 08/18/2010 Rev. C Page i...
- Page 3 User’s Guide and all accompanying hardware and documentation are copyrighted. Raymar-Telenetics does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
-
Page 4: Table Of Contents
TABLE of CONTENTS 1. DESCRIPTION..........………………….Page 1 2. PRODUCT SPECIFICATIONS .....……………….…Page 1 3. COMPLIANCE TO GLOBAL TELEPHONE STANDARDS..Page 3 4. EXTERNAL POWER SOURCES....……………….…Page 4 5. POWER CONNECTIONS ......……………….…Page 5 6. SAFETY GROUND CONNECTION ………………………….Page 6 7. LED INDICATORS ……..…………………………………..…Page 16 8. HARDWARE SETUP..……………………………………..Page 7 9. -
Page 5: Description
Description The Hidex HXII Industrial Grade Modem is the most versatile model for dial-up or leased analog telephone line interconnects. The Hidex HXII56TM offers speeds up to 56Kbps over the analog switched telephone network and the HXII33TM is 33Kbps. They are temperature tested, rugged modems in a metal case designed for Industrial applications. - Page 6 Category Description Operating Voltage HXIIxxTM 5 VDC ± 5% Absolute Maximum Supply Voltage: 5.5 VDC Option A 9 to 18 VDC via power connector. Option B 18 to 36 VDC via power connector. Option C 36 to 72 VDC via power connector. Operational Temperature Range -40 to +85º...
-
Page 7: Compliance To Global Telephone Standards
Automatic symbol and carrier frequency during start-up, retrain, and rate renegotiations DTMF detection Callback security Distinctive ring Voice record and playback Call status display, auto-parity and data rate selections Keyboard-controlled modem options On-screen displays for modem option parameters Remote configuration DTR dialing Phone number storage Flash memory for firmware updates... -
Page 8: External Power Sources
External Power Sources The native power for model HXIIxxTM is 5VDC to the power connector or via DB25 connector. The power options A, B & C are internal and change the external power to be supplied via the barrel connector (pictured below). If no option is selected the 115VAC external supply is provided. -
Page 9: Power Connections
Power Connections There are two optional methods of supplying power to the modem. Use the power connector or via the RS232 cable. A slide switch on the side of the case selects which is used. Included with each modem is the mating connector for the input power. Connect the external 5 VDC power source to the supplied connector with attention to the +/- polarity of the voltage source. -
Page 10: Safety Ground Connection
Safety Ground Connection Ground Jumper Option +5V Power Input Ground screw Select Switch Jumper Use the GREEN case cover screw to connect a safety ground wire if desired Data Interface Data is interfaced via a DB25 female connector. To change the ground jumper position, remove Pin 1 GRD Signal Ground the two outer enclosure screws and then remove... -
Page 11: Hardware Setup
Hardware Setup Setup Procedure: Use an RS-232 cable to connect the DB25 connector (J1) on the modem to a PC serial Port (Typically COM1). Connect the RJ11 connector to a phone line. Connect external power +5VDC to the power jack or via alternate DB25 pins 10 & 7. See the Power Connections section to ensure correct connector polarity and power select switch position. -
Page 12: Dial Line Setup
Dial Line Setup To communicate using the modem, use an asynchronous communication program. The command set for the modems is compatible with the Hayes command set. The modem is controlled and configured by the AT (attention command). Each command consists of the following elements (with the exception of the A/and the +++ command that will be discussed later). -
Page 13: Leased Line Setup
Leased Line Modem Setup for HXII56TM First, always set the terminal data speed to something below the modems transmit speed i.e. Terminal speed set to 9600 bps and modems connect at 32 Kbps. This is to prevent the modems buffers from over running. Next, set the following AT commands and store into NVRAM. -
Page 14: At Command Summary
AT Command Summary Organization of AT Commands on the following pages: 1st, by the initial command character (&, +, %) 2nd, alphabetized by the second command character (Except for listing of AT). Command Description Attention Code Answer Repeat Last Command Communication Standard Setting Dial DS=y... - Page 15 Command Description &Gn V.22bis Guard Tone Control &Kn Flow Control Selection &Ln Leased Line Operation (HXII56TM only) &Pn Pulse Dial Make-to-Break Ratio Selection &Qn Asynchronous Communications Mode &Sn Data Set Ready (DSR) Control &Tn Loopback Test (V.54 Test) Commands &V Display Current Settings &Wn Store Current Configuration...
- Page 16 +++AT<CR> Escape Sequence %%%ATMTSMODEM<CR> Remote Configuration Escape Sequence Complete AT Commands and Programming The complete AT commands can be downloaded from our web site. www.raymarinc.com Raymar Information Technology, Inc. Phone: (800) 783-1951, +1-916-783-1951 Fax: 916-783-1952 Email: sales@raymarinc.com Web: www.raymarinc.com 0049-3400-xxx HIDEX HXIIxxTy –...
-
Page 17: Limited Warranty
Raymar Information Technology, Inc., dba Raymar-Telenetics, warrants their products against defects in hardware, material and workmanship under normal use for one (1) year from the date of purchase. Raymar will, at no charge, either repair the product (with new or reconditioned parts), or replace it (with a new or reconditioned product). -
Page 18: Rma Procedure
Return Merchandise Authorization (RMA) Procedure Before returning any Raymar-Telenetics product, an RMA number must be obtained. The most convenient way to obtain an RMA number for a product purchased from Raymar-Telenetics is to call 1-800-747-1522. When doing so, please have the following information ready:... - Page 19 0049-3400-xxx HIDEX HXIIxxTy – USER’S GUIDE 08/18/2010 Rev. C Page 15 of 15...
