ASTRO 25 ANALOG MODEM II
ASTRO 25 IP MODEM II
&
GTR 8000 PORT EXPANDER

Installation Guide

0049-3200-100
ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide
Rev. G
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASTRO 25 Analog Modem II and is the answer not in the manual?

Questions and answers

Related Manuals for Raymar ASTRO 25 Analog Modem II

Summary of Contents for Raymar ASTRO 25 Analog Modem II

  • Page 1: Installation Guide

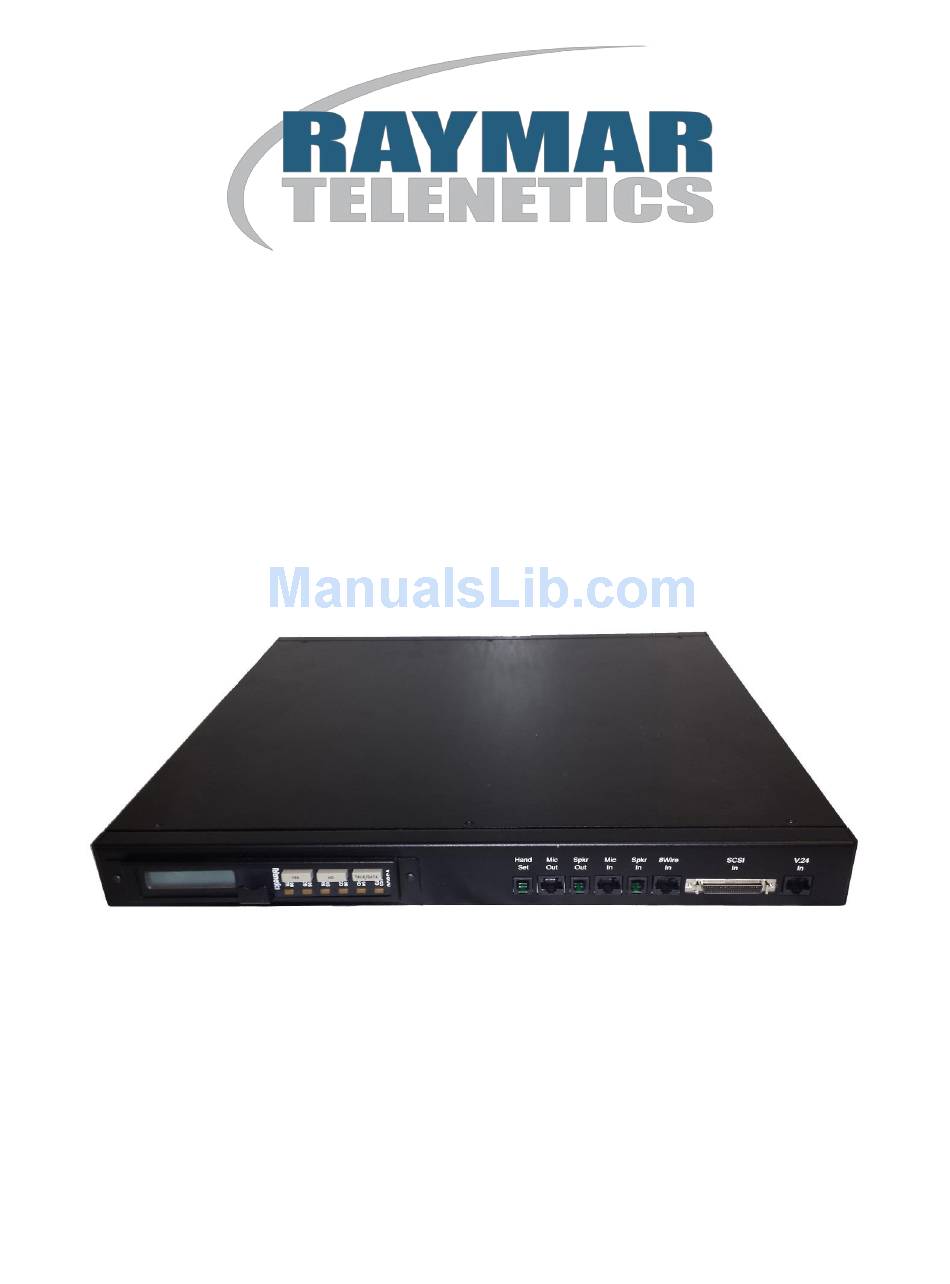

    ASTRO 25 ANALOG MODEM II ASTRO 25 IP MODEM II & GTR 8000 PORT EXPANDER Installation Guide 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 2 Raymar- Telenetics.  Copyright 2013 Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, California 95842 Tel: 800-695-1951 Direct: +1-916-783-1951 Fax: 916-783-1952 Web site: www.raymarinc.com 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 3: Regulatory Information

    Part 68 compliant. See installation instructions in Chapter 2, Installation, for details. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 4 Relative Humidity 5% to 90% (Non-condensing) Power Requirements: Input voltage: 18 – 36VDC 90 – 265 VAC/VDC (when using 0057-3200-110) Input Current: POWER OPTIONS 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 5: Ordering Information

    0057-3200-112 allows the unit to be powered using the AUX power interface on the GTR 8000. DS00573200112 62680-02 CABLE, 7ft CTP Configuration cable, F/DB25 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 6: Contact Information

    Contact Information For more information about Raymar-Telenetics ASTRO 25 Analog Modem II, ASTRO 25 IP Modem II & GTR 8000 Port Expander, or other Raymar-Telenetics solutions, contact us using any of the following methods. Voice Calls We welcome your calls at (800) 747-1522 Monday through Friday, from 7:00 am to 5:00 pm Pacific Time.

  • Page 7: Table Of Contents

    Provincial Law Rights ......................... How To Use Raymar’s Limited Warranty Service Section 6.03 ............47 Section 6.04 Return Merchandise Authorization (RMA) Procedure ..........48 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 8: Introduction

    Section 1.02 APPLICATIONS The ASTRO 25 Analog Modem II, the ASTRO 25 IP Modem II & GTR 8000 Port Expander fulfills 3 roles:  Point to Point connectivity between the GTR 8000 and Astrotac / Quantar base stations over a 4wire analog leased line network (V.34, 28.8Kbps)

  • Page 9: Installation

    Section 2.01 INSTALLATION This section describes how to install the ASTRO 25 Analog Modem II, the ASTRO 25 IP Modem II & GTR 8000 Port Expander. Section 2.02 UNPACKING AND INSPECTING EQUIPMENT Unpack the equipment and inspect it for any damage that may have occurred in shipment. If you see any damage or if items are missing, contact Raymar-Telenetics.

  • Page 10: Installation Procedures

    Figure A. GTR 8000 with ASTRO-TAC 3000 Leased Line Pt – to - Pt GTR 8000 Figure B. GTR 8000 Port Expander GTR 8000 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 11 When multiple QUANTAR and GTR base stations are voted on the same ASTRO-TAC comparator, the ASTRO 25 Analog Modem II will be required for each leased link to the comparator. Mixing the traditional QUANTAR / ASTRO-TAC interfaces with the ASTRO 25 Analog Modem II on the same voted ASTRO- TAC channel may cause problems with audio quality.

  • Page 12: Astro 25 Ip Modem Ii Applications

    Traditional Radio networks rely on low speed analog leased lines for site to site connectivity. The Raymar ASTRO 25 IP Modem II offers network solutions to bridge older network requirements with current network infrastructure. Our unique product solutions offer a wide range of solutions to meet any network requirements.
  • Page 13 Large networks with complex layouts and multiple locations are easily supported using our Vanguard products, offering network backup and failover. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 14 This port has an RJ45 connector. Use the Prgm port for communicating with, configuring, monitoring, and coldloading the node. Console Port Number Signal Input Input Output Output -------- Input Output Output V.24 Signal RCLK TCLK 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 15 Line 2 - Ethernet Port: Signal Transmit Positive Transmit Negative Receive Data Positive Not Used Not Used Receive Data Negative Not Used Not Used 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 16 24 trunking - Control Channel Indicate 16 Ground 8 Phone Patch - Inhibit 17 Ground 18 Ground 25 Trunking - RSTAT 19 Ground 20 Ground 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 17 Opto-Isolated Input - Current flow to Activate Auxiliary Input 12 + Input Opto-Isolated Input - Current flow to Activate Auxiliary Input 14 Input Pull To Ground To Activate 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 18 Line 4 + 8 VDC 8 VDC UNLOADED, 5.5 VDC LOADED Line 1 - Line 2 - Line 3 - Line 4 - 14.2 VDC 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 19: Physical Layout

    Front 8 Wire In RJ45 Signal Name RJ45 Pin # Line 2+ Line 2- Line 3+ Line 1- Line 1+ Line 3- Line 4+ Line 4- 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 20: Installation Process

    Section 5.01 INSTALLATION PROCESS Powering Up Your ASTRO 25 Analog Modem II, ASTRO 25 IP Modem II & GTR 8000 Port Expander Front Panel Operation. In the ASTRO 25 Analog Modem II model, the configuration for the modem is performed using the front panel display.
  • Page 21 Detailed configuration options are detailed in the section for the V.3600 Modem. For the ASTRO 25 Analog Modem II model, the units operate in an “A” and “B” configuration. The “A” unit installed at the master location and the “B” unit installed at the remote location.
  • Page 22 Press “Yes” Press “No”, Display = “CHANGE MAX RATE TO 28800 BPS?” Press “YES” Press “Talk/Data” Twice, Display = “Load or Store Option Set?” 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 23 Press “No” 4 Times, Display = “Modify Configuration?” Press “Yes” Once Press “Talk/Data” Once, Display = “Load or Store Option Set?” Press “Yes” twice, Display = “Load Factory Option Set #1?” 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 24 Press “No”, Display = “CHANGE MAX RATE TO 28800 BPS?” Press “YES” Press “No” 4 times, Display = “NORMAL ORIGINATE FORCED ANSWER?” Press “YES” 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 25 Press “Talk/Data” 3 times, Display = “V.34 28800 TRAINING” After connecting the ASTRO 25 Analog MODEM II 4W Interface to the leased line, the modems will negotiate a connection and once the modems are Online the display will show “V.34 28800 ONLINE”, and the 109/CD LED will be lit.
  • Page 26 From the main menu, ether “15” for “Configuration Save/Restore”. Then enter “2” for KERMIT Restore Configuration. Note: No need to wait for any further prompt. Random characters may appear on the TeraTerm Window which should be ignored. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 27 From the TeraTerm “File” pulldown, move the cursor over “transfer”, then “Kermit” and then click on “Send”: Note: Do not select the “Send File” under the main “File” pull down 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 28 A new window will appear to select which file to send. Browse to the CDROM Config folder and open the MODEM_A.MEM or MODEM_B.MEM for the unit location (Local/Remote). 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 29 If there is a failure, it is often due to the Kermit protocol timing out before TeraTerm is ready. To recover, restart the process. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 30 “7.4.y”. The ASTRO 25 Analog Modem II model configuration is now complete. CONFIGURING THE ROUTER IN ASTRO 25 IP Modem II Models 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 31 Download configuration files to the ASTRO 25 IP Modem II units in the same manner as were outlined in the ASTRO 25 Analog Modem II units. The ASTRO 25 IP Modem II configuration files are ETH_A.MEM and ETH_B.MEM depending on the unit location (Local/Remote). After the warm boot has been completed, additional router settings will need to be made to complete the configuration.
  • Page 32 From the Configure IP menu, enter “2”, Interfaces. Hit the Enter/Return key to configure Interface 1. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 33 Hit the escape key to return to the Configure IP menu, enter “5”, Static Routes. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 34 Hit the Escape key 4 times to return to the Main menu and perform a warm restart by entering 7.4.y. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 35: Diagnostics

    Configure the remote unit in the same fashion with the assigned IP addresses from your IP administrator. The ASTRO 25 IP Modem II model configuration is now complete. Section 5.02 DIAGNOSTICS 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 36 IP Ping From the ASTRO 25 IP Modem II Main menu, select “12”, Diagnostics. From the Diagnostics menu, select “13”, IP Ping 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 37 A successful ping test will show ICMP packets returned from the remote ASTRO 25 IP Modem II. An unsuccessful ping test will not show ICMP packets returned, instead ICMP packet loss. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 38 ASTRO 25 IP Modem II units and leave the remaining parameters defaulted. The last IP address reported in the trace result is where the connection is failing. Examine Port, Network Services, Router 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 39 The Port and Network Services have been configured by the MEM files previously uploaded to the units. They will differ slightly between the ASTRO 25 Analog Modem II and the ASTRO 25 IP Modem II models. Both models utilize Port 1 and Port 7. To verify these settings, from the Examine menu, enter “2” for Port.
  • Page 40 Port 1 settings for ASTRO 25 Analog Modem II and ASTRO 25 IP Modem II models. Note the Port Type is TBOP and the Interface Type is V.24. Port 7 settings for ASTRO 25 Analog Modem II and ASTRO 25 IP Modem II models.
  • Page 41 Port 10 settings for an ASTRO 25 Analog Modem II model. Note the Port Type is FRI, Clock Speed is 28800 and the Control Protocol Support is Annex_D. Verify Router 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide...
  • Page 42 Menu, enter “16”, Examine Router. From the Examine Router menu, enter “1”, Examine Interface States. Enter “1” for Router Interface 1. The Interface State should be Enabled. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 43 Enter “2” for Interfaces and then “1” for Interface 1. Ensure the IP Address and IP Address Mask are configured correctly for the unit location (Local/Remote) provided by your IP Administrator. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 44 To Examine Default Subnet Gateway settings, if one was entered previously, enter “6” from the Examine IP Menu and then “1” for Table Entry 1. Verify configuration is correct. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 45 Port Status/Statistics To check the operational status of configured/connected ASTRO 25 Analog Modem II, ASTRO 25 IP Gateway models, Enter “5”, Status/statistics from the Main Menu. From the Status/statistics menu, enter “2”, Detailed Port Stat. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide...
  • Page 46 9600. By continually re-examining Port 1, you should observe Characters In/Out and Frames In/Out increment. Hit the Escape key and Enter “7” to check the Status of the Voice Port. It should be in the Running state. 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...
  • Page 47 On ASTRO 25 Analog Modem II models, Port 10 Status should also be verified. The Port Status should 0049-3200-100 ASTRO 25 Analog Modem II / ASTRO 25 IP Modem II Install Guide Rev. G...

  • Page 48: Appendix

    (1) year from the date of purchase. Raymar will, at no charge, either repair the product (with new or reconditioned parts), or replace it (with a new or reconditioned product). Repaired replacement products are warranted for either 90 days or the remainder of the original warranty period, whichever is longer.

  • Page 49: (C) General Provisions

    To take advantage of this warranty, you must do the following: • If you are having trouble with your product, contact Raymar service using the appropriate number from the Service and Support section of the User’s Guide. If it is determined that your product requires service, you will be issued a Return Materials Authorization (RMA) form.

  • Page 50: Return Merchandise Authorization (Rma) Procedure

    RETURN MERCHANDISE AUTHORIZATION (RMA) PROCEDURE Before returning any Raymar-Telenetics product, an RMA number must be obtained. The most convenient way to obtain an RMA number for a product purchased from Raymar-Telenetics is to call 1-800-747-1522. When doing so, please have the following information ready:...
  • Page 51 7325 Roseville Road Sacramento, CA 95842 The RMA number must be legibly displayed on the shipping carton. Raymar-Telenetics will not be responsible for any product returned without an RMA number. If the product is out of warranty, estimates for repair rates and any applicable shipping costs will be communicated by a customer service representative.
