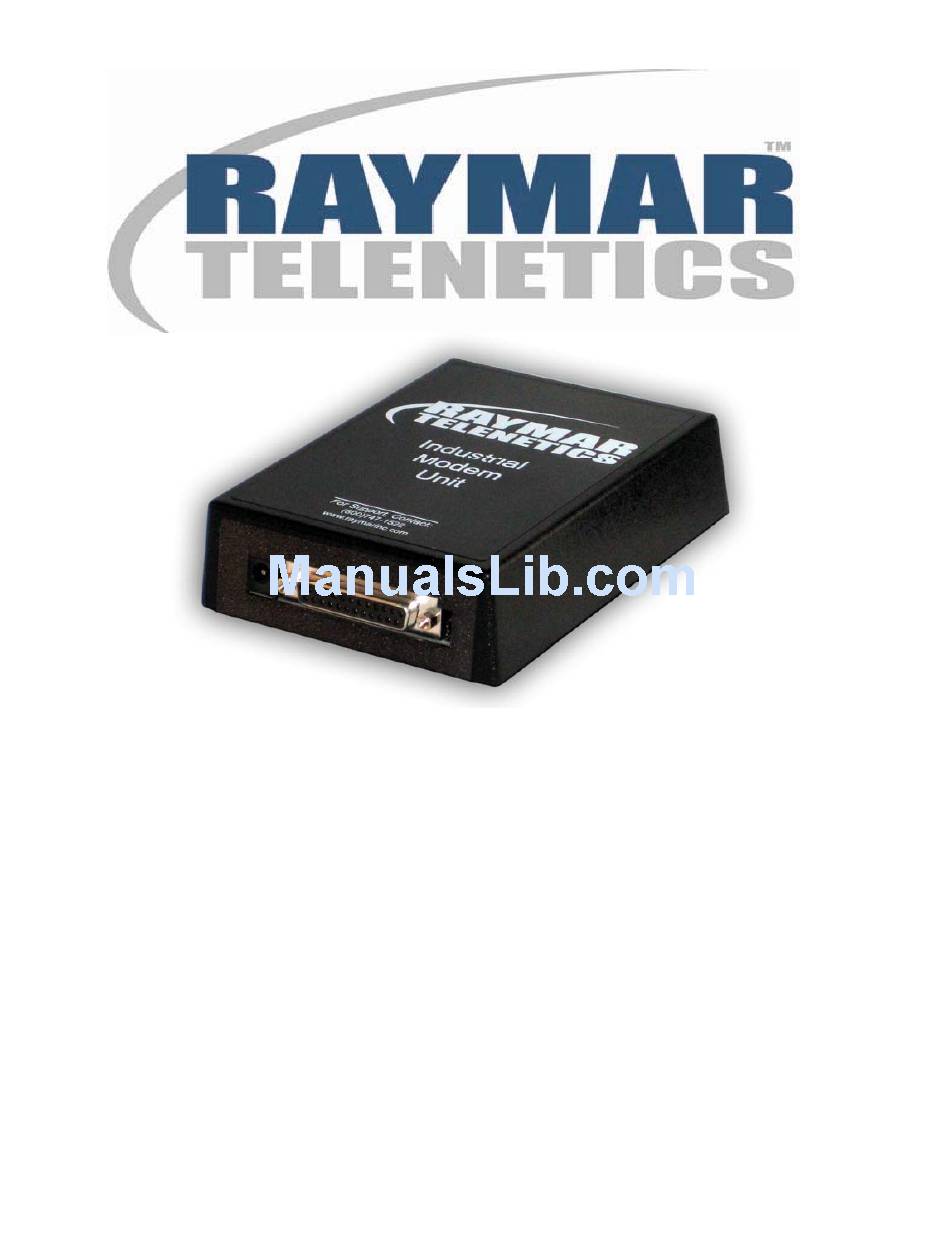

- Page 1 Installation, Operation & Diagnostics for the MIU/PowerPort Series 2.4 / 9.6 / 14.4 / 28.8 0049-0300-XXX MIU/PowerPort Series – USER GUIDE 08/04/2010 Rev. A...
- Page 2 Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, CA 95842 800-695-1951 Fax: 916-783-1952 0049-0300-XXX MIU/PowerPort Series – USER GUIDE 08/04/2010 Rev. A Page i...
- Page 3 User’s Guide and all accompanying hardware and documentation are copyrighted. Raymar-Telenetics does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
-
Page 4: Table Of Contents
TABLE of CONTENTS 1. STANDARDS ............Page 1 2. PRODUCT OVERVIEW........Page 2 3. GENERAL PRODUCT SPECIFICATIONS..Page 3 4. POWER MODES..........Page 4 5. MODEM SPECIFICATIONS......Page 5 6. POWER CONNECTIONS........Page 6 7. SERIAL DATA PORT PIN-OUTS ....Page 7 8. DIP SWITCH SETTINGS ........Page 8 9. -
Page 5: Standards
1. STANDARDS All Raymar-Telenetics dial-up modems are designed to meet the following Standards: USA: FCC Part 15, Class A and Part 68 Canada: DOC Standards CS-01, CS-02 and CS-03 CANADIAN DEPARTMENT OF COMMUNICATIONS NOTICE The Canadian Department of Communications (DOC) label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. -
Page 6: Product Overview
The MIU PowerPort can be powered from a range of AC and DC power sources: +5 VDC, 12 VDC Battery, 7 to 16 VAC or 8 to 16 VDC. An optional 120 VAC wall transformer is available from Raymar-Telenetics. Low Power: The MIU PowerPort dial modems can be configured to enter into a “power down”... -
Page 7: General Product Specifications
3. GENERAL PRODUCT SPECIFICATIONS Dimensions: 5.3 x 4.0 x 1.375 inches Weight: 1 lb. Voltage Supply: 8 to 24 VDC 7 to 16 VAC, 50/60 Hz Optional Wall Transformer: 115 VAC, 50/60 Hz Current Requirements: (See Section 4 for Power Down Modes) MIU PowerPort 2.4: 9VDC 12VDC... -
Page 8: Power Modes
The power mode is set by a dip switch on the Pony Express Modem Module inside the MIU case. Factory default is Power On mode. Other modes are set at the factory before shipment if requested. Other modes can be set in the field ~ call Raymar-Telenetics for an instruction sheet. 0049-0300-XXX MIU/Power Port Series –... -
Page 9: Modem Specifications
MODEM SPECIFICATIONS MIU2.4 MIU9.6 MIU14.4 MIU28.8 Standards V.22bis V.22bis V.32bis V.34 V.22 V.22 V.32 V.32bis Bell212A Bell212A V.22bis V.32 Bell 103 Bell 103 V.22 V.22bis Bell212A V.22 Bell 103 Bell212A Bell 103 Modem Line 2400bps 2400bps 14400bps 28800bps Speed 1200bps 1200bps 9600bps 19200bps... -
Page 10: Power Connections
POWER CONNECTIONS DC Power Jack, 2.0mm – This standard concentric jack is provided to attach an external power source in the range of 7 – 16 VAC or 8 – 24 VDC. The 2.0mm Jack connects through a full wave bridge so either polarity is acceptable from the DC source. -
Page 11: Serial Data Port Pin-Outs
SERIAL DATA PORT PIN-OUTS 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 7 of 26... -
Page 12: Dip Switch Settings
The Auto Reset feature is enabled and disabled by a dip switch on the modem module. Your MIU will have been shipped with the Auto Reset mode active, unless otherwise specified at the time of ordering. Please consult Raymar-Telenetics if you wish to open up your MIU to disable Auto Reset. -
Page 13: Outline Drawing & Mounting
12. OUTLINE DRAWING & MOUNTING Mounting Options: Part Number Description MIU/MTGK Surface Wall or Panel Mounting Kit MIU/RAIL MIU Din Rail Mounting Kit 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 9 of 26... -
Page 14: Modem Configuration
A summary of the Rockwell command set for your MIU modem is provided in documents 0049-1204-XXX, 0049-1205-XXX and 0049-1206-XXX. Unless otherwise specified at the time of order, your modem will have left the Raymar-Telenetics factory in the configuration detailed on the following pages. -
Page 15: Factory Configurtion
14. FACTORY CONFIGURATION ~ MIU2.4 ACTIVE PROFILE: B1 E1 L2 M1 Q0 V1 X4 Y0 &C1 &D0 &G0 &J0 &L0 &P0 &Q0 &R0 &S0 &X0 &Y0 S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:030 S08:002 S09:006 S10:014 S12:050 S14:AAH S16:00H S S18:000 S21:00H S22:76H S23:15H S25:005 S26:001 S27:40H S28:00H STORED PROFILE 0: B1 E1 L2 M1 Q0 V1 X4 Y0 &C1 &D0 &G0 &J0 &L0 &P0 &Q0... - Page 16 FACTORY CONFIGURATION ~ MIU9.6 ACTIVE PROFILE: B1 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3 &Q5 &R1 &S0 &T5 &X0 &Y0 S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:050 S08:002 S09:006 S10:014 S11:095 S12:050 S18:000 S25:005 S26:001 S36:007 S37:000 S38:020 S44:020 S46:138 S48:007 S95:000 STORED PROFILE 0: B1 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3...
- Page 17 FACTORY CONFIGURATION ~ MIU14.4 ACTIVE PROFILE: B1 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3 &Q5 &R1 &S0 &T5 &X0 &Y0 S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:050 S08:002 S09:006 S10:014 S11:095 S12:050 S18:000 S25:005 S26:001 S36:007 S37:000 S38:020 S44:020 S46:138 S48:007 S95:000 STORED PROFILE 0: B1 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3...
- Page 18 FACTORY CONFIGURATION ~ MIU28.8 ACTIVE PROFILE: B0 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D0 &G2 &J0 &K3 &Q5 &R1 &S0 &T4 &X0 &Y0 S00:001 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002 S07:030 S08:002 S09:006 S10:014 S11:255 S12:050 S18:000 S25:005 S26:001 S36:007 S37:000 S38:020 S46:138 S48:007 S95:000 STORED PROFILE 0: B0 E1 L1 M1 N1 Q0 T V1 W0 X4 Y0 &C1 &D0 &G2 &J0 &K3...
-
Page 19: Diagnostics
15. DIAGNOSTICS The following pages provide software and hardware techniques for diagnosing communication problems and thereby isolating the problem at either the local modem, the remote modem or the interconnecting line. The following AT&Tn commands form part of the CCITT V.54 protocol and can be used for diagnostic testing. - Page 20 &T2 NO FUNCTION &T3 PERFORM LOCAL DIGITAL LOOPBACK (See Figure 3) The modem must be in the command state with connection established when this command is issued, otherwise an ERROR result code occurs. The AT&T3 command establishes a loopback of received data, after demodulation, and sends it back to the distant end.
- Page 21 &T6 INITIATE REMOTE DIGITAL LOOPBACK (See Figure 4) The command is valid only if the modem is in the command state with a connection established. Configure the modem under test with an AT&T4 command so that it will honor a remote digital loopback request.
- Page 22 Enter AT&T7 at the local modem and it will send a digital loopback request to the remote modem. After the RDL acknowledgment signal is received from the remote modem, DSR is turned off (if &S1 is in effect), the on-line state is entered, an OK result code is sent to the DTE, and the test timer is set to the value in S18.
- Page 23 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 19 of 26...
- Page 24 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 20 of 26...
- Page 25 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 21 of 26...
- Page 26 ADDITIONAL TEST / DIAGNOSTICS COMMANDS RECEIVED SIGNAL LEVEL Returns a value (-dBm) which indicates the received signal level at modem DATA PUMP interface. This value is determined by the loss/gain of modem Telco Interface circuit ±dB at the Tip/Ring input to the modem. Typical value should be -25dBm to -35dBm for most Telco connections.
- Page 27 Other modem did not respond after many transmissions of the same message. Modem made 10 attempts then hung up. Protocol violation occurred. Compression failure. Note: Multiple occurrences may contribute to a NO CARRIER message; S86 records the first event that occurred. 0049-0300-XXX MIU/Power Port Series –...
- Page 28 NOTES 0049-0300-XXX MIU/Power Port Series – USER GUIDE 08/04/2010 Rev. A Page 24 of 26...
- Page 29 Raymar Information Technology, Inc., dba Raymar-Telenetics, warrants their products against defects in hardware, material and workmanship under normal use for one (1) year from the date of purchase. Raymar will, at no charge, either repair the product (with new or reconditioned parts), or replace it (with a new or reconditioned product).
- Page 30 Return Merchandise Authorization (RMA) Procedure Before returning any Raymar-Telenetics product, an RMA number must be obtained. The most convenient way to obtain an RMA number for a product purchased from Raymar-Telenetics is to call 1-800-747-1522 (+1-916-783-1951). When doing so, please have the following information...
