Raymar Telenetics MIU9.6FPD User Manual

Digital fast poll modem
Hide thumbs

Advertisement

Quick Links

Digital Fast Poll Modem
MIU9.6FPD
USER'S GUIDE
0049-0100-XX2
MIU9.6FPD – USERS GUIDE
06/22/2010
Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Telenetics MIU9.6FPD and is the answer not in the manual?

Questions and answers

Related Manuals for Raymar Telenetics MIU9.6FPD

Summary of Contents for Raymar Telenetics MIU9.6FPD

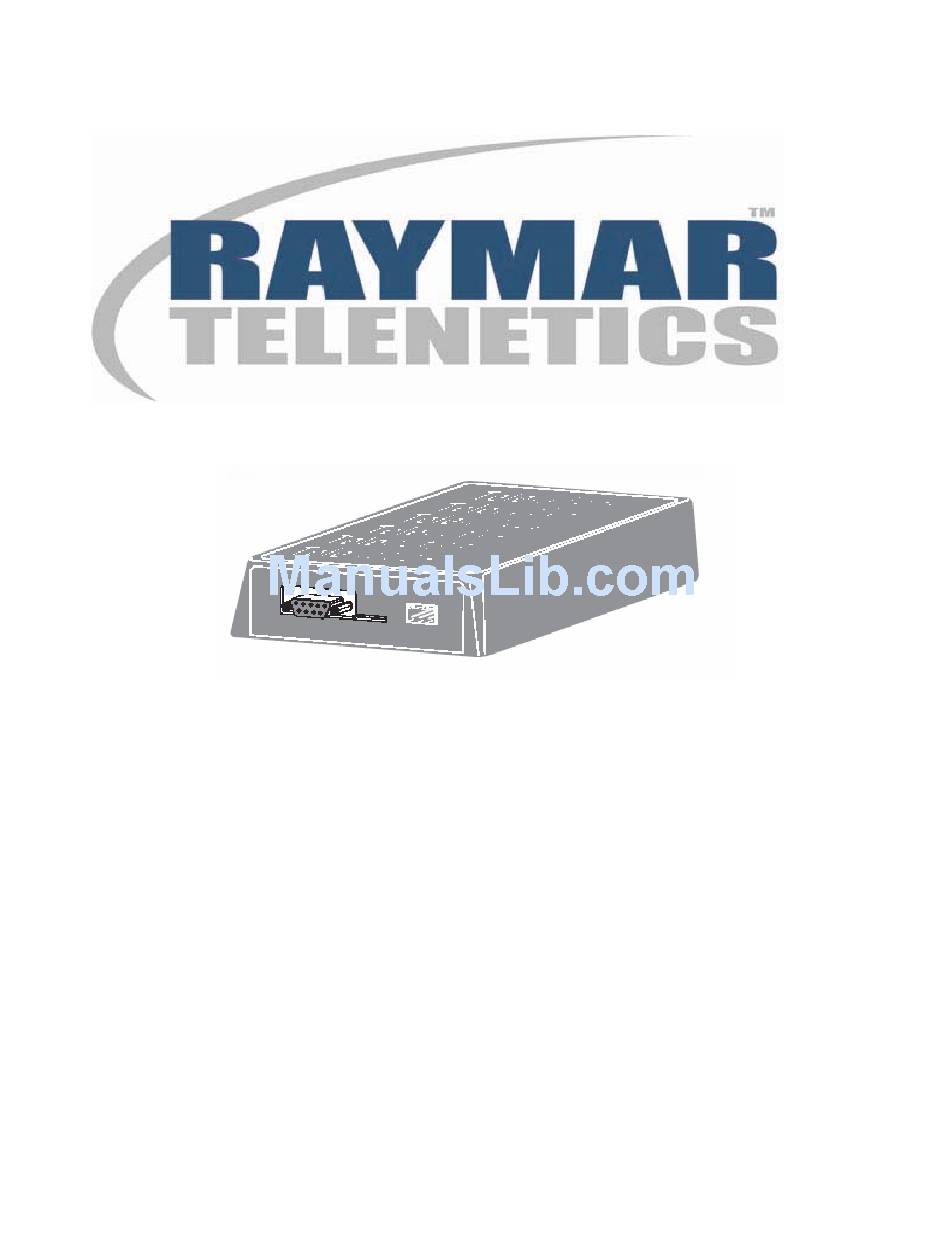

  • Page 1 Digital Fast Poll Modem MIU9.6FPD USER’S GUIDE 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A...
  • Page 2 Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, CA 95842 800-695-1951 Fax: 916-783-1952 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page i...
  • Page 3 User’s Guide and all accompanying hardware and documentation are copyrighted. Raymar-Telenetics does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

  • Page 4: Table Of Contents

    TABLE of CONTENTS 1. INTRODUCTION..........Page 1 2. INSTALLATION..........Page 6 3. APPENDIX A - TROUBLESHOOTING....Page 15 4. APPENDIX B - SPECIFICATIONS ....Page 18 5. APPENDIX C - COMPLIANCES.......Page 23 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page iii...

  • Page 5: Introduction

    The communication module consists of a Raymar-Telenetics Pony Express™ PE9.6FPD modem module. This User’s Guide is designed to let you get your MIU9.6FPD “up and running” as quickly as possible. It contains all the information you need to configure and install your MIU9.6FPD. It also contains troubleshooting information in the unlikely event you encounter a problem with your MIU9.6FPD.
  • Page 6 48 to 120 V AC/DC voltage input power supply Note: In this User’s Guide, MIU9.6FPD will be used collectively to refer to all models. If information pertains to certain models only, the appropriate model numbers in Table 1-1 will be used.
  • Page 7 FEATURES The MIU9.6FPD is specifically designed for harsh environments found in utility substations and industrial facilities. Though functionally similar to commercial modems, the MIU9.6FPD provides the following unique features that make it particularly well suited for utility and industrial applications.
  • Page 8 The MIU9.6FPD is designed for point-to-point and multipoint data communications. Figure 1-1 shows the MIU9.6FPD in a typical multipoint-with-repeater configuration. Figure 1-1. Sample Multipoint-with-Repeater Configuration There are a number of factors that can affect the MIU9.6FPD’s operation and performance. These include: Operating speed...
  • Page 9 Table 1-2 lists the operating distances for a single-channel MIU9.6FPD modem using 18 AWG, 24 AWG, and 26 AWG in a point-to-point configuration. Table 1-3 shows the same information for multipoint configurations. Table 1-2. Operating Distances for Point-to-Point Configurations Data...

  • Page 10: Installation

    This chapter describes how to install the MIU9.6FPD. Unpacking Your Hardware Your package should include at least one MIU9.6FPD modem or repeater. If your package contents are damaged or missing, please contact your place of purchase immediately. Additional Items You Need To use your MIU9.6FPD modem, you need the following additional items:...
  • Page 11 A female, 9-pin RS-232 connector on the left side, for connecting a standard DTE (RTU). A red LED between the RS-232 connector and power interface. Figure 2-1. Front View 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 7 of 25...
  • Page 12 Figure 2-2. Back View INSTALLATION SUMMARY The MIU9.6FPD installation involves the following steps: Finding a suitable location for the modem. See the section below. Configuring the modem module. Connecting to a transmission line.. Connecting to a voltage source. Optional: Connecting a DTE device.
  • Page 13 It should also let you view the red and green LEDs on the front panel. Note: Raymar-Telenetics offers a rack-mount version of this modem. Configuring the Modem Module You configure the modem module using the six DIP switches on the modem front panel and one jumper.
  • Page 14 PE9.6FPD. Table 2-2 describes the jumper settings. For your convenience, the bottom of your modem has a label that summarizes the jumper settings. 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 10 of 25...
  • Page 15 600 Ω Rx impedance. CONNECTING to a TRANSMISSION LINE The MIU9.6FPD has a transmission line interface on the front panel (see Figure 2-1): The single-channel standalone modem has one transmission line interface. The repeater has two transmission line interfaces. The left interface is for connection to a host modem and computer, while the right is for a repeater connection.
  • Page 16 Corresponds to This Signal… TB-B-pin 1 TB-B-pin 2 Tx− TB-B-pin 3 Rx− TB-B-pin 4 For communications to occur, the polarity of the transmit and receive lines from one MIU9.6FPD to another must connect as shown below: ⇒ ⇒ Tx− Rx− ⇒...
  • Page 17 MIU9.6FPD can be powered from a standard 120 VAC outlet. The valid power ranges for the MIU9.6FPD vary by model. Table 2-5 lists the power ranges for the MIU9.6FPD models. Figure 2-3 shows the connection to the MIU9.6FPD’s power interface.
  • Page 18 Figure 2-3. Voltage Connection to the Modem CONNECTING an RS-232 DEVICE The back panel of the MIU9.6FPD provides a female, 9-pin RS-232 connector (see Figure 2-2). This connector accepts a standard connection to a DTE (RTU), such as an IBM or compatible personal computer or VT100 terminal, that conforms to the pin assignments shown under “RS-232...

  • Page 19: Appendix A - Troubleshooting

    APPENDIX A – TROUBLESHOOTING In the unlikely event you encounter a problem using the MIU9.6FPD, refer to the troubleshooting information in this appendix. PROBLEM SOLVING Table A-1 offers troubleshooting solutions for modem problems. Table A-1. Troubleshooting Suggestions If… Perform These Procedures…...
  • Page 20 Figure A-1 shows the jumper and switch locations on the baseboard. Table A-1 shows the factory- set jumper and switch settings for the low-voltage baseboards (Models MIU9.6FPD-LV and MIU9.6FPD/R-LV). Table A-1 shows the factory-set jumper and switch settings for the standard- voltage baseboards (Models MIU9.6FPD and MIU9.6FPD/R).
  • Page 21 Pins 1 and 3 strapped. Switches 2 and 3 ON. Switches 1, 2, and 4 ON. Switch 3 OFF. LOOPBACK TEST Loopback Test for Single Channel Loopback Test for Repeater 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 17 of 25...

  • Page 22: Appendix B - Specifications

    APPENDIX B – SPECIFICATIONS GENERAL SPECIFICATIONS Dimensions Models: MIU9.6FPD-LV, MIU9.6FPD/R-LV, MIU9.6FPD, MIU9.6FPD/R Width: 4.0 inches Length: 5.5 inches Height: 1.4 inches Weight: 9.0 ounces Model: PE9.6FPD Width: 2.2 inches Length: 3.5 inches Height: 0.55 inches Weight: 1.5 ounces Voltage Supply Models: MIU9.6FPD-LV and MIU9.6FPD/R-L...
  • Page 23 ENVIRONMENTAL SPECIFICATIONS Power Supply Models: MIU9.6FPD-LV and MIU9.6FPD/R-LV Input Supply: 9.0 to 36.0 Volts, DC Power Consumption: MIU9.6FPD-LV 1.0 Watt maximum MIU9.6FPD/R-LV 1.2 Watts maximum Model: MIU9.6FPD Input Supply: 48 to 120 V AC/DC Power Consumption: 1.0 Watt maximum Temperature and Humidity Operating Temperature: -40ºC to +85ºC...
  • Page 24 INTERFACE CONNECTOR PIN ASSIGNMENTS Model MIU9.6FPD-LV and Model PE9.6FPD Analog Interface Pin Number Corresponding Signal TB-A-pin 1 TB-A-pin 2 Tx− TB-A-pin 3 Rx− TB-A-pin 4 MIU9.6FPD/R-LV and MIU9.6FPD/R Analog Interface Pin Number Corresponding Signal TB-B-pin 1 TB-B-pin 2 Tx− TB-B-pin 3 Rx−...
  • Page 25 RS-232 (RTU) Interface DB9 (9-Pin) Connector Pin Number Input/Outp Signal Name ⎯ ⎯ Used DB25 (25-Pin) Connector Pin Number Input/Outp Signal Name ⎯ ⎯ 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 21 of 25...
  • Page 26 PE Module 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 22 of 25...

  • Page 27: Appendix C - Compliances

    TV reception. The user is cautioned that changes and modifications to this equipment without the approval of the manufacturer could void the user’s authority to operate this equipment. 0049-0100-XX2 MIU9.6FPD – USERS GUIDE 06/22/2010 Rev. A Page 23 of 25...
  • Page 28 Raymar Information Technology, Inc., dba Raymar-Telenetics, warrants their products against defects in hardware, material and workmanship under normal use for one (1) year from the date of purchase. Raymar will, at no charge, either repair the product (with new or reconditioned parts), or replace it (with a new or reconditioned product).
  • Page 29 Return Merchandise Authorization (RMA) Procedure Before returning any Raymar-Telenetics product, an RMA number must be obtained. The most convenient way to obtain an RMA number for a product purchased from Raymar-Telenetics is to call 1-800-747-1522 (+1-916-783-1951). When doing so, please have the following information...
