Data Interface
Data is interfaced via a DB25 female connector.
Pin 1
GRD
Signal Ground
Pin 2
TXD
Transmit Data
Pin 3
RXD
Receive Data
Pin 4
RTS
Request to Send
Pin 5
CTS
Clear to Send
Pin 6
DSR
Data Set Ready
Pin 7
GRD
Ground
Pin 8
DCD
Carrier Detect
Pin 10
(Alternate power input +5VDC)
use switch
Pin 20 DTR
Data Terminal Ready
Pin 22 RI
Ring Indicate
LED Indicators
DCD
Data Carrier Detect
RTS
Request to Send
CTS
Clear to Send
TXD
Transmit Data
RXD
Receive Data
RI
Ring Indicate
PWR
Power indicator (green)
Raymar Information Technology, Inc.
7325 Roseville Road
Sacramento, CA 95842
(800) 695-1951
www.raymarinc.com
Page 4 of 4

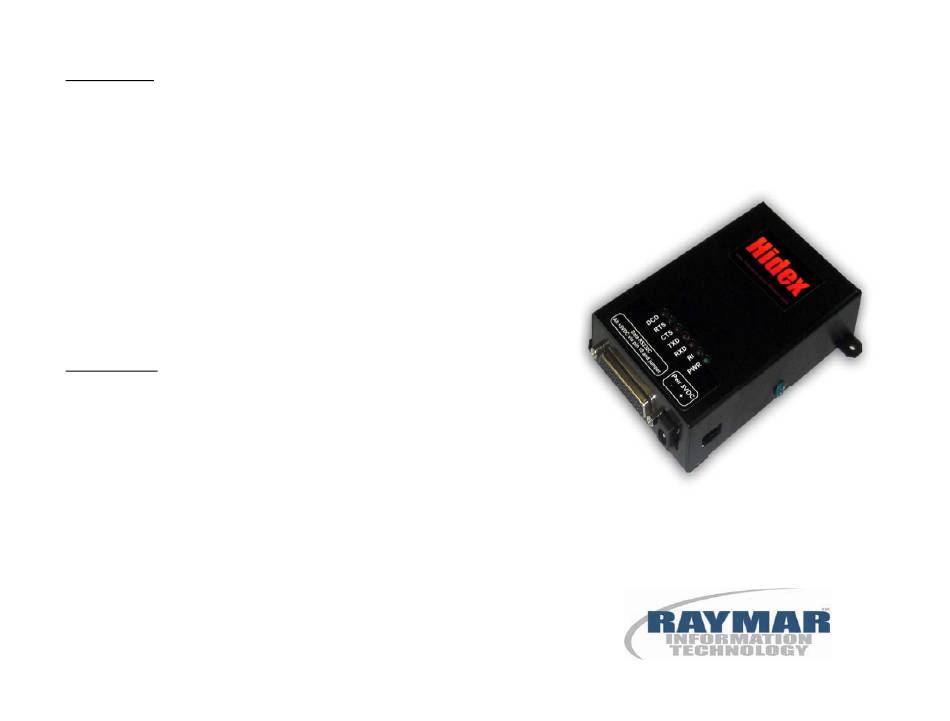

HIDEX
QUICK START GUIDE
0049-3400-XX1
Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raymar HIDEX
Summary of Contents for Raymar HIDEX
- Page 1 LED Indicators Data Carrier Detect Request to Send Clear to Send Transmit Data Receive Data Ring Indicate Power indicator (green) Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, CA 95842 (800) 695-1951 www.raymarinc.com Page 4 of 4 0049-3400-XX1 Rev. A...
- Page 2 There is a power input select switch on the side of Hardware Setup the modem nearest the power connector. The Setup Procedure: switch is flush or recessed; to select the power 1. Use an RS-232 cable to connect the DB25 connector input, slide the switch away from the connector (J1) on the modem to a PC serial rear panel.
