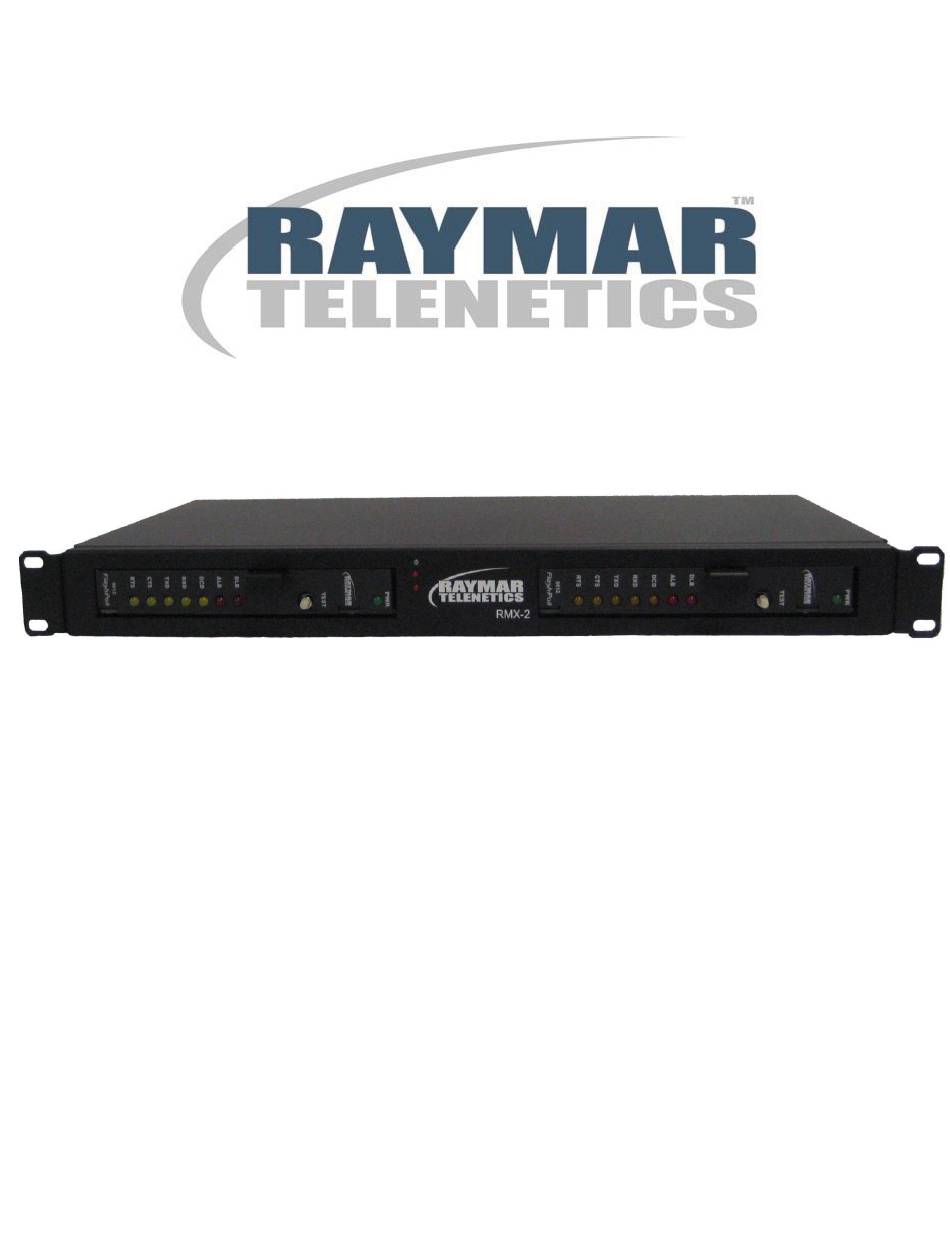

- Page 1 RMX-2 Installation and Operation Guide RMX – USER GUIDE 0049-1650-001 1/02/2014 Rev. E...
- Page 2 Raymar Information Technology, Inc. 7325 Roseville Road Sacramento, CA 95842 800-695-1951 Fax: 916-783-1952 www.raymar-telenetics.com RMX – USER GUIDE 0049-1650-001 Rev. C Page i...
- Page 3 User’s Guide and all accompanying hardware and documentation are copyrighted. Raymar-Telenetics does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
-
Page 4: Table Of Contents
TABLE of CONTENTS 1. Chapter 1 - Introduction ........Page 1 2. Chapter 2 - Installation ........Page 4 3. Chapter 3 - Operation ........... Page 6 4. Chapter 4 - Maintenance ........Page 7 5. Appendix A - Specifications ........ Page 8 6. -
Page 5: Chapter 1 - Introduction
Chapter 1 Introduction he Raymar-Telenetics RMX is a 2-slot 1U modem rack chassis. It measures 17 inches wide by 1.75 inches high and 8.5 inches deep, and mounts in a standard 19- or 23-inch rack. The RMX comes in AC and DC configurations with optional redundant power. This guide covers both versions. - Page 6 RMX – USER GUIDE 0049-1650-001 1/02/2014 Rev. E Page 2 of 14...
- Page 7 Back Panel Interface Connectors All DTE, Telco and power connections are made at the back panel of the RMX. The DTE connectors are: Individual 25-pin connectors one for each PC card (standard) The Telco connectors are: Individual 8-pin modular jacks one or two for each PC card (standard) Telephone Line Interfaces The RMX is FCC certified for connection to the dial-up Public Switched Telephone Network (PSTN).
-
Page 8: Contact Information
Contact Information For more information about Raymar-Telenetics RMX, or other Raymar-Telenetics solutions, contact us using any of the following methods. Voice Calls We welcome your calls at (800) 747-1522 Monday through Friday, from 7:00 am to 5:00 pm Pacific Time. -
Page 9: Chapter 2 - Installation
Unpacking and Inspecting the Equipment Unpack the equipment and inspect it for any damage that may have occurred in shipment. If you see any damage or if items are missing, contact Raymar-Telenetics. Keep the shipping container and packing material for future shipment. -
Page 10: Installation Procedures
Installation Procedures Service personnel should be familiar with the complete installation procedure before installing the RMX. Required Tools and Equipment Special tools or test equipment are not required for installation. CAUTION: To prevent damage to enclosure components from overheating, ensure clearances of 1 ¾-inch top and bottom between mounted enclosures. -
Page 11: Chapter 3 - Operation
Chapter 3 Operation The RMX accepts leased line, PSTN, and DDS-type modems. Leased-line modems operate on conditioned or unconditioned leased lines. PSTN-type modems operate on the dial-up network and have features that allow establishment of dial-up circuits and data transfer. Some modems can operate on either leased lines or PSTN. -
Page 12: Chapter 4 - Maintenance
This appendix provides maintenance information for PC cards and power modules. PC Cards If a PC card becomes inoperative, replace it. Field repair is not recommended. Contact Raymar- Telenetics for instructions on repairs and replacement (see “Contact Information” on page 12). -
Page 13: Appendix A Specifications
1.75 inches (4.4 cm) Height: 6 lbs (2.72 Kg) shipped Weight: Input voltage 90-265 VAC AC Power 50/60 Hz (RMX-2 AC): 150 watts per rack Wattage DC Power Input Voltage 24-53 VDC / 90-265 VDC** (RMX-2 DC): Heat Load 510 BTU/Hr (fully loaded rack). - Page 14 OTES RMX – USER GUIDE 0049-1650-001 1/02/2014 Rev. E Page 10 of 14...
-
Page 15: Appendix B - Telephone/Power Line Cables
Appendix B Telephone/Power Line Cables Figure D-1 lists the functions of the modular jacks on the back panel of the RMX. Figure D-2 lists the function of the modular jacks on the back panel of RMX-R redundant power supply model. NOTE: This figure is for illustrative purposes only. - Page 16 RS-232 (DTE) Interface DB25 Pin Signal Name Modem Input / Output Description — Earth Ground Input Transmit Data Output Receive Data Input Request to Send Output Clear to Send Data Set Ready Output (Modem Ready) — Signal Ground Output Data Carrier Detected TXCLK Output Transmit Clock (DCE)
- Page 17 The telephone company may change technical operations or procedures affecting your equipment. You will be notified of changes in advance to give you ample time to maintain uninterrupted telephone service. If you experience trouble with this telephone equipment, please contact: Raymar-Telenetics 7325 Roseville Road Sacramento, California 95842...
-
Page 18: Limited Warranty Information
Raymar Information Technology, Inc., dba Raymar-Telenetics, warrants their products against defects in hardware, material and workmanship under normal use for one (1) year from the date of purchase. Raymar will, at no charge, either repair the product (with new or reconditioned parts), or replace it (with a new or reconditioned product). -
Page 19: Rma Procedures
Return Merchandise Authorization (RMA) Procedure Before returning any Raymar-Telenetics product, an RMA number must be obtained. The most convenient way to obtain an RMA number for a product purchased from Raymar-Telenetics is to call 1-800-747-1522 (+1-916-783-1951). When doing so, please have the following information...
