Summary of Contents for Gefen GTV-WHD-60G

  • Page 1: Wireless Extender

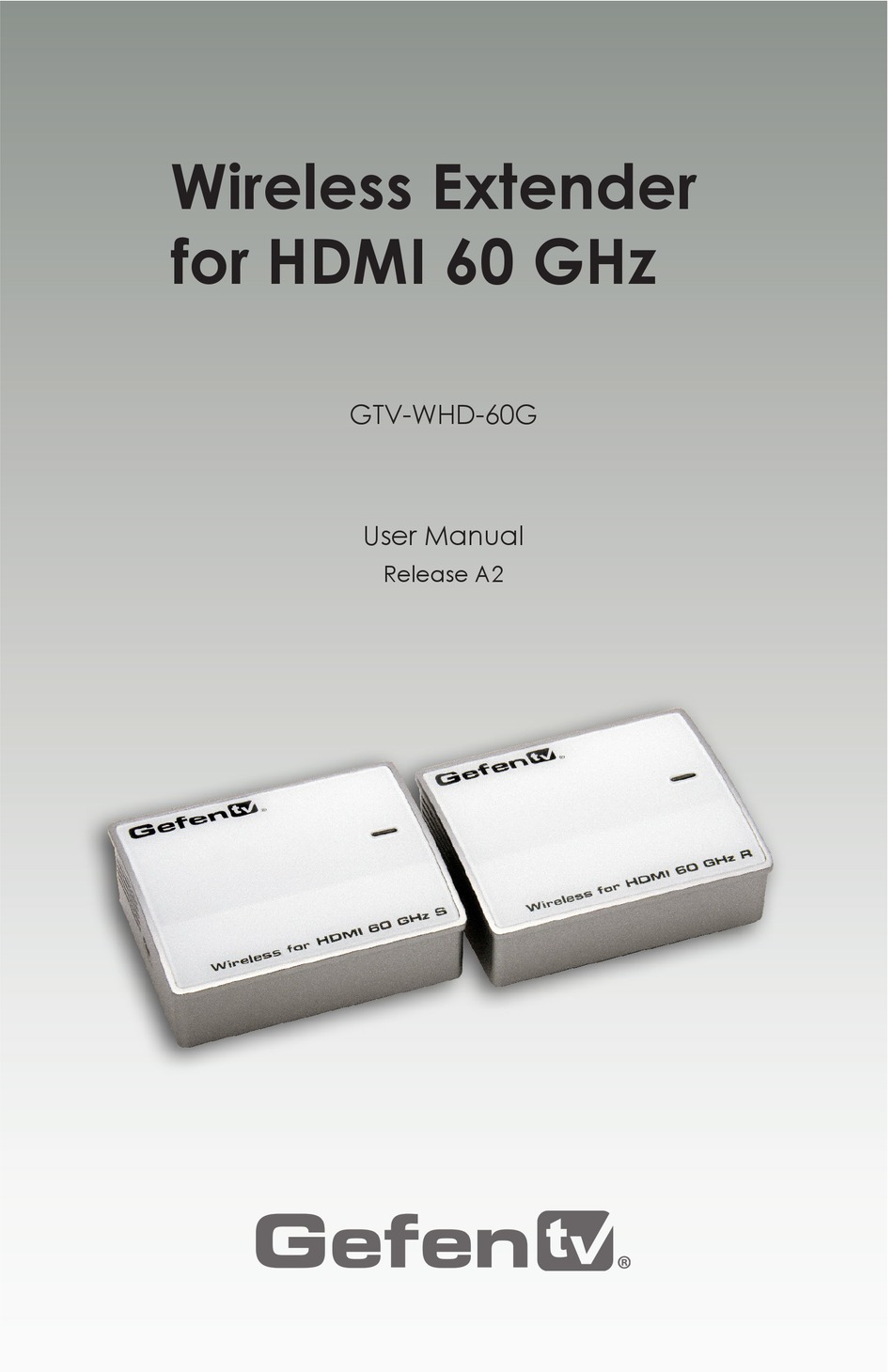

    Wireless Extender 3GSDI Audio Embedder for HDMI 60 GHz GTV-WHD-60G User Manual Release A2...
  • Page 2: Important Safety Instructions

    Wireless for HDMI 60 GHz Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3: Warranty Information

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 4 Wireless for HDMI 60 GHz is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
  • Page 5: Federal Communication Commission Interference Statement

    3GSDI Audio Embedder Wireless for HDMI 60 GHz Operating Notes • Pairing is not required when a Sender and Receiver unit are purchased as a pair. However, if either a Sender and Receiver unit is purchased separately, then the units will require pairing.
  • Page 6 Wireless for HDMI 60 GHz Operating Notes Reorient or relocate the device(s) causing the interference. Increase the separation between the devices. Connect equipment into an outlet on a circuit different from that to which the device experiencing interference is connected. Consult the dealer or an experienced radio/TV technician for help.
  • Page 7: Packing List

    Packing List The Wireless for HDMI 60 GHz ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x Wireless for HDMI 60 GHz (Sender) •...
  • Page 8: Table Of Contents

    3GSDI Audio Embedder Wireless for HDMI 60 GHz Table of Contents Getting Started Panel Layout ......................2 Sender unit ....................2 Receiver unit ....................3 Installation ......................4 Connecting the Wireless for HDMI 60 GHz ........... 4 Sample Wiring Diagram ................5 Operating the Wireless for HDMI 60 GHz The Sender / Receiver Pair ...................
  • Page 11: 01 Getting Started

    Wireless Extender for HDMI 60 GHz 01 Getting Started Panel Layout ......................2 Sender unit ....................2 Receiver unit ....................3 Installation ......................4 Connecting the Wireless for HDMI 60 GHz ........... 4 Sample Wiring Diagram ................5...
  • Page 12: Panel Layout

    Getting Started Panel Layout Sender unit Name Description Service This port is for factory use only. Power indicator This LED indicator will glow solid blue or flash, depending upon the status of the Sender unit. See The Sender / Receiver Pair for more information.
  • Page 13: Receiver Unit

    Getting Started Panel Layout Receiver unit Name Description Service This port is for factory use only. Power indicator This LED indicator will glow solid blue or flash, depending upon the status of the Sender unit. See The Sender / Receiver Pair for more information.
  • Page 14: Installation

    Getting Started Installation Page Title Connecting the Wireless for HDMI 60 GHz Connect an HDMI cable from the Hi-Def source to the HDMI In connector on the Sender unit. Connect an HDMI cable from the HDMI Out connector to an HDCP compliant HDTV display (or other sink device).
  • Page 15: Sample Wiring Diagram

    Getting Started Page Title Installation Sample Wiring Diagram HDMI CABLE Hi-Def Source Sender (Up to 33 feet) Receiver Hi-Def Display GTV-WHD-60G page | 5...
  • Page 17: Operating The Wireless For Hdmi 60 Ghz

    Wireless Extender for HDMI 60 GHz 02 Operating the Wireless for HDMI 60 GHz The Sender / Receiver Pair ................... 8 Using Multiple Units....................9 Placement ..................... 9 Pairing ........................11 Pairing a Sender and Receiver unit ............11 Pairing multiple Sender units to a Receiver unit ......... 11 Performing a Factory-Reset ................
  • Page 18: The Sender / Receiver Pair

    Operating the Wireless for HDMI 60 GHz The Sender / Receiver Pair Once a solid audio / video connection has been established by both the Sender and Receiver unit of the Wireless for HDMI 60 GHz, the Power LED indicator on the top of the Sender and Receiver unit should glow bright blue.
  • Page 19: Using Multiple Units

    Operating the Wireless for HDMI 60 GHz Using Multiple Units Placement Up to 5 Sender-Receiver pairs can be used within a room. When using two or more Sender-Receiver pairs in a room, the following requirements must be met. • Each Sender and Receiver unit must be at least 2 meters apart. •...
  • Page 20 Operating the Wireless for HDMI 60 GHz Using Multiple Units • If the Sender-Receiver pair is not facing one another, then it is important that walls are present in the operating environment. The walls will act as a waveguide and allow the radio waves to be communicated between the Sender and Receiver unit.
  • Page 21: Pairing

    Operating the Wireless for HDMI 60 GHz Pairing When the Sender and Receiver units are purchased together, pairing is not required. However, if either a Sender or Receiver unit is purchased separately, then the units will require pairing. Pairing a Sender and Receiver unit IMPORTANT: If more than one Sender-Receiver pair is being used in the room, make sure to power-down all other Sender-Receiver pairs before continuing with the pairing process.
  • Page 23: 03 Appendix

    Wireless Extender for HDMI 60 GHz 03 Appendix Supported Video and Audio Formats ..............14 Firmware Upgrade Procedure ................16 Installing the Software ................. 16 Upgrading the Firmware ................17 Specifications ...................... 21...
  • Page 24: Supported Video And Audio Formats

    Appendix Supported Video and Audio Formats Table 3.1 - Supported Video Formats Resolution Timing (Hz) Color Space Sampling Bits / Pixel 480i 59.94 / 60 YCbCr 4:2:2 24 / 30 4:4:4 4:4:4 480p 59.94 / 60 YCbCr 4:2:2 24 / 30 4:4:4 4:4:4 576i...
  • Page 25 Appendix Supported Video and Audio Formats Resolution Timing (Hz) Color Space Sampling Bits / Pixel 4:4:4 24 / 30 WVGA SVGA SXGA WSXGA+ Table 3.2 - Supported 3D Formats Type Resolution Timing (Hz) Frame Packing 1080p 23.98 / 24 720p 50 / 59.94 / 60 Top - Bottom 1080p...
  • Page 26: Firmware Upgrade Procedure

    • Firmware files Installing the Software Download the installation software and firmware files from the Gefen Web site. Extract the files from the .ZIP file to the desired folder. Locate the M3RTUpgradeInstaller.msi file. Right-click on the file and select Run as administrator from the context menu.
  • Page 27: Upgrading The Firmware

    Appendix Firmware Upgrade Procedure Upgrading the Firmware Connect a USB-to-Micro USB cable between the computer and the Receiver unit. Make sure that the Sender unit is powered. NOTE: The order in which the Sender and Receiver unit is upgraded does not matter. We are arbitrarily beginning with the Receiver unit.
  • Page 28 Appendix Firmware Upgrade Procedure Click the Yes button to launch the application. If the USB cable is not connected between the Receiver unit and the computer, the following dialog will be displayed: Click OK to dismiss the dialog. The current version of the Receiver firmware is reported within the Software Version group, as highlighted in yellow: page | 18...
  • Page 29 Appendix Firmware Upgrade Procedure Click the Browse... button and select the firmware for the Receiver unit. The Receiver unit will contain “sink” as part of the filename. The Sender unit will contain “source” as part of the filename. Click the Upgrade button. The following dialog will be displayed: Click the Yes button to continue with the upgrade process.
  • Page 30 Appendix Firmware Upgrade Procedure 11. Once the upgrade process is complete, the following dialog will be displayed: 12. Click the OK button to complete the upgrade process. 13. Repeat steps 5 - 12 for the Sender unit and for each Sender and Receiver unit within the system.
  • Page 31: Specifications

    Appendix Specifications Supported Formats Resolutions (max.) • 1080p Full HD Audio • Linear PCM • DTS-HD Master Audio™ • Dolby® TrueHD Electrical Frequency • 60 GHz Maximum Pixel Clock • 165 MHz Antenna Type (Sender / Receiver) • 24-Antenna Array Power Indicator (Sender / Receiver) •...
  • Page 32 Stretch It, Switch It, Split It. Gefen’s Got It. ® 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com This product uses UL or CE listed power supplies.
