Summary of Contents for Gefen GTV-HDBT-CAT5

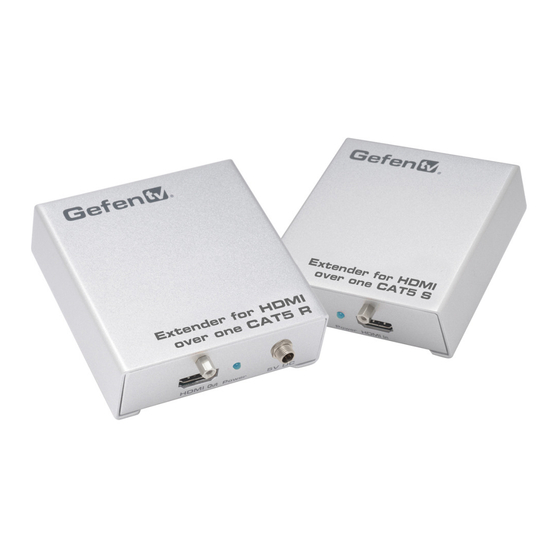

- Page 1 ® ® 1080P Extender for HDMI over one CAT5 GTV-HDBT-CAT5 User Manual gefentv.com...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Extender for HDMI over one CAT5 is a trademark of Gefen, LLC HDMI, the HDMI logo, and High-Defi...
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting the Extender for HDMI over one CAT5 Wiring Diagram Network Cable Wiring Diagram 10 Wall Mounting Instructions 11 Specifications 12 Warranty... -
Page 5: Introduction
INTRODUCTION Congratulations on your purchase of the Extender for HDMI over one CAT5. Your complete satisfaction is very important to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE EXTENDER FOR HDMI OVER ONE CAT5 • CAT-5 or CAT-6 cables should not exceed 230 feet (70 meters). • Shielded (STP) CAT-5 or CAT-6 is recommended. However, unshielded (UTP) CAT-5 or CAT-6 is acceptable. NOTE: Shielded cable has an advantage by providing immunity to Electromagnetic Interference (EMI) from cell phones and A/C motors. -
Page 7: Features
FEATURES HDMI Features Supported • 3DTV pass-through • Dolby® TrueHD, DTS-HD® Master Audio™, and PCM digital audio up to 7.1 channels • Deep Color • Lip Sync pass-through • CEC pass-through Features • Extends HDMI up to 230 feet (70 meters) using one CAT-5e (or better) cable. -
Page 8: Sender Unit Layout
SENDER UNIT LAYOUT Front Back... -
Page 9: Sender Unit Descriptions
SENDER UNIT DESCRIPTIONS Link Connects the Sender to the Receiver unit using CAT-5e (or better) cabling. 5V DC Connect the included 5V DC locking power supply to this connector. Only use the power supply shipped with this unit. Power This LED will glow bright blue once the included 5V DC locking power supply has been properly connected to the unit and the locking power supply has been connected to an available wall outlet. -
Page 10: Receiver Unit Layout
RECEIVER UNIT LAYOUT Front Back... -
Page 11: Receiver Unit Descriptions
RECEIVER UNIT DESCRIPTIONS Link Connects the Receiver unit to the Sender unit using CAT-5 (or better) cabling. HDMI Out Connect an HDTV to this HDMI port. Please see the Features section on page 3 for supported HDMI features. Power This LED will glow bright blue once the included 5V DC locking power supply has been properly connected to the unit and the locking power supply has been connected to an available wall outlet. -
Page 12: Connecting The Extender For Hdmi Over One Cat5
The LED on both the Sender and Receiver will turn bright blue, indicating that both units are powered. Wiring Diagram for the Extender for HDMI over one CAT5 CAT5 CABLE ® HDMI CABLE Hi-Def Source Receiver Sender HD Display GTV-HDBT-CAT5... -
Page 13: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White... -
Page 14: Wall Mounting Instructions
WALL MOUNTING INSTRUCTIONS The GefenTV Extender for HDMI over one CAT5 should be mounted vertically on a wall or inside / outside a cabinet with wood / drywall screws as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for connection and disconnection of the HDMI cable. -
Page 15: Specifications
SPECIFICATIONS Maximum Pixel Clock................225 MHz Video Input Connector (Sender)......(1) HDMI Type-A, 19-pin, female Video Output Connector (Receiver).....(1) HDMI Type-A, 19-pin, female Link Connectors (Sender / Receiver).........(1) RJ-45, shielded Power Indicators (Sender / Receiver).............LED (blue) Power Supplies................(2) 5V DC, locking Power Consumption..............10W per unit (max.) Operating Temperature ..........+32 to +104 °F (0 to +40 °C) Dimensions (W x H x D)......3.4”... -
Page 16: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 20 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com This product uses UL or CE listed power supplies.
