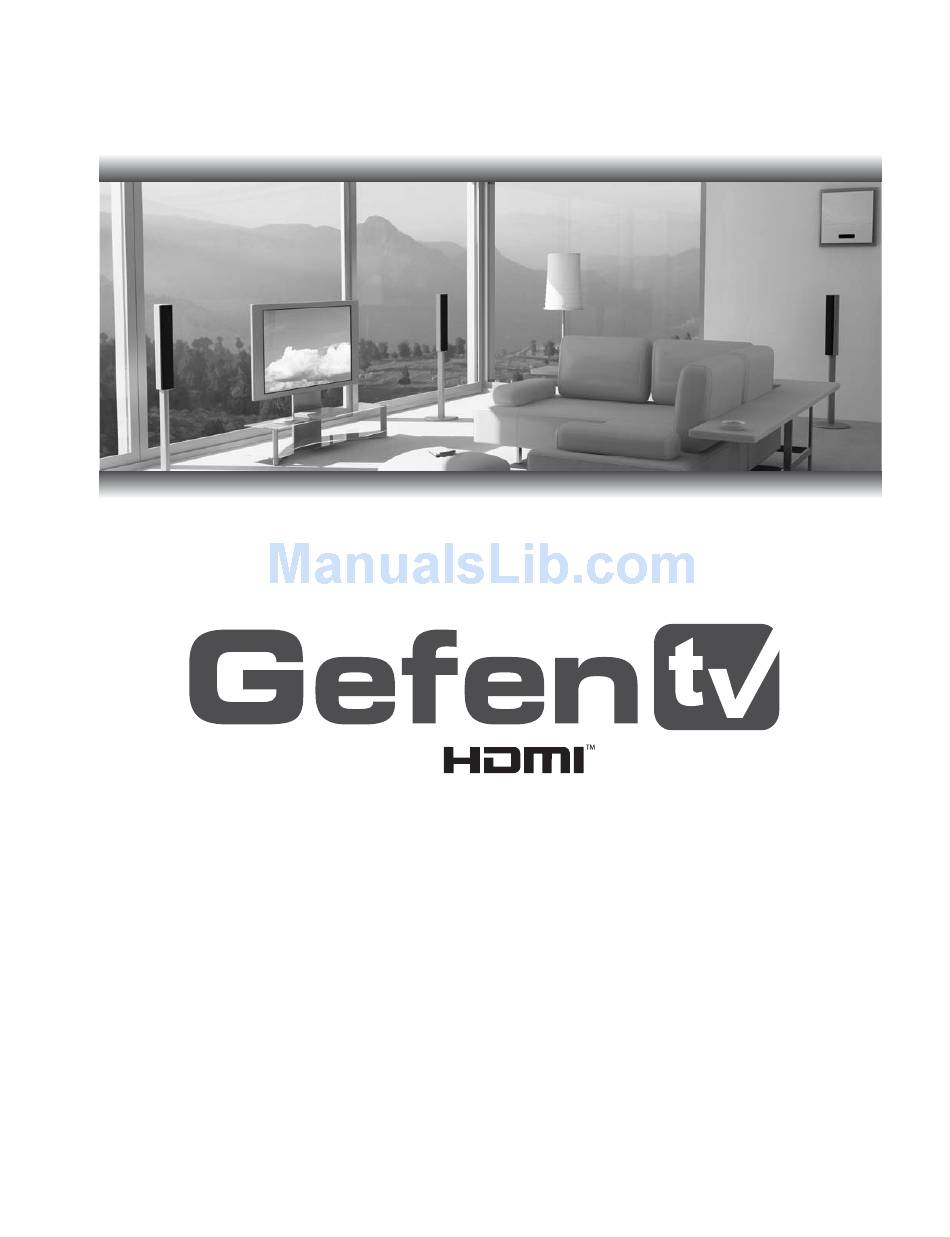

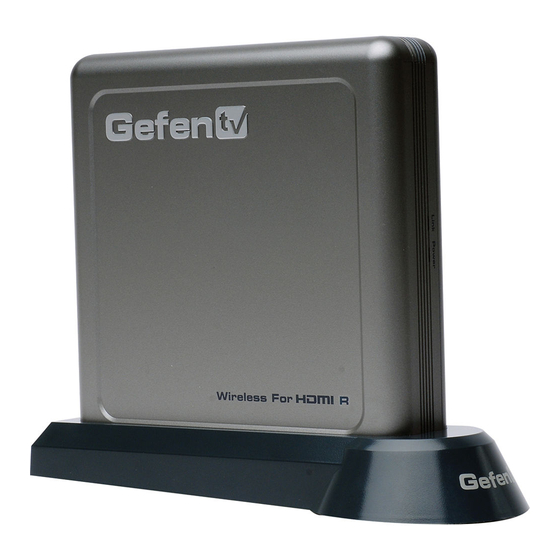

  • Page 1 ® Wireless for Extender GTV-WHDMI User Manual www.gefentv.com...
  • Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Wireless for HDMI is a trademark of Gefen LLC © 2011 Gefen, LLC. All rights reserved.

  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The Wireless For HDMI Using the Vertical Stand 10 Specifi cations 11 Warranty...

  • Page 4: Introduction

    Gefen TV Gefen TV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware.

  • Page 5: Operation Notes

    • Maximum supported resolution is 1080p at 30Hz • Gefen recommends placing both units into the provided stands to help produce the strongest possible transmission signal. • When using the units in Broadcast Mode HDCP encrypted material cannot be used.

  • Page 6: Features

    FEATURES Features • Fully HDMI 1.2 compliant • HDCP compliant (Unicast mode only) • CEC protocol pass-through supported • Multiple remote extension locations (up to 10 maximum) when using Broadcast Mode • Real-time un-compressed audio/video; Real-time compressed audio is embedded within the HDMI output stream •...

  • Page 7: Sender Panel Layout

    SENDER PANEL LAYOUT Front Panel Back Panel...

  • Page 8: Sender Panel Descriptions

    LED means that the connection has been established and the audio / video is about to be passed over from Sender to Receiver. A steady LED means that the whole set of GTV-WHDMI units are on proper operation and there is picture showing on the display connected to the Receiver unit.

  • Page 9: Receiver Panel Layout

    RECEIVER PANEL LAYOUT Front Panel Back Panel...

  • Page 10: Receiver Panel Descriptions

    LED means that the connection has been established and the audio / video is about to be passed over from Sender to Receiver. A steady LED means that the whole set of GTV-WHDMI units are on proper operation and there is picture showing on the display connected to the Receiver unit.

  • Page 11: Connecting And Operating The Wireless For Hdmi

    CONNECTING AND OPERATING THE WIRELESS FOR HDMI How to Connect the Wireless for HDMI Connect the source device to the Wireless for HDMI sender input using the supplied HDMI cable. Use a DVI to HDMI cable/adapter when using a DVI source device.

  • Page 12: Using The Vertical Stand

    USING THE VERTICAL STAND A vertical stand is included for placing the each main unit in an upright position. Vertical orientation is preferred because of the way that the radio waves are transmitted/received. Remove the main units and the stands from the packaging. To place a main unit into a stand, fi...

  • Page 13: Specifi Cations

    SPECIFICATIONS Frequency band range ..............5.1 - 5.8 GHz HDMI Versions Supported..............v1.2a, 1.2, 1.1 CEC Protocol Support: ..............Pass-Through Supported Resolutions: 640x480, 800x600, 1024x768, 480i, 480p, 576i, 576p, 720p, 1080i,1366X768, and 1080p@30Hz Distance Rating ..........100 feet( line-of-sight not required) Digital A/V Output............HDMI (Type A 19-pin female) Analog A/V Outputs..........

  • Page 14: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 15 Rev B9 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com This product uses UL listed power supplies.
