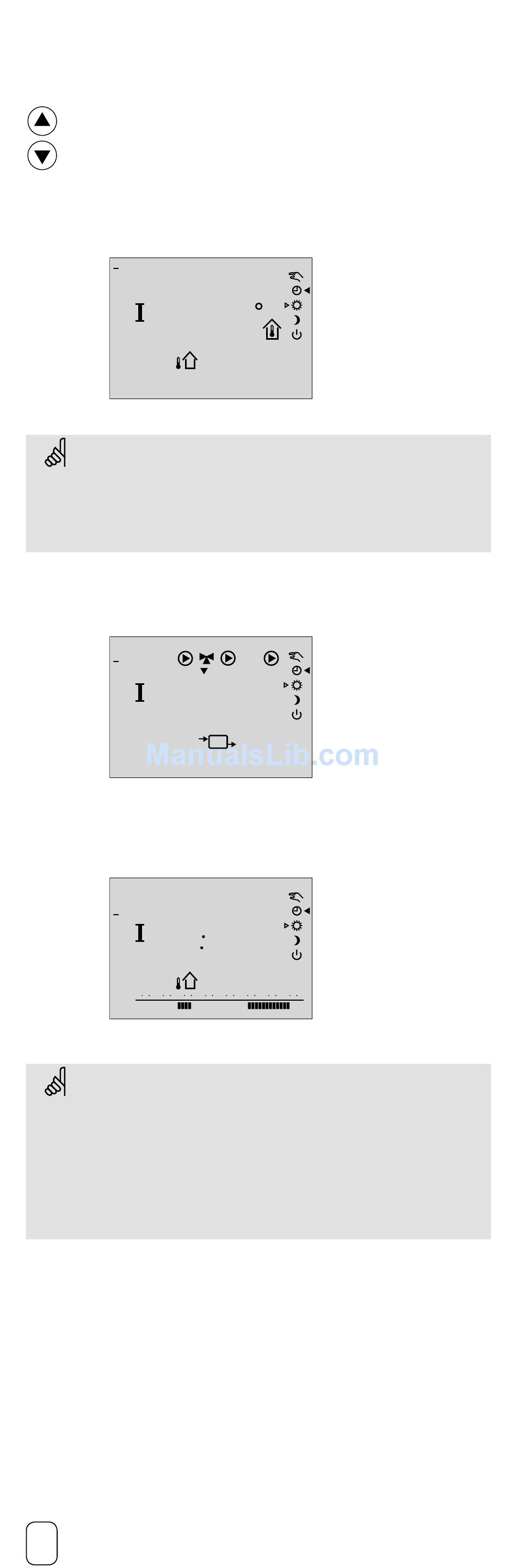

Choose your favorite display
(circuit I)
Choose the display - A, B, or C - for daily
operations.
Room temperature - display A
Line
A
Circuit
Outdoor
temp.
The display will show the room temperature if a room
temperature sensor, a room panel or a remote control is
installed. If not, two bars will be shown.
System information - display B
State of controlled components
Line
B
Circuit
Flow
temp.
Today's schedule - display C
Line
C
Circuit
Outdoor
temp.
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is short-
circuited.
