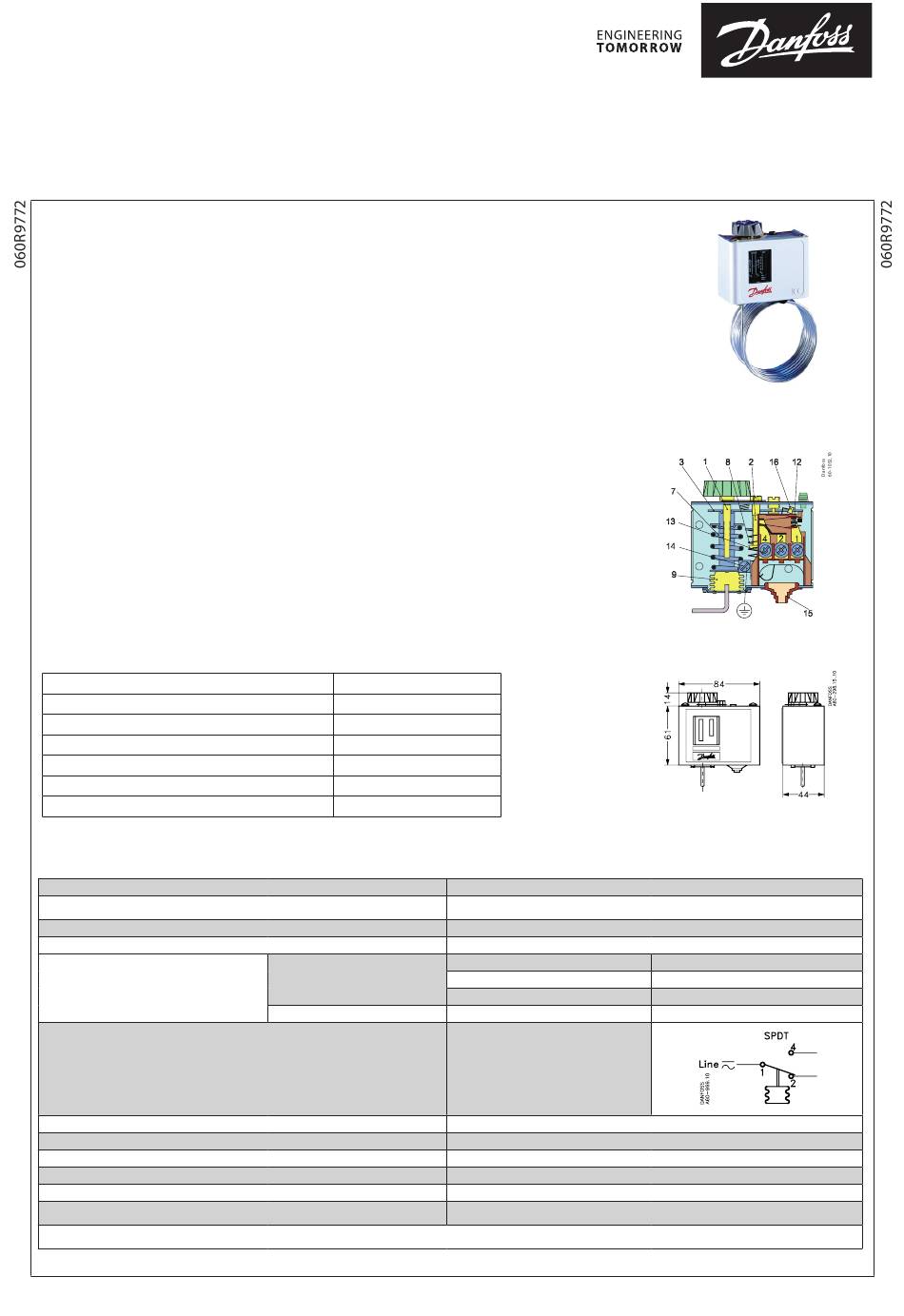

Danfoss KP61 Installation Manual

Installation Guide

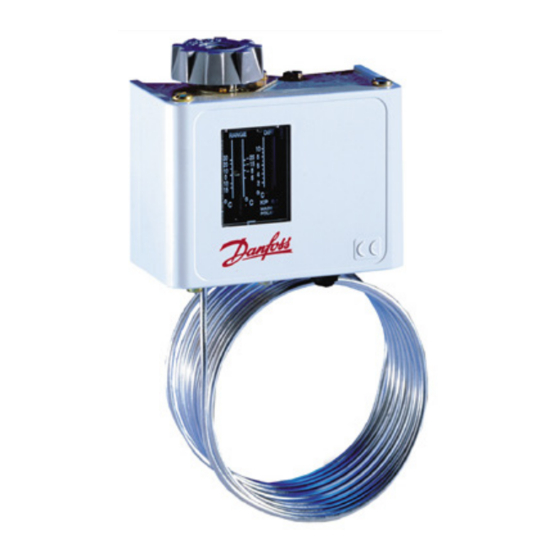

KP Temperature Switch (Thermostat)
KP61 type
Product Data
Name: KP temperature switch (thermostat),
KP61 type
Manufacturer
Danfoss Poland Sp. z o.o.
5 Chrzanowska, 05-825 Grodzisk Mazowiecki, Poland.
Product Application
Temperature switches are used for regulating temperature
in heating, ventilation and air conditioning systems. They
also function as devices for frost or overheating protection.
Design and Function
1. Temperature setting spindle
2. Differential setting spindle
3. Main arm
7. Main spring
8. Differential spring
9. Bellows
12. Contact system
13. Terminal
14. Ground terminal
15. Cable entry
16. Tumbler
Switch Version
Capillary Tube Length, m
1
2
3
4
6
11.5
Technical Specification
Actuating temperature (regulating range):
Charge
Sensor type
Capillary tube length [m]
Maximum permissible
electrical load on
the contact system
Contact system
Reset function
Differential (hysteresis)
Cable entry
Enclosure
Ambient temperature
Maximum sensor temperature
*) sensor length of 0.5 m is not included
© Danfoss | DCS (rm) | 2020.02
Net Weight [kg]
0.460
0.487
0.520
0.565
0.625
0.868
Alternating
current (AC)
Direct current (DC)
-30...15 °C. Preset value is 7 °C
Vapour
Capillary tube without a bulb
1; 2*; 3; 4*; 6*; 11.5 (depending on the version)
AC-1
AC-3
AC-15
DC-13
Single pole double throw (SPDT)
Automatic
Adjustable. Preset value at DIFF scale is 2 °C
Sealed entry for cables with 6 – 14 mm diameter
IP30 (special IP55 version)
-40...65 °C
120 °C
Fig. 1
Fig. 2
16А, 400V
16А, 400V
10А, 400V
12W, 220V
AN33432347566101-000101 | 1
