OMX-DEM100
Master control signal selector
Scope input selector for monitoring
Remote signal switcher for ENG
This multi-faceted utility product combines several control room products into one high performance
powerhouse. Imagine a passive 6x1 Video/Stereo Audio Switcher like our PSW-6 designed to feed a
dual channel analog VU meter like our VUM-2TB, and then the coupling of a state-of-the-art 15
WATTS PER CHANNEL STEREO POWER AMPLIFIER: THIS IS THE OMX-DEM100.

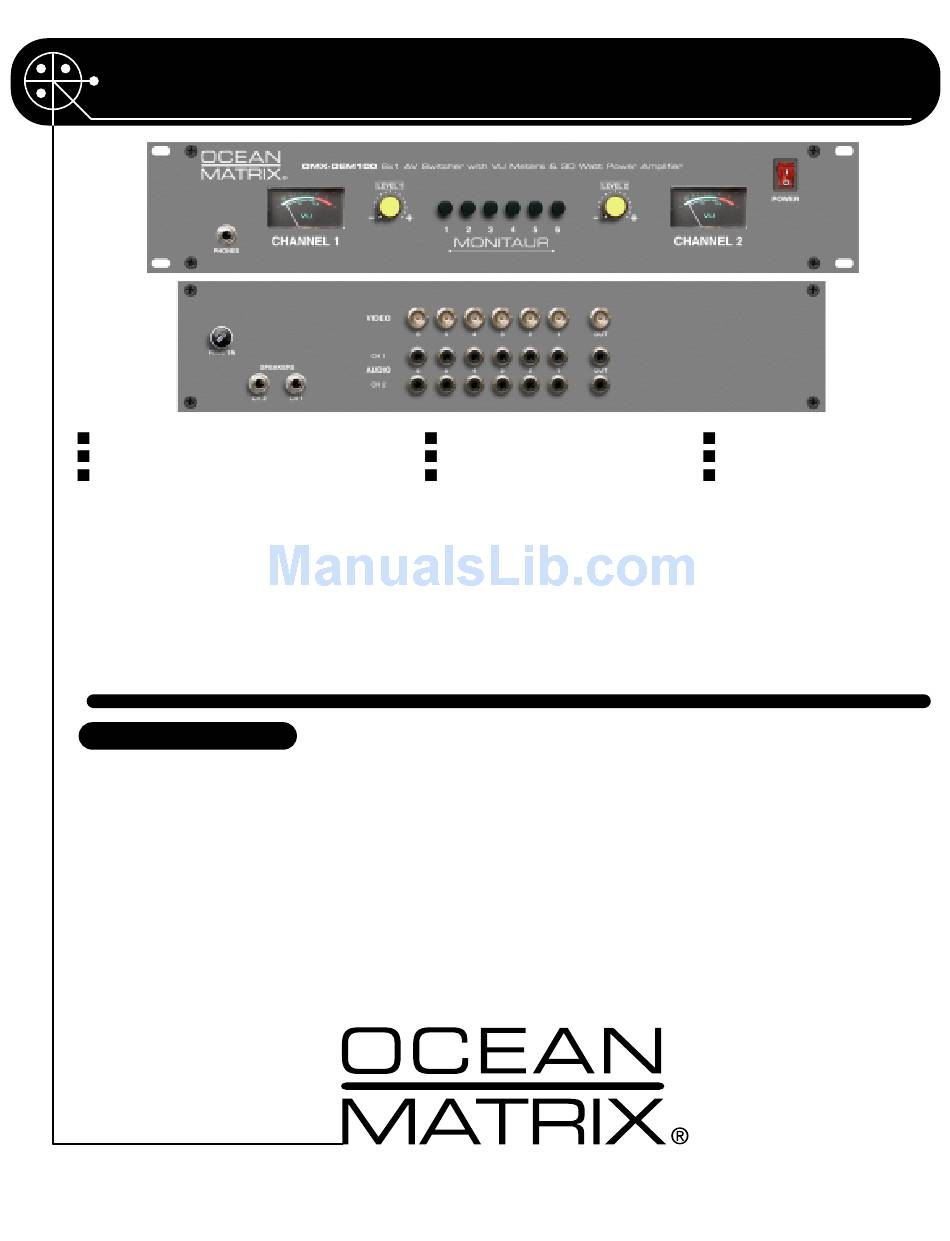

Enclosed in a 2 rack height 19" cabinet, the OMX-DEM100 is the perfect A/V signal "sniffer" in a mas-
ter console, In duplication rooms it can be the master source selector, or the Quality Control tester.
The DEM has hundreds of uses in today's multi-tasking environments where space and cost is a
major concern. An earphone jack is also provided which interrupts audio feed to speakers.

SPECIFICATIONS

Number of Switcher Inputs:
Number of Switcher Outputs:
Switching Select:
Controls:
Power Amplifier:
Distortion
S/N:
Frequency Response:
VU Type:
Dimensions:
6x1 Video & Stereo Audio
Switcher with Power Amplifier
Non Linear source Selector
Field production test setup
Service Bench tool
6 Composite Video, Non-Terminating: BNC
6 Stereo Audio: RCA Connectors
1 Composite Video: BNC Connectors
1 Earphone Jack
Front Panel: Interlock-lockout: MBB push button
Amplifier Level: both channels
15 WATTS per channel RMS into 8 ohms
<0.05%
85dB @ 10Hz - 30Khz
10Hz - 60Khz
Coil type VU Meter
3.5"H X 7"D X 19"W EIA rackmount
