- Page 1 OMX-07HMHM0002 4K 60Hz HDMI 4x1 Switcher with USB Device/Hotkey Switching and Mic/Speaker Function...
- Page 2 Description: The Ocean Matrix OMX-07HMHM0002 is a 4x1 HDMI switcher that supports USB Device/Hotkey Switching and Mic/Speaker functionality. The switcher features four independent HDMI and USB inputs that allow you to connect to a PC while supporting 4k resolutions and 7.1 surround sound audio.

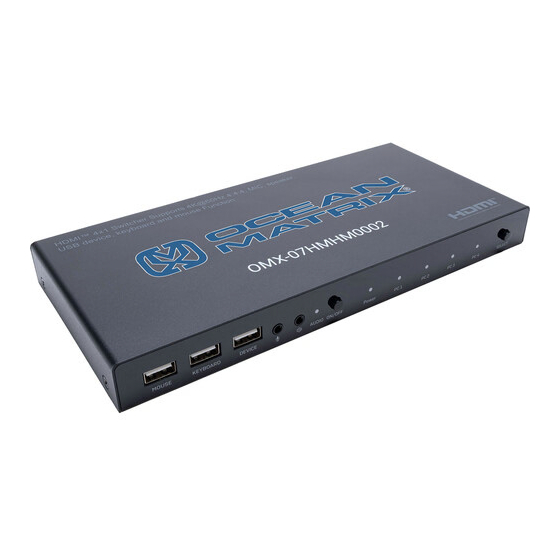

- Page 3 Operation Controls and Functions: Mouse, Keyboard, Device Input MIC IN - Mic audio input. Audio - Stereo audio output. Power - Power indicator. PC1-4 Port Indicator and Select Button - Press the select button to choose PC1-4 ports. DC/5V - DC 5V input. Sink - HDMI output HDMI and USB-B Port PC 1-4 - HDMI and USB-B Source Input...
- Page 4 Connection Diagram:...
- Page 5 Hotkey Switching Command List: Command Function Switch to the PC1-4 input Right CTRL + Right CTRL + n, n = 1,2,3,4 Turn on/off automatic scanning, 10 Right CTRL + Right CTRL + s seconds for default scanning Right CTRL + Right CTRL + b Switch on/off the buzzer Switch on/off the automatic Right CTRL + Right CTRL + t...
- Page 6 PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
