- Page 1 OMX-5009A...
-
Page 2: Table Of Contents
Figure 4: Connecting the Balanced Stereo Audio Input/Output Figure 5: Connecting the Unbalanced Stereo Audio Input Figure 6: Connecting the Unbalanced Stereo Audio Output Tables Table 1: Front Panel OMX-5009A 3x1 VGA/Audio Switcher Features Table 2: Technical Specifications of the OMX-5009A 3x1 VGA/Audio Switcher... -
Page 3: Introduction
Display and presentation systems that require three way switching to two displays Many multimedia applications Computer graphics and balanced stereo audio distribution The package includes the OMX-5009A 3x1 VGA/Audio Switcher, a power adapter (12V DC Input) and this user manual. Getting Started We recommend that you:... -
Page 4: Your Omx-5009A 3X1 Vga/Audio Switcher

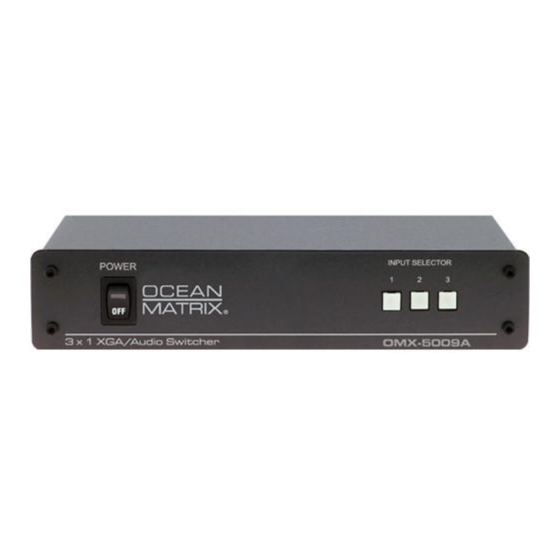

Your OMX-5009A 3x1 VGA/Audio Switcher Your OMX-5009A 3x1 VGA/Audio Switcher Figure 1 and Table 1 define the OMX-5009A: Figure 1: OMX-5009A 3x1 VGA/Audio Switcher Table 1: Front Panel OMX-5009A 3x1 VGA/Audio Switcher Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF... -
Page 5: Using The Omx-5009A 3X1 Vga/Audio Switcher
2 See section 5.3 for details of how to wire a balanced/unbalanced stereo audio input/output 3 When only one output is required, connect only that output of the OMX-5009A and leave the other output unconnected 4 Not illustrated in Figure 2... -
Page 6: Figure 2: Connecting The Omx-5009A 3X1 Vga/Audio Switcher
Amplifier and Speakers (Acceptor 1) Balanced Stereo Audio Balanced Stereo Audio (Source 2) (Source 3) PC with Balanced Stereo Audio Card and Local Speakers (Source 1) PC with Local Speakers (Source 3) (Source 2) Figure 2: Connecting the OMX-5009A 3x1 VGA/Audio Switcher... -
Page 7: Connecting The Remote Connector
Using the OMX-5009A 3x1 VGA/Audio Switcher 5.2 Connecting the REMOTE Connector You can force the routing of one of the 3 inputs to the VGA/UXGA and balanced stereo audio outputs by remote control. To do so, momentarily connect the appropriate... -
Page 8: Connecting The Balanced/Unbalanced Stereo Audio Input/Output
Using the OMX-5009A 3x1 VGA/Audio Switcher 5.3 Connecting the Balanced/Unbalanced Stereo Audio Input/Output Figure 4, Figure 5, and Figure 6 illustrate how to wire a balanced/unbalanced input and/or output connection: Figure 4: Connecting the Balanced Stereo Audio Input/Output Figure 5: Connecting the Unbalanced Stereo Audio Input... -
Page 9: Technical Specifications
Technical Specifications Technical Specifications Table 2 includes the technical specifications: Table 2: Technical Specifications of the OMX-5009A 3x1 VGA/Audio Switcher INPUTS: 3 VGA/UXGA on HD15F connectors 3 balanced stereo audio 10k on 5 PIN terminal block connectors 1 detachable 4 PIN terminal block connector for remote control...
