  • Page 1 OMX-07MXMX0001 Mixed Input Type-C VGA HDMI 2.0 HDBaseT Switch...

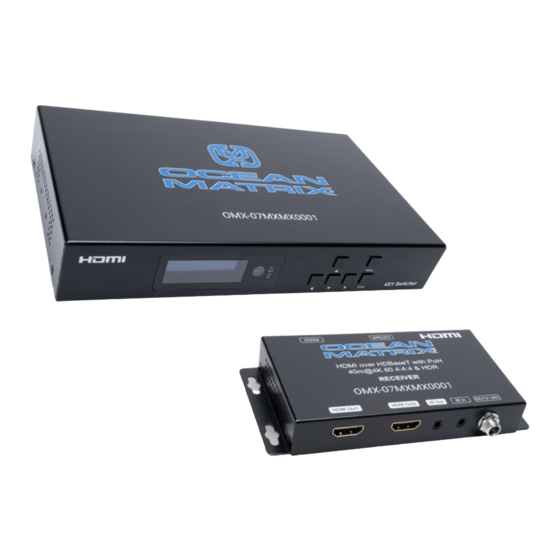

  • Page 2 Description: The Ocean Matrix OMX-07MXMX0001 is a 4-port HDBaseT switch that allows switching between four sources (1x Type-C, 1x VGA, 2x HDMI) to both HDMI and HDBaseT outputs simultaneously. The switch supports HDMI resolutions up to 4K@60Hz YUV4:4:4, and will transmit 1080p up to 70m, and 4K up to 40m via the HDBaseT output.

  • Page 3: Specifications

    Specifications: Operating Temperature Range: 23 to +104°F (-5 to +40°C) Storage Temperature Range: 14 to +140°F (-10 to +60°C) Operating Humidity Range: 5 to 90 % RH (No Condensation) Input Video Signal: 0.5-1.0 volts p-p Input DDC Signal: 5 volts p-p (TTL) Bandwidth: 18Gbit/s Video Formats Supported: 4K@60Hz, YUV4:4:4 / 4k@30Hz/1080P/1080i/720P HDCP Compliance: HDCP 2.2 &...
  • Page 4 Operation Controls and Functions: Switcher: LCD Screen - Displays switch information Function Buttons - Up, Down, Left, and Right Function Button - Menu, and Enter Control - RS232 pass through for PC tool control / Ethernet for IP / web control / IR Extender for switch control Audio In - PC audio in for VGA input only / HDMI analog PCM2.0 audio embedded Audio SPDIF Out - Dolby, DTS, Max 5.1CH Analog PCM2.0 Audio Out...

  • Page 5: Connection Diagram

    Connection Diagram...
  • Page 6 Operation Controls and Functions: Receiver: HDMI Out 1 HDMI Out 2 IR Out IR In DC/12-24V Input Factory Use Only CAT5e/6 RS232...

  • Page 7: Menu Display

    Menu Display When pressing the menu button, options include "VIDEO SET", "AUDIO SET", "EDID SET", "MIC IN VOL SET", "ANAL OUT VOL SET", "IP QUERY", "UART QUERY", "REST SET". 1) VIDEO SET: For input switch, select VIDEO SET, press enter, use the left & right buttons to select current input signal and hit enter again to finish setting.
  • Page 8 3) EDID SET: 4 EDID modes are supported, 4K60 (default), 1080P (default), COPY HDMI, COPY HDBT. Select EDID SET press the enter button, then use the left & right buttons to select desired EDID setting. Press enter again to finish setting. 4) MIC IN VOl SET: MIC input volume adjustment from 0-10 (max).
  • Page 9 6) IP QUERY: Default IP address 192.168.1.168. DHCP: off, use the left & right buttons to select desired DHCP status setting and press enter to finish setting. 7) UART QUERY: The device supports the following baudrates, 9600, 19200, 38400, 57600, and 115200 (default). To check current baudrate, select UART QUERY and press enter.
  • Page 10 1) Download the “swe01b_4-Input HDMI Switcher.exe”software to your computer from included disk, then open it. 2) Using USB to RS232 cable connect to the RS232 port of the OMX-07MXMX0001 switch. 3) Press “Search” button to find out the right port then click “Open Port”.
  • Page 11 Port Setup 1) Communication port setting: in PC windows system run the “swe01b_4-Input HDMI Switcher.exe”software,in RS232 INFO. ,select correct port (communication port) and baud (should be same to baudrate in UART QUERY for connection) 2) Click “Search” to refresh communication port. 3) “Open Port”: in disconnect status,”Close Port”: connected to device.
  • Page 12 4) If you are receiving “ERROR” the COM port is invalid and is not connected correctly, press “OK” to refresh again. 5) Below will show current COM port info. and baudrate when connected to device: Control Interface...
  • Page 13 1). Video Input: Switch Type C, VGA, HDMI input. 2). EDID Mode: 4K60: Default EDID 4K@60Hz 1080P: Default EDID 1080P@60Hz HDMI: Copy HDMI out EDID for input (Copy mode) HDBT: Copy HDBT out EDID for input (Copy mode) 3) Audio Input Mode: Click to choose input option, HDMI, Analog, Mute, (HDMI: audio of Type C/VGA/HDMI, Analog: audio embedded/MIC in) 4) MIC: VOL control, the number “5”...
  • Page 14 Note: When you click for DHCP ON, then IP Address, Net Mask Address, Gate Way Address frames all become grey and can not be modified. WEB Control Change the IP address of your PC 1) Connect the Ethernet port of HDBaseT switch to the Ethernet port on PC by a straight pin to pin cable with RJ45 connectors.
  • Page 15 Change the settings of this connection: 3). The local Area commotion properties window for Network selection appears as below. 4). Click the Highlight Internet Protocol Version 4 (TCP/IPv4). 5). Click Properties. 6). Select Use the following IP Address for static IP addressing and fill in the details. For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.168).
  • Page 16 Enter WEB and Control 1) Enter the default IP address of the matrix: 192.168.1.168. 2). You will see following picture and control: Command Control Control software operation: The serial control software is illustrated with SSCOM32 as an example. Basic Settings:...
  • Page 17 Double-click the software in the installation package to run specifically (as shown in figure 1 ) and install the RS232 software on the computer. Enter the main interface of the software, as shown in the figure below. Please use USB to RS232 cable to connect PC and device,open RS232 software. In the parameter configuration area of the RS232 program, select the serial number that the serial port connects with PC, and set the baud rate of the communication protocol: 115200 (default), data bits: 8.
  • Page 18 Power Off and Reboot Input Priority Mode When the OMX-07MXMX0001 switch reboots and it inspects the current input signal in “None” status, device will auto switch to a higher priority input signal (If there is no higher priority input than...
  • Page 19 3) The priority mode is only valid when the device has signal input. RS232 Pass through By RS232 Command, the OMX-07MXMX0001 switch can send RS232 data to control the receivers, also the receiver can send RS232 data to control the OMX-07MXMX0001 switch.
  • Page 20 GUI Web Upgrade 1) Connect unit to PC with USB cable from micro USB port,click "UART_ISP.exe" software, REFRESH and choose correct COM port that connect to product,and baudrate 115200(default).The baud rate setting is consistent with the host baud rate. 2)Type in “F0 01” in PORT and choose update program in PATH,then click UPDATA wait for update until it prompt “Succeed”...

  • Page 21: Product Service

    PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
