Summary of Contents for Ocean Matrix OMX-07HMHM0004

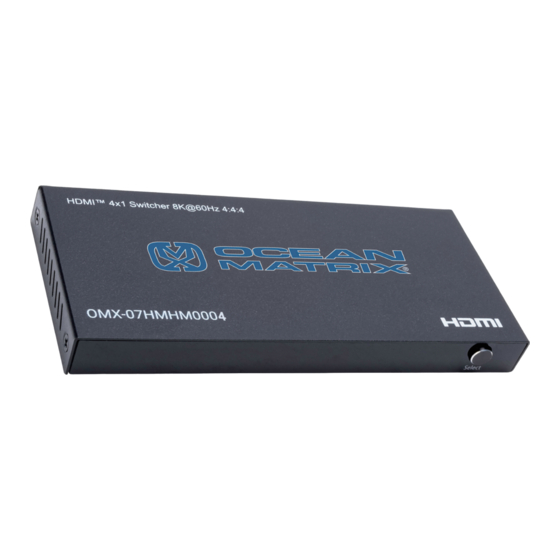

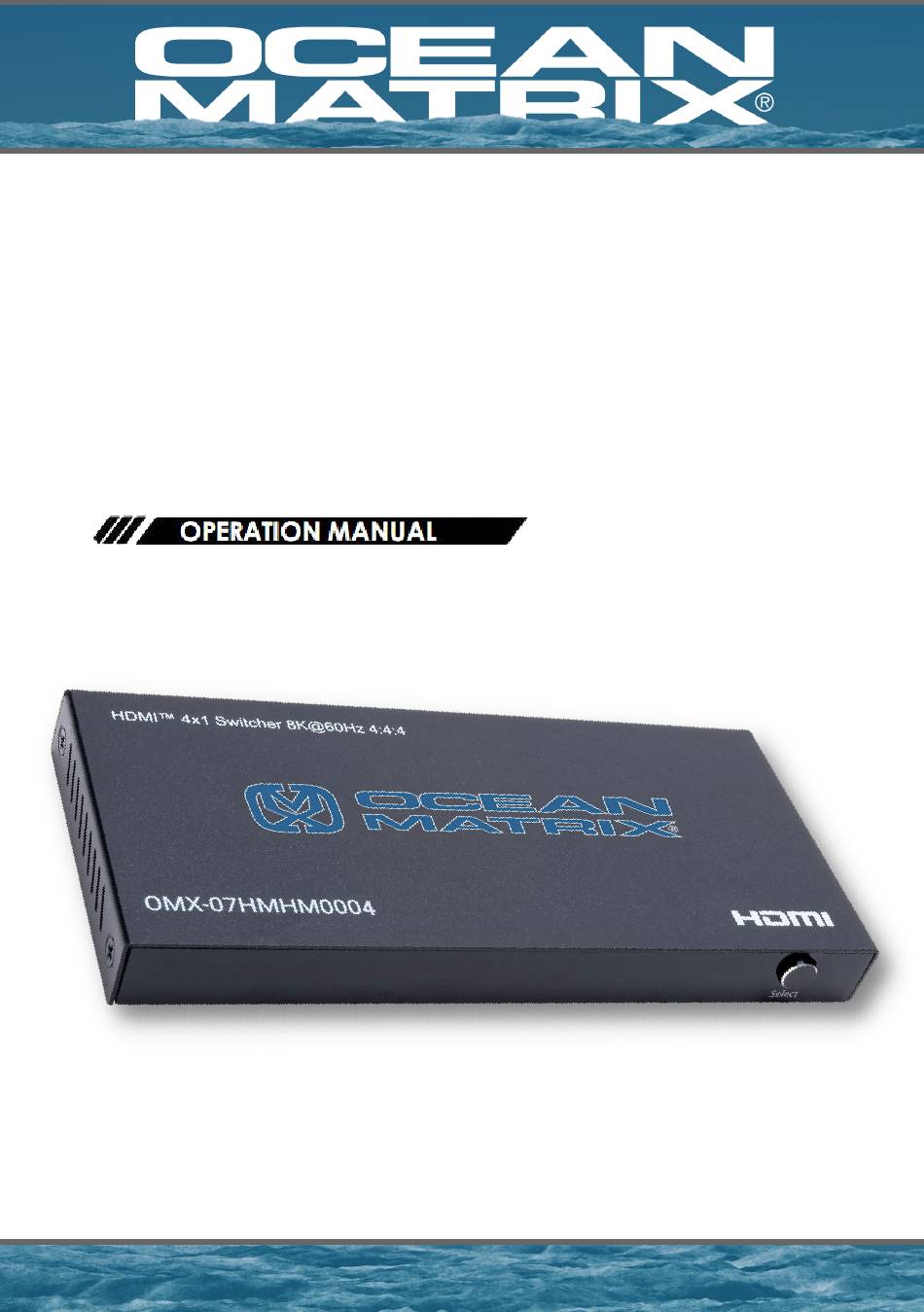

- Page 1 OMX-07HMHM0004 HDMI 4x1 Switcher 8K@60Hz 4:4:4 HDR HDCP2.3...
- Page 2 Description: The Ocean Matrix OMX-07HMHM0004 is an HDMI 4x1 switcher that lets you share four HDMI-enabled video sources with a single display or projector. The switcher features four independent inputs that each support 8K resolutions and 7.1 surround sound audio.
- Page 3 Operation Controls and Functions: Power LED Indicator Input Ports 1-4 LED Indicators - Blue LED indicates an active signal path while no LED indicates no input signal Auto Mode LED Indicator - LED on indicates the unit is in automatic switching mode while off indicates it's in manual switching mode IR Mode LED Indicator - LED on indicates the unit is in the normal IR receiver mode while off indicates it's not in IR function mode...
- Page 4 Item Includes: Remote Control: Power Button 1-4 - Press the number to select the input source accordingly IR - Press to turn on/off the IR receiver function USB Power Cable...
- Page 5 Connection Diagram...
- Page 6 PRODUCT SERVICE Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged (b) Objects or liquids have gotten into the unit (c) The unit has been exposed to rain (d) The unit does not operate normally or exhibits a marked change in performance;...
