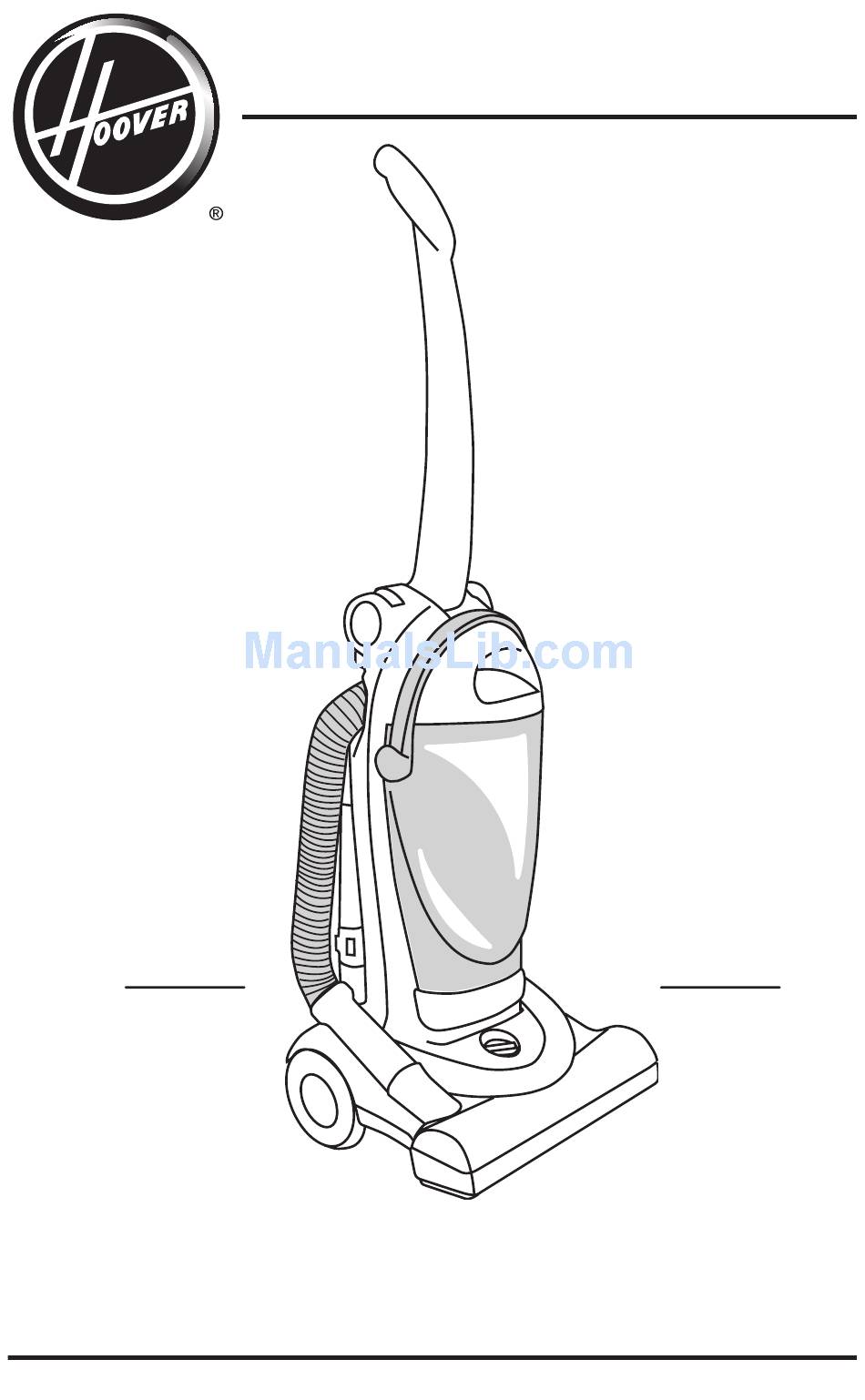

Owner's Manual
Operating and Servicing Instructions
www.hoover.com
Please review this manual before operating your Hoover® product.
The French and Spanish manual for this product
can be found at www.hoover.com.
©2009 Healthy Gain Investments, Ltd. All rights reserved. #56511
80-R1. 2/09
C

Advertisement

Table of Contents
loading

Related Manuals for Hoover Vacuum Cleaner

Summary of Contents for Hoover Vacuum Cleaner

  • Page 1 Owner’s Manual Operating and Servicing Instructions www.hoover.com Please review this manual before operating your Hoover® product. The French and Spanish manual for this product can be found at www.hoover.com. ©2009 Healthy Gain Investments, Ltd. All rights reserved. #56511 80-R1. 2/09...

  • Page 2: Table Of Contents

    Warranty ............. . .16 If you need assistance: Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover® authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover®...

  • Page 3: Important Safety Instructions

    Do not run appliance over cord. Keep cord away from heated surfaces. • Use vacuum cleaner only for its intended use as described in the instructions. Use only attachments recommended by Hoover; others may cause hazards.

  • Page 4: Assembling Cleaner

    1. Assembling cleaner Carton contents STEP I Using fold down handle Raise upper handle (A) to upright posi- tion until it locks in place. Press upper handle release button (B) back to fold handle to storage position. Cord clip To help keep the cord out of the way while cleaning, position cord into...

  • Page 5: How To Use

    2. How to use Cleaner description Operate cleaner only at voltage specified on data plate on bottom of cleaner. The assembled cleaner will look like the drawing. 1. FoldAway™ handle 2. Upper handle release button 3. Dirt cup handle/latch 4. Carrying handle 5.

  • Page 6: Carpet Height Adjustment

    Polarized On-Off Handle positions plug switch To reduce the risk The handle of your of electric shock, cleaner has three po- sitions; upright when this appliance has a polarized plug using cleaning tools; operating position for (one blade is wider than the other).

  • Page 7: Cleaning Tools

    Cleaning lightweight flexible rugs Stand on one end of rug and move cleaner toward other end or edge. Before reaching edge, push down on handle. This will lift up the nozzle (front of cleaner) as shown and will prevent rug from clinging to cleaner.

  • Page 8: Attach Wand And Tools

    Remove hose Attach wand and tools When using clean- 2.12 2.11 ing tools, cleaner handle should be in the upright position. Also, turn cleaner OFF before disconnecting and connecting the hose (A). The tools are attached to the hose or the Remove hose end wand in the same manner.

  • Page 9: Maintenance

    3. Maintenance Familiarize yourself with these home The dirt cup assembly consists of the maintenance tasks as proper use and care of following parts: your cleaner will ensure continued cleaning Dirt Cup (A) effectiveness. Filter chamber (B) Dirt Cup Pleated filter (C) Lid (D) Dirt cup carry handle/latch (E) Filter chamber release latch (F)

  • Page 10: Filter Assembly

    Filter assembly How to clean filter assembly Press latch (A) Empt y f ilter Holding lid, tap on front of filter chamber. bottom of filter chamber and against edge of remove lid. The wastebasket until pleated filter is at- dust particles stop tached to the lid.

  • Page 11: Headlight Replacement

    To assure effective operation, use only gen- the upright posi- (Fig. 2-11). tion, tilt cleaner uine HOOVER belts with your cleaner. When back until it rests purchasing a new belt, ask for: Flat belt - Remove 2 screws at on floor.
  • Page 12 3.17 3.19 3.18 Remove agitator Lift hood off Remove the 2 screws behind the agitator and used belt. Dis- cleaner. cover (A). card used belt. 3.20 3.21 3.22 With lettering to Insert agitator Grasp agitator firmly and fit it into position the outside of belt, through belt and by first sliding end opposite the belt into the...

  • Page 13: Agitator Brushroll

    13” -HOOVER part No. 48414110 tator, agitator cover and hood. 15” -HOOVER part No. 48414115. Replacement parts and accessory items may be purchased from your Authorized Hoover Dealer, Leading Retailers, Hoover Sales & Service Centers, on-line at www.hoover.com.

  • Page 14: Lubrication

    1. Turn the cleaner OFF and disconnect it ings that should be lubricated periodically from the electrical outlet. by a Hoover Factory Service Center or an 2. Check secondary and final filters for Authorized Hoover Warranty Service Dealer dirt accumulation.

  • Page 15: Troubleshooting

    4. Troubleshooting If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Cleaner won’t run Not firmly plugged in Plug unit in firmly No voltage in wall plug Check fuse or breaker Blown fuse or tripped...

  • Page 16: Warranty

    For an automated referral of authorized service outlets ® household use, in accordance with the Owner’s in the U.S.A., phone 1-800-944-9200 OR visit Hoover ® Manual against original defects in material and on-line at hoover.com...
