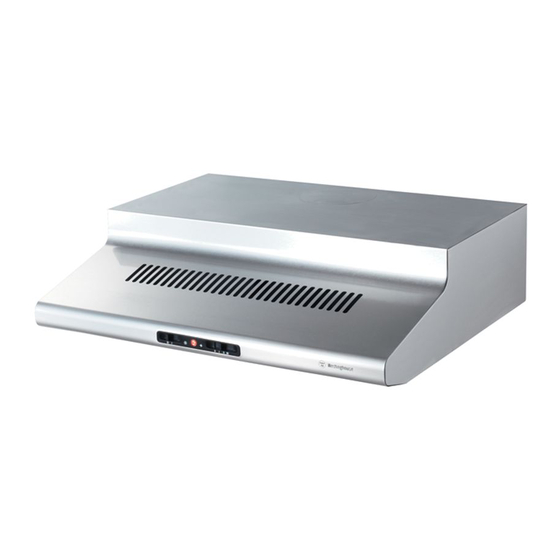

fixed rangehoods
WrJ600uW, WrJ600uK, WrJ600us, WrJ603uW,WrJ611us, WrJ900uW,
models:
WrJ900us, WrJ903uW, WrJ903uK,WrJ911us
300mm
25mm
25mm
30mm
Minimum distance
of hood above hob
GAS:
650mm
ELECTRIC:
600mm
Rear Exhaust
to atmosphere
*
In recirculating mode you must use carbon filters to eliminate cooking smells. (Model No. ARCFD)
All measurements in millimetres.
30mm
105mm
79mm
143mm
60mm
100mm
598/898mm
Side Exhaust
Top Exhaust
to atmosphere
to atmosphere
119mm
160mm
Front Recirculating
*
Exhaust
Current as at May 2006. © 2006 Electrolux Home Products Pty Ltd. WRANIDFIXED 05/06
25mm
35mm
500mm
Top Recirculating
*
Exhaust
page 1 of 2
