American Fibertek RT-96400C-SL Instruction Manual

Sixty four channel video multiplexer

Advertisement

Quick Links

af i
Sixty Four Channel Video Multiplexer
10/31/2012 JPK
af i
af i
af i
af i
Instruction Manual
RT-96400C-SL
RR-96400C-SL
af i
af i
af i
af i
!
af i
american fibertek
af i
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-96400C-SL and is the answer not in the manual?

Questions and answers

Summary of Contents for American Fibertek RT-96400C-SL

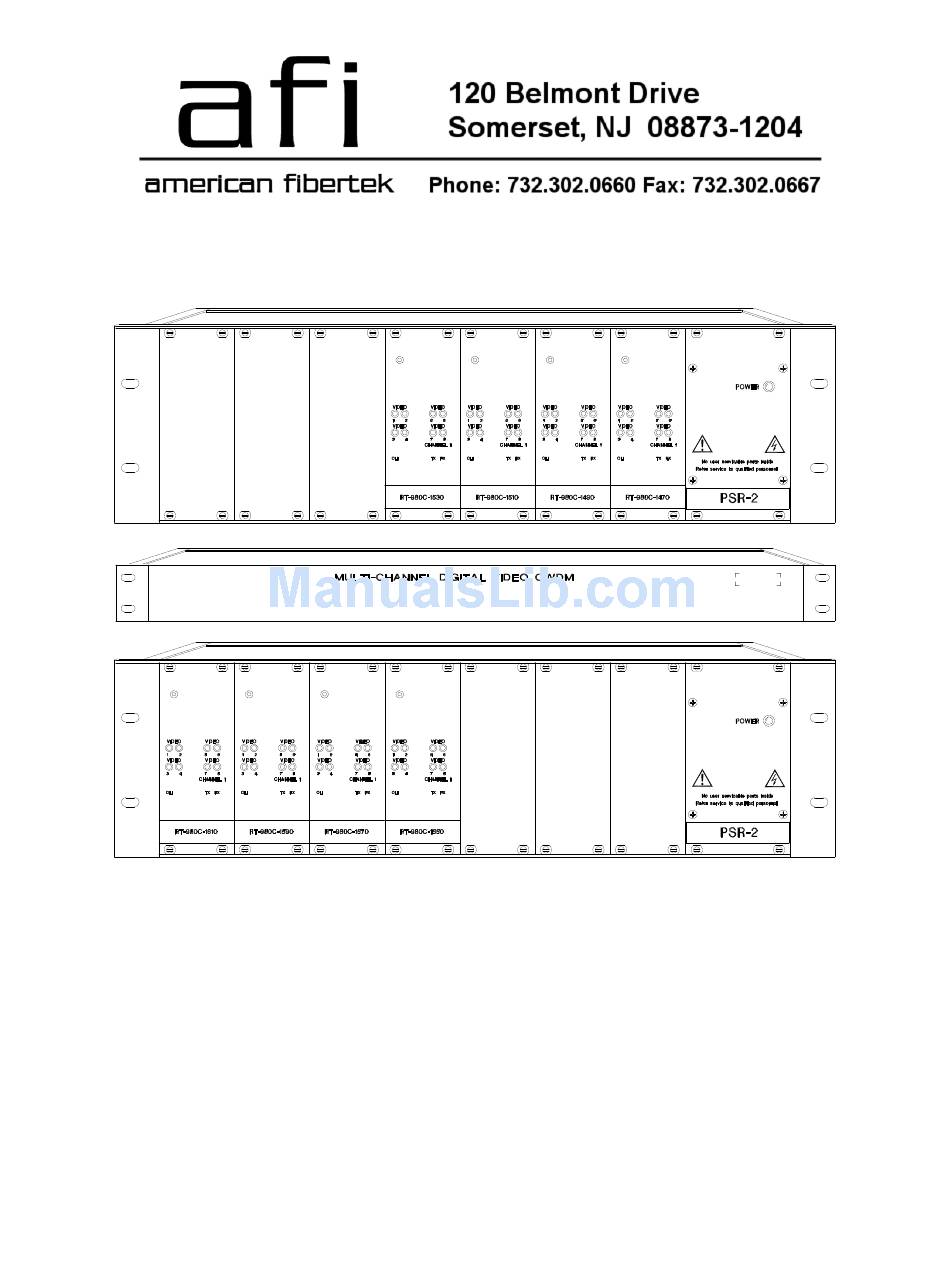

  • Page 1 Instruction Manual RT-96400C-SL RR-96400C-SL Sixty Four Channel Video Multiplexer 10/31/2012 JPK...
  • Page 2: Table Of Contents

    Table of Contents Functional Description ................3 RT-96400C-SL Components...............4 RR-96400C-SL Components ..............5 Power Connections ................5 Fiber Connections ................6 Video Input / Output Connections ............7 RT-980C-XXXX Series Status LED Indicators........8 RR-980C-XXXX Series Status LED Indicators ........9 Warranty / Service Information ............10...
  • Page 3: Functional Description

    NTSC or PAL video signals over one single-mode fiber optic cable. The RT-96400C-SL transmitter accepts up to sixty-four video inputs in eight groups containing eight videos each and multiplexes each. The first group’s serial data stream modulates a laser at 1470nm wavelength.
  • Page 4: Rt-96400C-Sl Components

    1) MTX-CWDM-8 6) BPS-2 The individual 980C-XXXX series video rack cards that make up the RT-96400C-SL are combined in a rack mount configuration using the SR-20 sub-rack. Please refer to the instruction manuals for the SR-20 and the PSR-2 for information on the installation of the sub- rack with its power supply.
  • Page 5: Rr-96400C-Sl Components

    The individual 980C-xxxx series video rack cards and that make up the RR-96400C-SL are installed in a manner similar to the RT-96400C-SL (see drawing below). The Multi-Channel Digital Video CWDM that optically demultiplexes the eight video rack cards used in the RR- 96400C-SL is labeled MRX-CWDM-8.
  • Page 6: Fiber Connections

    RT-96400C-SL, RR-96400C-CL FIBER CONNECTIONS The fiber optic connection to the user’s infrastructure is made via a SC connector located at the back of the CDWM unit next to the power input. Be sure to allow sufficient room for the required minimum bend radius of the fiber cable used.
  • Page 7: Video Input / Output Connections

    The location of a video input to the RT-96400C-SL will be mirrored as a video output at the RR- 96400C-SL. For example, the Channel 2 video input on the RT-980C-1550 will become the Channel 2 video output on the RR-980C-1550 after traveling across the fiber infrastructure.
  • Page 8: Rr-980C-Xxxx Series Status Led Indicators

    RR-980C-XXXX SERIES STATUS INDICATORS Each of the RR-980C-XXXX series receivers provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for the each of the eight video outputs from the RR-980C- XXXX series receivers.
  • Page 9 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.

This manual is also suitable for:

Rr-96400c-sl

Table of Contents
