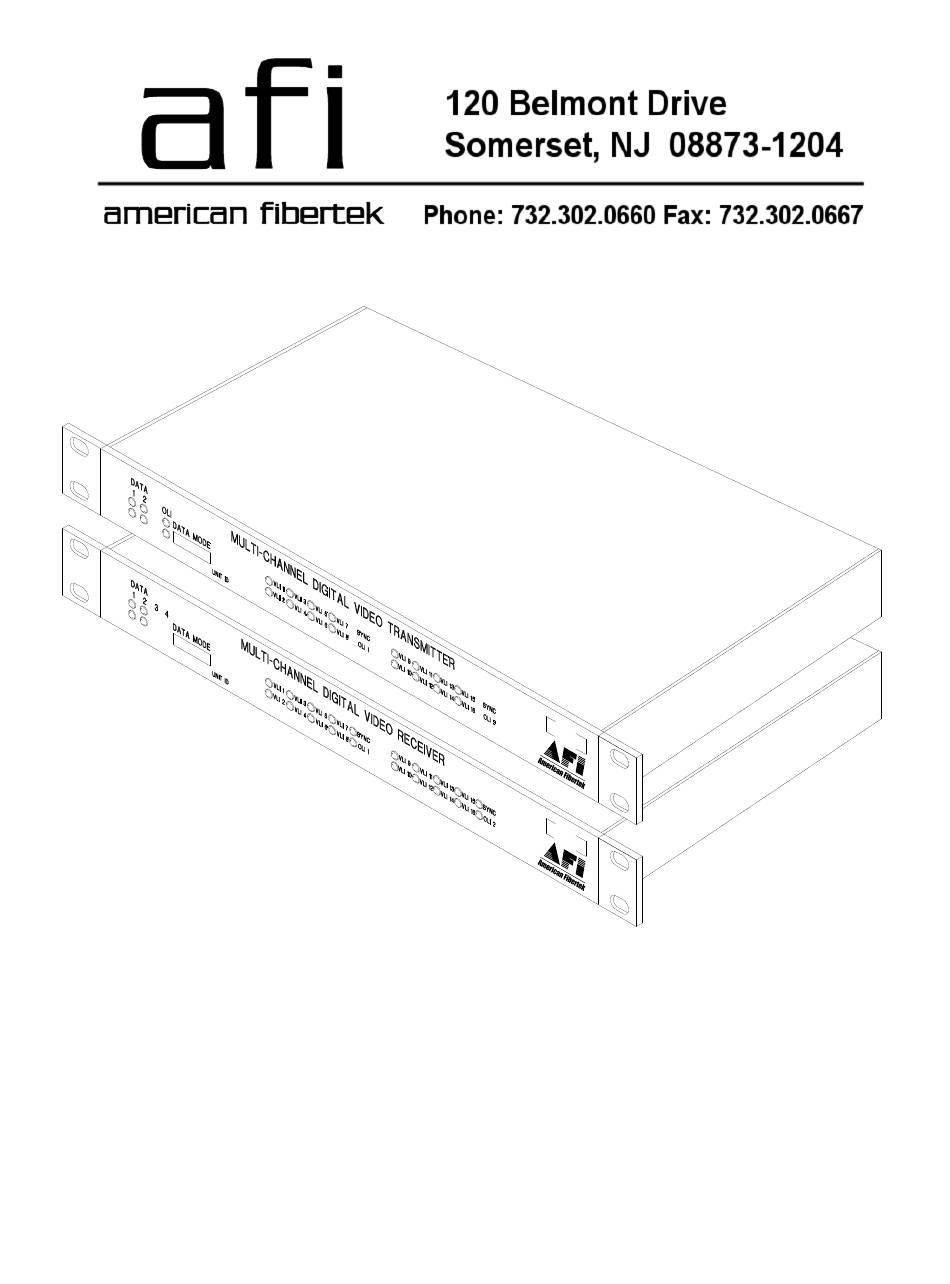

- Page 1 Instruction Manual MRT-91600C MRR-91600C Sixteen Channel Video Multiplexer © Copyright 2008, American Fibertek, Inc. 0312JPK...
- Page 2 Table of Contents Functional Description................ 3 Installation ..................3 Power Source..................4 Fiber Connection ................4 Video Input / Output Connections ............4 MRT-91600C Status LED Indicators ..........5 MRR-91600C Status LED Indicators..........6 Warranty / Service Information............7...
- Page 3 FUNCTIONAL DESCRIPTION The 91600C Series units operate as a transmitter / receiver pair for the digital transmission of sixteen simultaneous NTSC or PAL video signals over one multimode fiber optic cable. The MRT-91600C transmitter accepts up to sixteen video inputs in two groups containing eight videos and multiplexes each group into a high speed serial data stream.
- Page 4 For mounting the unit flush to a wall or other rigid surface, the ears may be installed on the sides with the oval holes flush with the bottom of the unit as in Figure 2. Mount the ears with the #10 flathead screws provided.
- Page 5 MRT-91600C STATUS INDICATORS The MRT-91600C transmitter provides the following front panel LED status indicators to aid in installation and troubleshooting: VLI 1 THROUGH VLI 16 A bi-color LED indicator is provided for each of the sixteen video inputs to the MRT-91600C. Video status associated with each of these LED s is summarized below.
- Page 6 MRR-91600C STATUS INDICATORS The MRR-91600C receiver provides the following front panel LED status indicators to aid in installation and troubleshooting: VLI 1 THROUGH VLI 16 A bi-color LED indicator is provided for the each of the sixteen video outputs of the MRR- 91600C.
- Page 7 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
