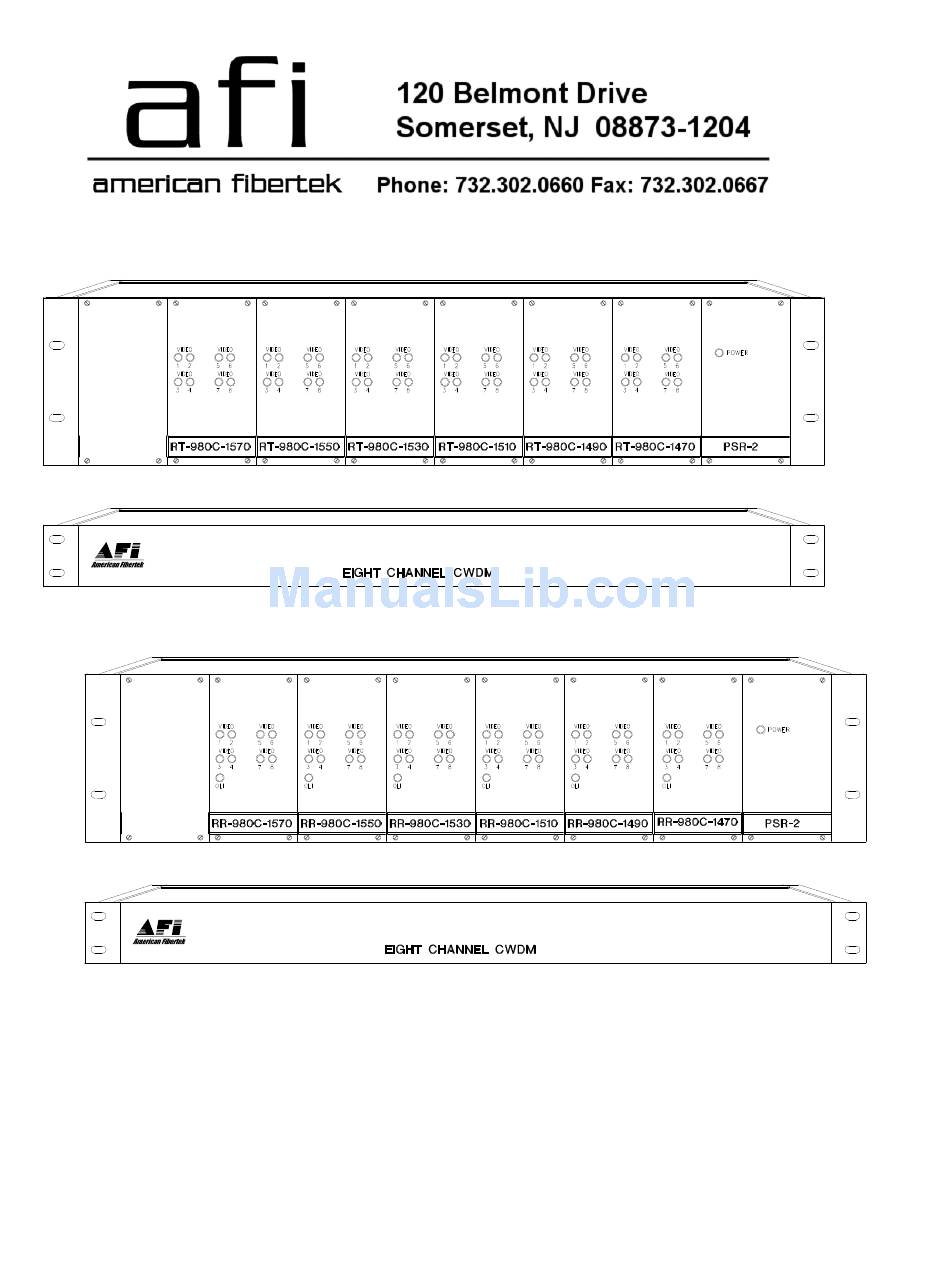

- Page 1 Instruction Manual RT-94800C-SL RR-94800C-SL Forty-Eight Channel Video Multiplexer 10/30/2012 JPK...
-
Page 2: Table Of Contents
Table of Contents Functional Description ................3 RT-94800C-SL Components...............4 RR-94800C-SL Components ..............5 Power Connections ................5 Fiber Connections ................6 Video Input / Output Connections ............7 RT-980C Series Status LED Indicators..........8 RR-980C Series Status LED Indicators ..........9 Warranty / Service Information ............10... -
Page 3: Functional Description
NTSC or PAL video signals over one singlemode fiber optic cable. The RT-94800C-SL transmitter accepts up to forty-eight video inputs in six groups containing eight videos each and multiplexes each. The first group’s serial data stream modulates a laser at 1470nm wavelength. -
Page 4: Rt-94800C-Sl Components
1) MTX-CWDM-8 1) BPS-2 The individual 980C series video rack cards that make up the RT-94800C-SL are combined in a rack mount configuration using the SR-20 subrack. Please refer to the instruction manuals for the SR-20 and the PSR-2 for information on the installation of the subrack with its power supply. -
Page 5: Rr-94800C-Sl Components
The individual 980C series video rack cards and that make up the RR-94800C-SL are installed in a manner similar to the RT-94800C-SL (see drawing below). The Multi-Channel Digital Video CWDM that optically demultiplexes the six video rack cards used in the RR-94800C-SL is labeled MRX-CWDM-8. -
Page 6: Fiber Connections
RT-94800C-SL FIBER CONNECTIONS The fiber optic connection to the user’s infrastructure is made via a SC connector located at the back of the CDWM unit next to the power input. Be sure to allow sufficient room for the required minimum bend radius of the fiber cable used. SC patchcords are supplied for the intra-fiber connections between the CWDM and each of the 980C series units. -
Page 7: Video Input / Output Connections
The location of a video input to the RT-94800C-SL will be mirrored as a video output at the RR- 94800C-SL. For example, the Channel 2 video input on the RT-980C-1550 will become the... -
Page 8: Rt-980C Series Status Led Indicators
RT-980C SERIES STATUS INDICATORS Each of the RT-980C series transmitters provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for the each of the eight video inputs to the RT-980C series transmitters. -
Page 9: Rr-980C Series Status Led Indicators
Each of the RR-980C series receivers provides the following front panel LED status indicators to aid in installation and troubleshooting: VIDEO 1 THROUGH VIDEO 8 A bi-color LED indicator is provided for the each of the eight video outputs from the RR-980C series receivers. -
Page 10: Warranty / Service Information
LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
