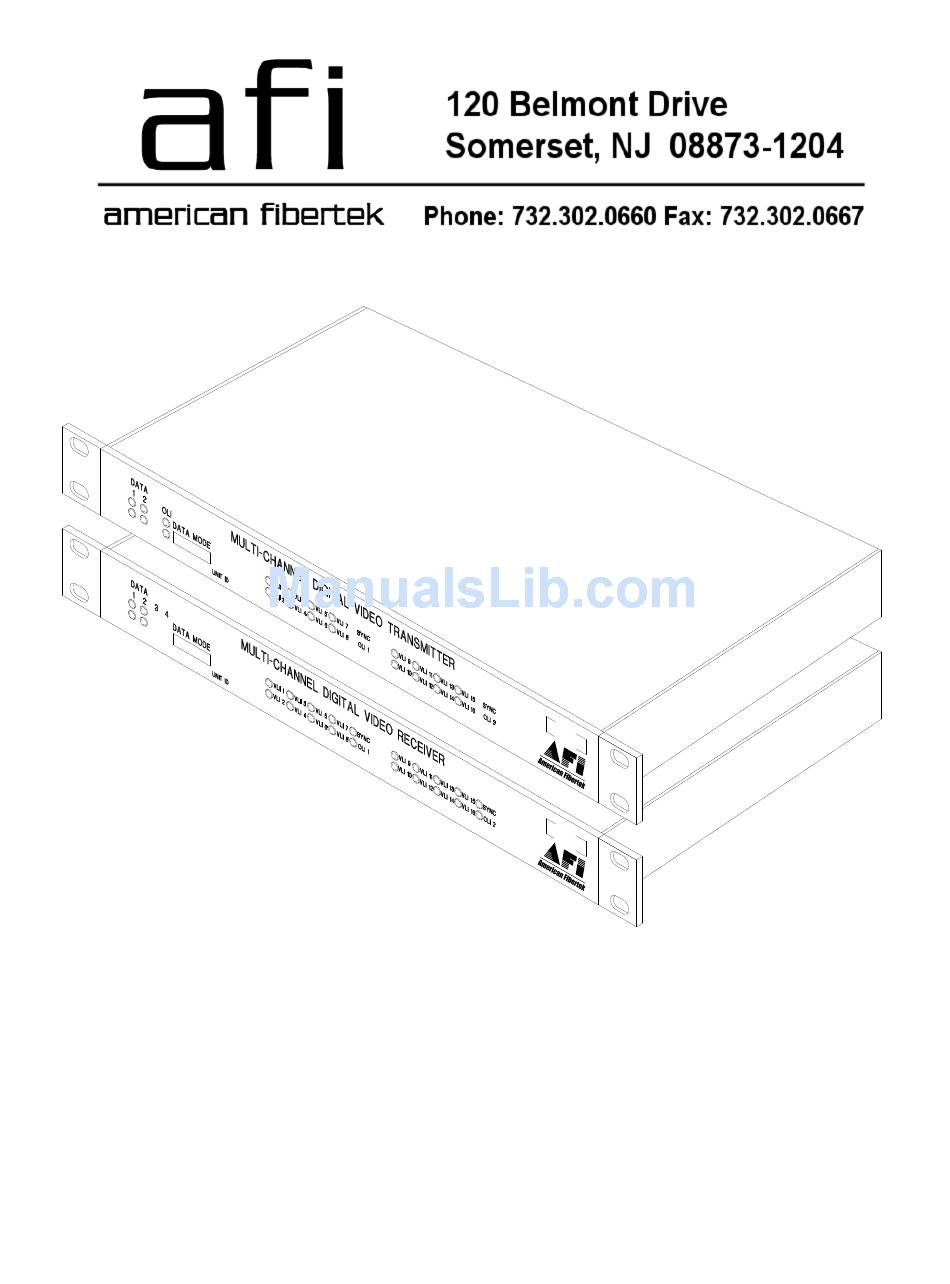

- Page 1 Instruction Manual MRT-91600C-283 MRR-91600C-283 Sixteen Channel Video Multiplexer 12/2012 JPK...
- Page 2 Table of Contents Functional Description ................3 Installation...................3 Power Source ..................4 Fiber Connection.................4 Video Input / Output Connections ............4 MRT-91600C-283 Status LED Indicators..........5 MRR-91600C-283 Status LED Indicators ...........6 Warranty / Service Information ............7...
- Page 3 THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES. To install the MRT-91600C-283 or MRR-91600C-283 it is first necessary to mount the rack flanges to the unit. For rack mounting the ears are installed on the...
- Page 4 For mounting the unit flush to a wall or other rigid surface, the ears may be installed on the sides with the oval holes flush with the bottom of the unit as in Figure 2. Mount the ears with the #10 flathead screws provided.
- Page 5 MRT-91600C-283 STATUS INDICATORS The MRT-91600C-283 transmitter provides the following front panel LED status indicators to aid in installation and troubleshooting: VLI 1 THROUGH VLI 16 A bi-color LED indicator is provided for each of the sixteen video inputs to the MRT-91600C- 283.
- Page 6 A bi-color LED indicator monitors the power of the optical input signal that is being received at the MRR-91600C-283 from video channels nine through sixteen of the MRT-91600C-283. AC power and optical input status associated with this LED are summarized below.
- Page 7 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
