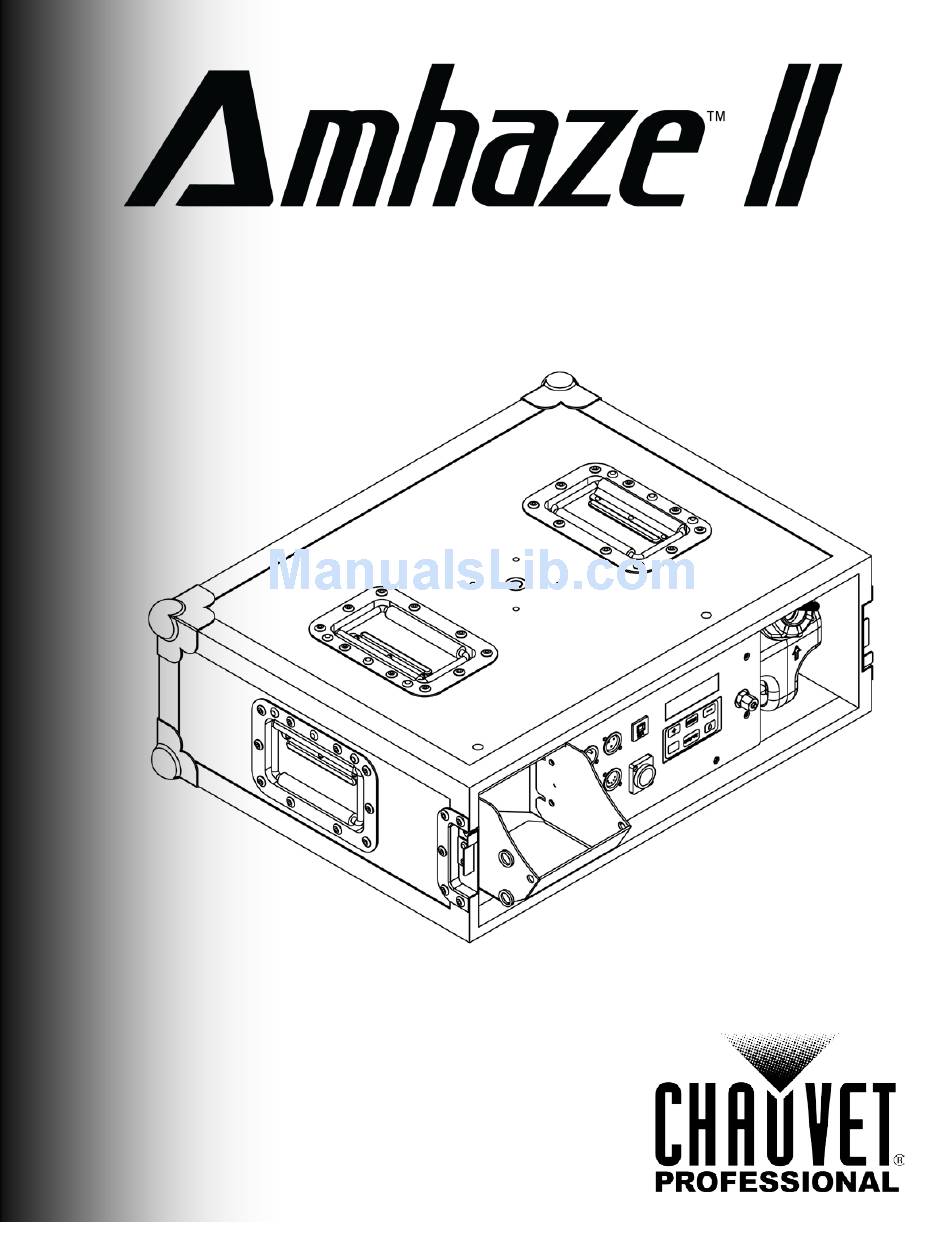

- Page 1 User Manual...
- Page 2 CHAUVET® owns the content of this User Manual in its entirety, including but not limited Copyright Notice to pictures, logos, trademarks, and resources.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product at a Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting and Rigging .................................. - Page 4 Table of Contents 5. Technical Information ..........................12 Hazer Maintenance ..............................12 Storage ..................................12 Technical Specifications ............................. 13 Returns ..................................14 Contact Us .................................. 14 -ii- Amhaze™ II User Manual Rev. 1...
-
Page 5: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention Meaning 1–512... -
Page 6: Product At A Glance
Do not add perfume, alcohol, gasoline, or any other flammables to the haze fluid. · Use CHAUVET® water-based Premium Haze Fluid (PHF) and High Performance Haze Fluid (HFG). In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. Amhaze™ II User Manual Rev. 1... -
Page 7: Introduction
M13 threaded rigging insert. It works with a variety of different water-based haze fluid types for added versatility, including Premium Haze Fluid (PHF) and High Performance Haze Fluid HFG) available from CHAUVET®. · Features Water-based haze machine ·... -
Page 8: Overview
Introduction Overview Vent for Breaker Reset Moveable Directional Button Haze Guide Display Flow Menu Buttons Haze Fluid powerCON® 3- and 5-pin DMX Out 3- and 5-pin DMX In Tank Input Rear View Amhaze™ II User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 8 in 203 mm Side View 24.7 in 627 mm View Amhaze™ II User Manual Rev. 1... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website www.chauvetpro.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 11: Mounting
Always mount this product in a safe position. The Amhaze™ II may be mounted in any Orientation position; however, make sure there is adequate room for ventilation, configuration, and maintenance. CHAUVET® recommends using the following general guidelines when mounting this Rigging product. ·... -
Page 12: Operation
3. Verify that the two plastic hoses attached to the cap are in place and in good condition. 4. Pour CHAUVET® (PHF or HFG) haze fluid into the tank and replace the cap. 5. Put the tank back into its compartment in the hazer. -
Page 13: Menu Map
Operation Menu Map Functions Menu (Press <FUNCTION> to Navigate) Interval Set 1s–200s (seconds) Duration Set 1s–200s (seconds) Timer Out 1%–100% Volume Out Use <UP> or <DOWN> to change settings 1%–100% Fan Speed OFF, 1%–100% DMX512 Add. 1–512 Fluid Sensor ON/OFF Amhaze™... -
Page 14: Dmx Values
Operation DMX Values 2 Channels Channel Function Value Percent/Setting 000 ó 005 No output Fan Volume 006 ó 255 20–100% 000 ó 005 No output Output Volume 006 ó 255 2–100% Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to power. -
Page 15: Timer Mode
Operation Timer Mode When in Timer mode, the Amhaze™ II will produce haze in pre-configured time intervals defined by the Interval Set and Duration Set menu options. In addition, the output volume during Timer mode is set by the Timer Out menu option. See the Timer Mode Parameters section for details about how to configure these parameters. -
Page 16: Technical Information
Hazer Maintenance Do not allow the haze machine to become clogged. After every 40 hours of continuous operation, use CHAUVET® Fog Cleaner Quart (FCQ) through the system to prevent the accumulation of particulate matter in the heating element. The recommended cleaning procedure is as follows. -
Page 17: Technical Specifications
Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 21.5 in (546 mm) 24.7 in (627 mm) 8 in (203 mm) 41.2 lb (18.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection 120 VAC, 60 Hz... -
Page 18: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.
