Optional Controllers
• Timer Remote (Model FC-4)
• Wireless remote (Model FC-5)
• DMX Adaptor (Model DMX-3F)
Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any
other connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA& Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground con-
nection.
In the UK, it is required that all mains plugs are fitted with 5Afuses
Technical Specifications
Power
120V~60Hz AC
Fuse
20mm Glass 5A Fast Blow
Preheat Time
4 minutes
Fog Output
1,500 cu ft per minute
Tank Capacity
1 Pint
Dimensions
241 x 140 x 109mm / 9.5in x5.5in x 4.3in
Weight
1.6kg / 3.5lbs
User Information
(Please complete for your records)
Date Purchased:
/
/
Dealer Stamp:
Model:
.
230V~50Hz AC
20mm Glass 3.15A Fast Blow
Serial No:

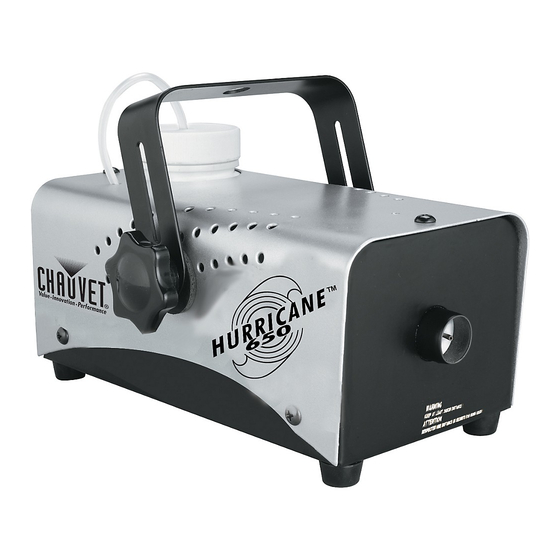

F-650 FOGGER
Hurricane Fogger
F-650
User Guide
Please read these instructions carefully before use
World-wide Headquarters:
3000 North 29th Ct., Hollywood, FL
USA 33020
Tel: +1-954-929-1115 Fax: +1-954-929-5560
www.ChauvetLighting.com
