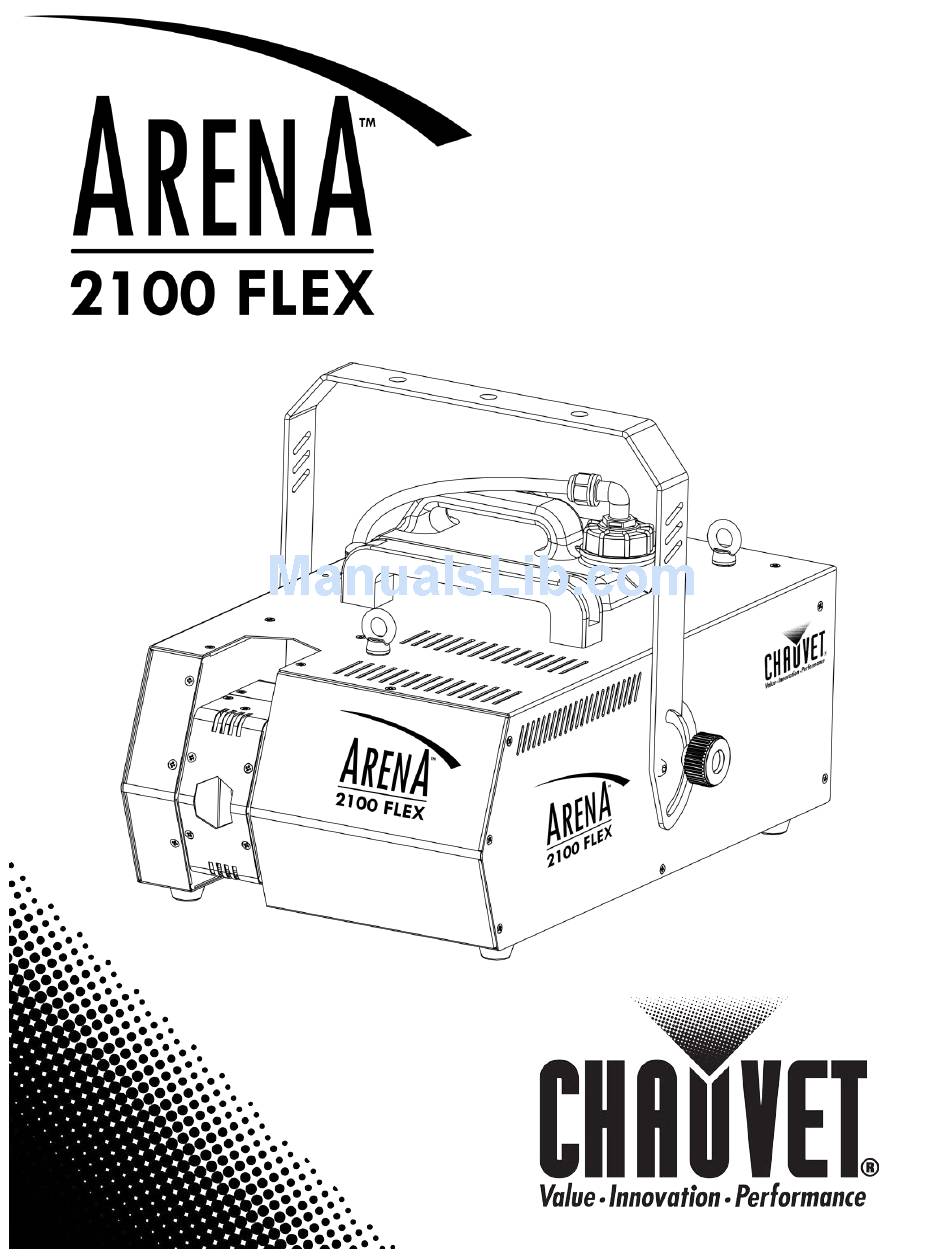

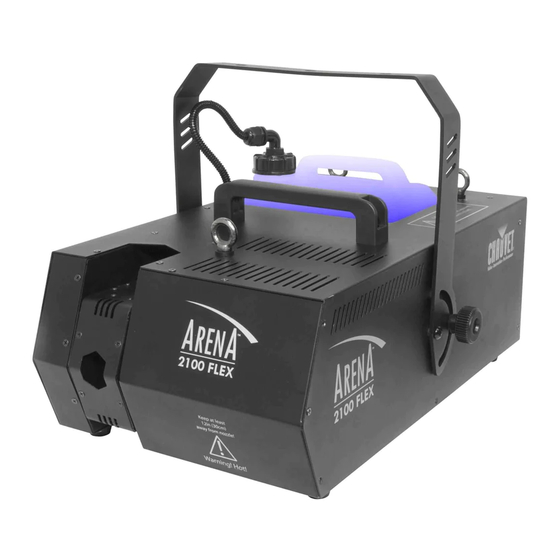

- Page 1 User Manual...
-
Page 2: Table Of Contents
Keychain Remote Operation ................. 10 5. Technical Information ..............11 Fogger Maintenance ................... 11 Storage ....................... 11 Contact Us ....................13 Returning Products to CHAUVET® .............. 13 6. Technical Specifications ..............12 Page 2 of 13 Arena™ 2100 Flex User Manual (Rev. 7) -
Page 3: Before You Begin
If the box or the contents appear damaged from shipping, notify the carrier immediately, not CHAUVET®. Keep the box and all the packing material for inspection. For missing parts or damage not related to shipping, file a claim with CHAUVET®... -
Page 4: Safety Notes
• Use only CHAUVET® water-based fog fluid. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ 2100 Flex. Make sure you use FCQ regularly to increase the life of your fogger. • Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. -
Page 5: Introduction
2. I NTRODUCTION Product Overview 3-pin DMX In Safety Loops (3) 3-pin DMX Out Power Switch Breaker Bracket Adjustment Knob Power In Onboard Remote (Removable) 5-pin DMX Out Wireless Remote Receiver 5-pin DMX In Keychain Remote Control (not to scale) Arena™... -
Page 6: Product Dimensions
Product Dimensions Page 6 of 13 Arena™ 2100 Flex User Manual (Rev. 7) -
Page 7: Setup
4. Plug the product’s power cord into the power outlet and continue using as recommended. If the breaker does not reset (the breaker button will not remain inserted), contact CHAUVET® immediately, as this indicates a possible internal malfunction. Arena™ 2100 Flex User Manual (Rev. 7) Page 7 of 13... -
Page 8: Mounting
Mounting Before mounting this product, read and follow the Safety Notes. Orientation The Arena™ 2100 Flex may be mounted in any position; however, make sure adequate ventilation is provided around the product. • Rigging Before deciding on a location for this product, always make sure that it will be easy to access the unit for maintenance and programming/fluid replenishment purposes. -
Page 9: Operation
4. O PERATION To access the control panel functions, use the four buttons located underneath the display. Button Function Control <FUNCTION> Press to find an operation mode or to back out of the current menu Panel <UP> Press to scroll up the list of options or to find a higher value Operation <DOWN>... -
Page 10: Volume Mode
Use <UP> or <DOWN> to select the duration of haze. Press <FUNCTION> repeatedly until Timer Out shows on the display. Use <UP> or <DOWN> to select the volume of haze. Press <TIMER> to activate the mode with the above settings. Volume Mode To enable the Volume mode, do the following: Connect this product to a suitable power outlet. -
Page 11: Technical Information
It is strongly recommended to test-run the machine on a monthly basis in order to achieve its best fogging condition. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ 2100 Flex. Make sure you use FCQ regularly to increase the life of your fogger. -
Page 12: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 21 in (542 mm) 15.4 in (390 mm) 14.5 in (368 mm) 35 lbs (15.8 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Magnetic (internal) -
Page 13: Contact Us
If you live in the U.S.A., contact CHAUVET® World Headquarters (see below). If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). If you live in any other country, your distributor (see www.chauvetlighting.com for an international distributor directory).
