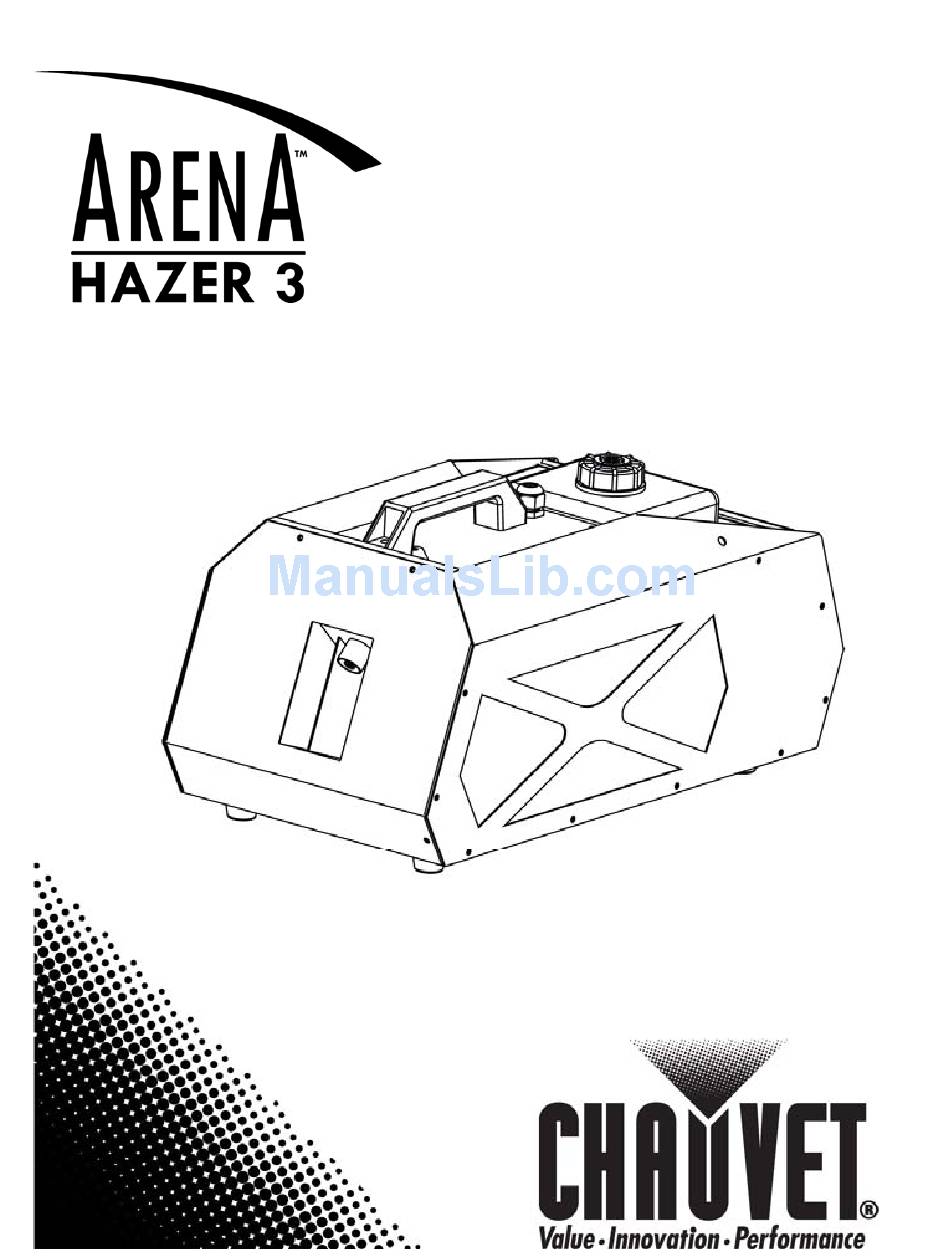

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ... 3 What Is Included ... 3 Unpacking Instructions ... 3 Claims ... 3 Text Conventions ... 3 Icons ... 3 Safety Notes ... 4 2. Introduction ... 5 Product Overview ... 5 3. -
Page 3: Before You Begin
CHAUVET®, upon receipt of the damaged merchandise. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, retain the container and all the packing material for inspection. -
Page 4: Safety Notes
Depending on the amount of fog/haze generated, all fog machines may set off smoke detectors. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ Hazer 3. Make sure you use FCQ regularly to increase the life of your product. -
Page 5: Introduction
2. I NTRODUCTION Product Overview Carrying handle Haze output nozzle LCD screen (Control Panel) Arena™ Hazer 3 User Manual (Rev. 02) Fluid reservoir cover Air filter Rubber feet (4) (3-pin & 5-pin) Power Switch (ON/OFF) Power Input (NEUTRIK® powerCON® A) Main Breaker Page 5 of 16... -
Page 6: Setup
Plug the fixture power cord into the power outlet and continue recommended use. In the event that the breaker will not reset (the breaker button will not remain inserted), contact CHAUVET® immediately, as this indicates a possible internal malfunction. Page 6 of 16... -
Page 7: Mounting
The installer/user is responsible for ensuring that the Arena™ Hazer 3 is rigged safely, following current national, state, and local regulations. CHAUVET® recommends that the unit be inspected every 90 days. If any damage is detected, remedial action should be taken immediately! Fly point Mounting Diagram ... -
Page 8: Operation
4. O PERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Button <MODE/ESC> <DOWN> <UP> <ENTER> Menu Map Mode Interval Set Duration Set Timer Out Volume Out Fan Speed DMX512 Add. Fluid Sensor EMPTY FLUID DMX Channel Assignments and Values... -
Page 9: Configuration (Dmx Mode)
Configuration (DMX Mode) Setting this product to operate in DMX mode will allow you to control it with a DMX controller. Connect this product to a suitable power outlet. Turn this product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket of this product. -
Page 10: Configuration (Stand-Alone Modes)
Configuration (Stand-alone Modes) Timer Mode To enable the Timer mode, do the following: 10. Use <UP> or <DOWN> to select fan speed. Setting this to OFF will 11. Press <TIMER> to activate the mode with the above settings. Volume Mode To enable the Volume mode, do the following: Page 10 of 16 Connect this product to a suitable power outlet... -
Page 11: Technical Information
Cleaning is now complete. Refill with fog liquid. Run the machine briefly to clear any cleaning solution from the pump and heater. FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Arena™ Hazer 3. Make sure you use FCQ regularly to increase the life of your product. -
Page 12: General Troubleshooting
Product does not power up Fixture does not respond to DMX Intermittent DMX Problems If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Page 12 of 16 Possible Cause Excessive load on the circuit ... -
Page 13: Returns Procedure
Be sure to pack the fixture properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper UPS packing or double-boxing is always a safe method to use. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Contact Information World Headquarters CHAUVET®... -
Page 14: Dmx Primer
DMX Primer The USITT DMX512-A data transmission protocol (DMX, from now on) is based on the EIA-485 standard and it has 512 channels (001 to 512). This system requires a controller (DMX controller), one or more DMX compatible fixtures, and a DMX circuit (also known as “DMX universe”) to link the fixtures to the controller. -
Page 15: Dmx Cabling
You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. If you choose to make your own DMX cable, you must use a data-grade cable such... -
Page 16: Technical Specifications
