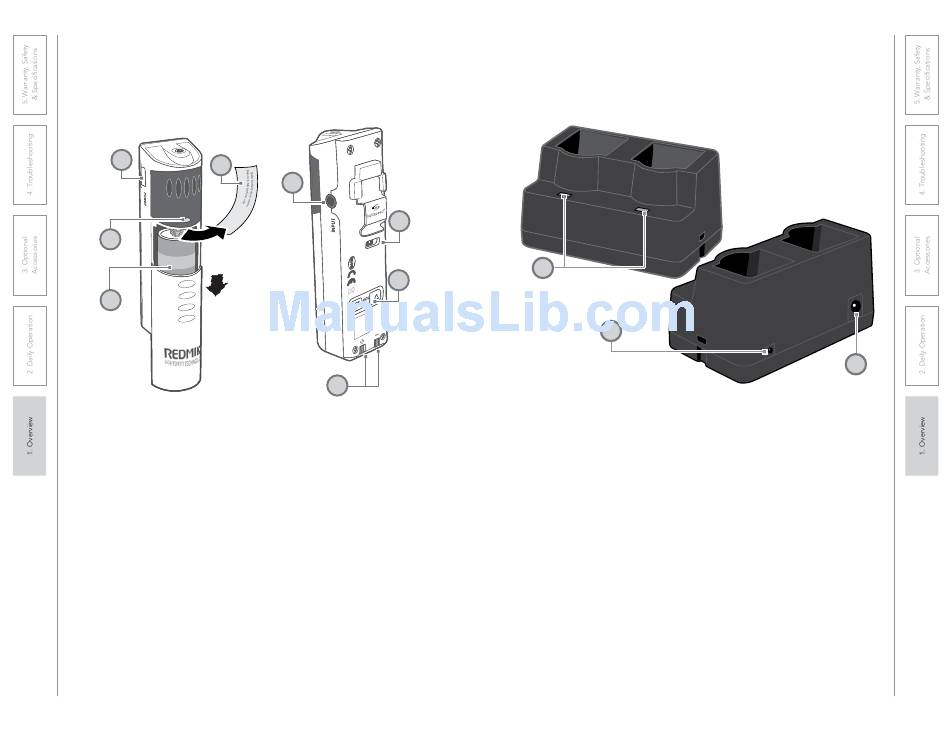

REDMIKE VC (Volume Control) CONTROLS
AND CONNECTIONS
1
2
3
1. POWER/mUTE BUTTON
2. POWER/lOW BATTERY
INDICATOR: A blue light
indicates the REDMIKE VC is on
and fully charged. A red light
indicates a charge is needed.
3. BATTERY COmPARTmENT: To
open, slide the door downward.
The battery should only be
replaced by a Lightspeed AA
rechargeable sensing battery (part
#NH2A27).
4. YEllOW PROTECTIVE TAB:
Slide the battery compartment
door and remove this disposable
protective tab before use.
5. AUDIO/mICROPhONE INPUT:
Use this input to plug in a laptop,
MP3 player or other audio
12
4
5
6
7
8
source to wirelessly transmit
audio to be played through the
system. Alternatively, an external
microphone can be connected.
6. ChANNEl SElECT SWITCh (Ch
A/B): Use this to choose channel
A or B. If you are using a single
microphone, we recommend using
channel A.
7. VOlUmE CONTROlS (UP -
DOWN)
8. ChARgER CONTACTS (+ -):
These contacts interface with the
charging tabs when the REDMIKE
VC is placed in the RMCC cradle
charger.
CRADLE CHARGER CONTROLS AND
CONNECTIONS
1
2
1. ChARgE INDICATORS: The light
glows red while the REDMIKE is
charging. When fully charged, the
light will glow green. A blinking
red light indicates that no battery
is sensed, (REDMIKE Yellow
Protective Tab may not have been
completely removed—see page
12, item 4.) A blinking green LED
means a non-Lightspeed battery
has been installed (possibly an
alkaline battery).
3
2. DC POWER PORT: Connect the
DC power cord here.
3. OPTIONAl ChARgINg PORT:
Plug the charging cord for
the optional REDMIKE Share
microphone here.
