Model GC512
Instruction Manual for

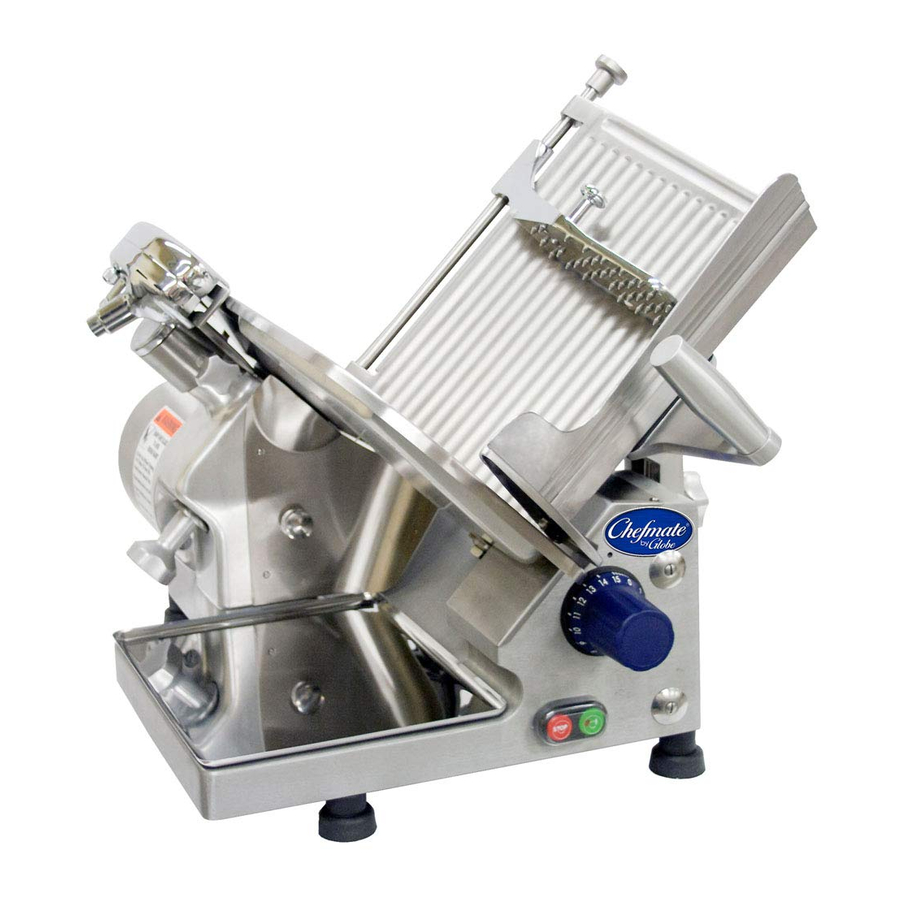

Chefmate Slicer Model GC512
For Service on Your Slicer
1. Visit our website at www.globeslicers.com
(select the Support / Parts drop down).
2. Or call the Globe service department at 937-297-7247 and ask for contact
information for your local service company.
Visit our website for information on additional products available from Globe.
www.globeslicers.com
Slicers, Mixers, Vegetable Cutters, Meat Choppers and Scales
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
Serial #:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC512 and is the answer not in the manual?

Questions and answers

Related Manuals for Chefmate GC512

Summary of Contents for Chefmate GC512

  • Page 1 Serial #: Model GC512 Instruction Manual for Chefmate Slicer Model GC512 For Service on Your Slicer 1. Visit our website at www.globeslicers.com (select the Support / Parts drop down). 2. Or call the Globe service department at 937-297-7247 and ask for contact information for your local service company.

  • Page 2: Table Of Contents

    Index ATTENTION OWNERS AND OPERATORS ....................... 3 KEY COMPONENTS OF THE SLICER ......................4 CHEFMATE SLICER SAFETY TIPS ........................5 INSTALLATION ..............................6-7 OPERATING INSTRUCTIONS ........................... 8 CLEANING ................................. 9-10 KNIFE SHARPENING ............................11-12 SIMPLE MAINTENANCE AND REPAIR ......................13-14 TROUBLESHOOTING GUIDE ...........................

  • Page 3: Attention Owners And Operators

    Attention Owners and Operators Globe’s equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Importantly, unless the operator is adequately trained and supervised, there is a possibility of serious injury. Owners of this equipment bear the responsibility to make certain that this equipment is used properly and safely, strictly follow all the instructions contained in this manual and the requirements of local, state or federal law.

  • Page 4: Key Components Of The Slicer

    Key Components of the Slicer Endweight Knife Cover Food Chute Sharpener Food Chute Handle Knife Cover Release Knob Food Chute Release Knob Slice Deflector Slice Thickness Dial Slicer Table Knife Motor Indicator Light Removable Receiving Tray On/Off Switch Feet Page 4...

  • Page 5: Chefmate Slicer Safety Tips

    DO NOT CATCH SLICES WITH YOUR HAND. Let slices drop onto the receiving area. • BEFORE CLEANING, SHARPENING, SERVICING, OR REMOVING ANY PARTS, always turn slicer off, turn the slice thickness dial clockwise until it stops, remove food chute, and unplug power cord. • USE ONLY CHEFMATE SLICER ACCESSORIES properly installed. Page 5...

  • Page 6: Installation

    Installation UNPACKING 1. Unpack the slicer immediately after receipt. If the machine is found to be damaged, save the packaging material and contact the carrier within fifteen (15) days of delivery. Immediately contact your source of the equipment. You have no recourse to damage after fifteen (15) days. 2.

  • Page 7: Installation

    Installation THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG. THE OUTLET TO WHICH THIS PLUG IS CONNECTED MUST BE PROPERLY GROUNDED. IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG (Fig.

  • Page 8: Operating Instructions

    Operating Instructions SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • NEVER touch this slicer without training and authorization from your supervisor or if you are under 18 years old. Read this instruction manual first. • NEVER OPERATE slicer without knife cover and knife ring guard securely installed. Keep hands and arms away from all moving parts.

  • Page 9: Cleaning

    Cleaning SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • BEFORE CLEANING, SHARPENING, SERVICING, OR REMOVING ANY PARTS, always turn slicer off, turn the slice thickness dial clockwise until it stops, remove food chute, and unplug power cord. • NEVER attempt to clean slicer with the knife running. •...

  • Page 10: Cleaning

    Cleaning 4. Remove the product receiving tray from the base of the slicer for cleaning. BE ALERT. The next steps will expose the knife. 5. Remove the knife cover by rotating the knife cover release knob counterclockwise until it releases (Fig. 10-1). While holding the knobs on the knife cover, carefully lift the knife cover upward to remove.

  • Page 11: Knife Sharpening

    Knife Sharpening SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • NEVER touch rotating knife. • ALWAYS keep hands clear of all moving parts. • ALWAYS turn slicer off and turn slice thickness dial clockwise until it stops, and remove food chute before sharpening.
  • Page 12 Knife Sharpening With the sharpening stones centered over the knife, press down on the sharpener (Fig. 12-1) and while holding it down, lock it into place by retightening the sharpener release knob. SHARPENING THE KNIFE - (Regular Procedure) Start the slicer. Push the grinding stone button #1 (Fig.

  • Page 13: Simple Maintenance And Repair

    ALWAYS turn off slicer and turn slice thickness dial completely clockwise after each use. • USE ONLY Chefmate parts and accessories properly installed. LUBRICATION Various slicer parts need to be lubricated periodically using Globe oil. Globe oil is a light, tasteless, odorless mineral oil that will not contaminate or impart odors or taste to sliced food products.

  • Page 14: Simple Maintenance And Repair

    Simple Maintenance and Repair DO NOT USE VEGETABLE OIL TO LUBRICATE SLICER. VEGETABLE OIL WILL DAMAGE THE SLICER! Sharpener Shafts It is necessary to lubricate the sharpener shafts with Globe oil weekly. 1. Loosen the sharpener release knob. 2. Push the sharpener forward and apply oil to the main shaft that the sharpener moves on (Fig.

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide SYMPTOM CAUSE SOLUTION Slicer will not start Slicer not plugged in Plug in slicer Switch off Turn switch on Knife cover removed or not properly Install knife cover and tighten the installed knife cover release knob Ragged cuts-poor yield Dull knife Sharpen knife-make sure knife and stones are clean...

  • Page 16: Limited Slicer Warranty

    Limited Slicer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year from installation or 18 months from actual shipment date, whichever date occurs first.
