Model GC512
Instruction Manual for

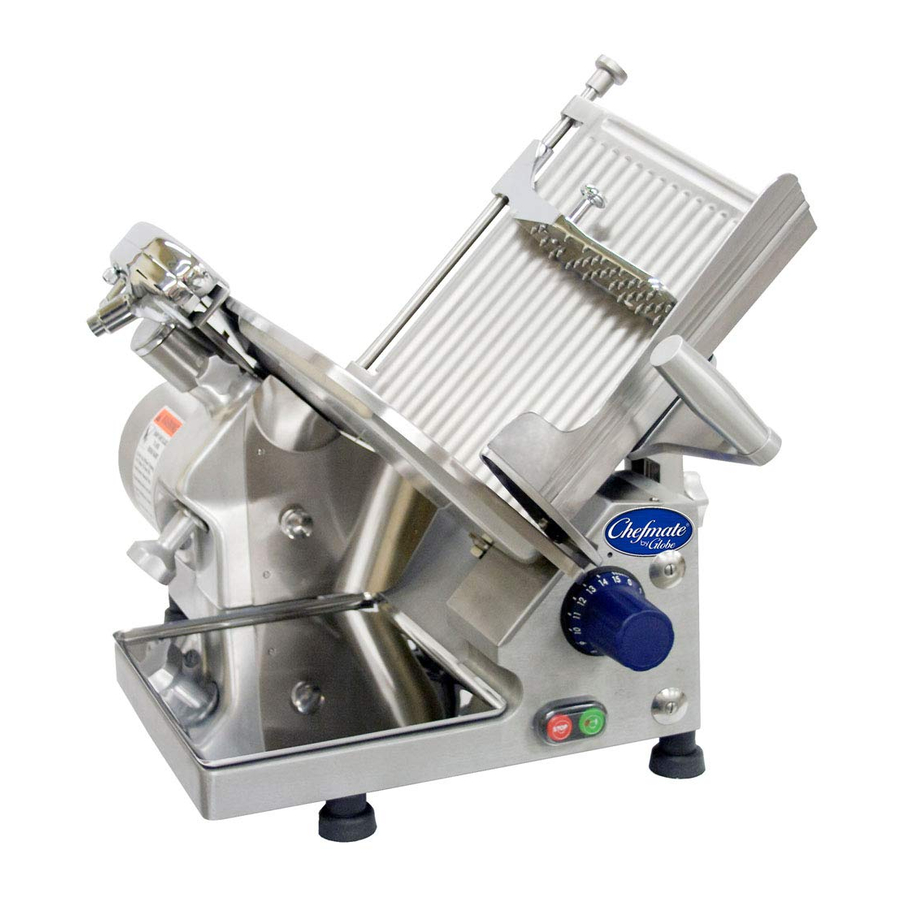

Chefmate™ Slicer Model GC512
For Service on Your Slicer
1. Visit our website at www.globefoodequip.com
2. Or call the Globe service department at 937-299-8625 and ask for contact
information for your local service company.
- IMPORTANT SAFETY NOTICE -
This manual contains important safety instructions which
must be strictly followed when using this equipment.
Visit our website for information on additional products available from Globe.
www.globefoodequip.com
Slicers, Mixers, Countertop Cooking Equipment, Meat Choppers & Scales
WARRANTY REGISTRATION
SCAN THE QR CODE WITH YOUR MOBILE DEVICE OR GO TO
WWW.GLOBEFOODEQUIP.COM
TO FILL OUT AND SUBMIT YOUR WARRANTY REGISTRATION.
www.globefoodequip.com/support/warranty-registration-form
Serial #:
2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chefmate GC512
Summary of Contents for Chefmate GC512
- Page 1 Serial #: 2010 Model GC512 Instruction Manual for Chefmate™ Slicer Model GC512 For Service on Your Slicer 1. Visit our website at www.globefoodequip.com 2. Or call the Globe service department at 937-299-8625 and ask for contact information for your local service company.
-
Page 2: Table Of Contents
Index ATTENTION OWNERS AND OPERATORS ....................... 3 KEY COMPONENTS OF THE SLICER ......................4 CHEFMATE™ SLICER SAFETY TIPS....................... 5 INSTALLATION ..............................6-7 OPERATING INSTRUCTIONS ........................... 8 CLEANING & SANITIZING ..........................9-11 INSPECTION ..............................12 KNIFE SHARPENING ............................12-14 SIMPLE MAINTENANCE AND REPAIR ......................15-16 TROUBLESHOOTING GUIDE ........................... -
Page 3: Attention Owners And Operators
Attention Owners and Operators Globe’s equipment is designed to provide years of safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and is properly maintained. Importantly, unless the operator is adequately trained and supervised, there is a possibility of serious injury. -
Page 4: Key Components Of The Slicer
Key Components of the Slicer Food Chute Slide Rod End Weight Sharpener Knife Cover Cover Food Chute Sharpener Warning Label Food Chute Handle Knife Cover Release Knob Food Chute Release Knob Slice Thickness Dial Slice Deflector Slicer Table Knife Motor Removable Receiving Tray Indicator Light On/Off Switch... -
Page 5: Chefmate™ Slicer Safety Tips
Chefmate™ Slicer Safety Tips SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • NEVER touch this slicer without training and authorization from your supervisor or if you are under 18 years old. Read this instruction manual first. • ONLY install the slicer on a level, nonskid surface that is nonflammable and is located in a clean, well-lighted work area away from children and visitors. -
Page 6: Installation
Installation UNPACKING 1. Unpack the slicer immediately after receipt. If the machine is found to be damaged, save the packaging material and contact the carrier within fifteen (15) days of delivery and immediately contact your source of the equipment. You have no recourse for damage after fifteen (15) days of receipt. 2. - Page 7 Installation THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG. THE OUTLET TO WHICH THIS PLUG IS CONNECTED MUST BE PROPERLY GROUNDED. IF THE RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG (Fig.
-
Page 8: Operating Instructions
Operating Instructions SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY: • NEVER touch this slicer without training and authorization from your supervisor or if you are under 18 years old. Read this instruction manual first. • NEVER OPERATE slicer without knife cover, knife sharpener, and knife ring guard securely installed. Keep hands and arms away from all moving parts. -
Page 9: Cleaning & Sanitizing
Cleaning & Sanitizing SHARP KNIFE BLADE TO AVOID SERIOUS PERSONAL INJURY TO THE SLICER OPERATOR AND YOUR CUSTOMERS: • BEFORE CLEANING, SHARPENING, SERVICING OR REMOVING ANY PARTS, always turn slicer off, turn the slice thickness dial clockwise until it stops, and unplug the power cord. •... - Page 10 Cleaning & Sanitizing DISASSEMBLY & CLEANING 1. Turn the slicer off, turn the slice thickness dial clockwise until it stops so the table covers the knife’s edge, and unplug the power cord. 2. Remove the end weight and slide rod. Unscrew the slide rod (Fig. 10-1) from the base of the food chute releasing the end weight and slide rod.
-
Page 11: Cleaning & Sanitizing
Cleaning & Sanitizing 9. Next, clean the knife. Soak a clean cloth in a mild detergent and warm water solution. Ring out excess water from cloth. Carefully insert the cloth between the knife and the knife ring guard (Fig. 11-1). While holding the cloth between the knife and the knife ring guard, work it along the entire backside of the knife. -
Page 12: Inspection
INSPECTION INSPECTION AFTER CLEANING, INSPECT THE SLICER FOR DAMAGED OR BROKEN PARTS INCLUDING GASKETS & SEALS. A thorough visual inspection should be made of the entire slicer and its parts. Globe urges the owner/ operator to inspect all components often and for an authorized service agent to inspect the entire slicer at least every 6 months, including all parts that are detachable for cleaning and sanitizing. - Page 13 Knife Sharpening PREPARING TO SHARPEN To prevent illness or death caused by the spread of food-borne pathogens, it is important to properly clean and sanitize the entire slicer as any surface of the slicer can become contaminated. It is the responsibility of the slicer owner/operator to follow all guidelines, instructions and laws as established by your local and state health departments and the manufacturers of chemical sanitizer.
- Page 14 Knife Sharpening SHARPENING THE KNIFE - Regular Procedure Start the slicer. Push the grinding stone button #1 (Fig. 14-1) and pull the honing stone button #2 (Fig. 14-1) at the same time so both stones make contact with the knife. Maintain pressure on the buttons for 5-10 seconds. TURN SLICER OFF before inspecting.
-
Page 15: Simple Maintenance And Repair
ALWAYS turn off slicer and turn slice thickness dial completely clockwise after each use. • USE ONLY PROPERLY INSTALLED Chefmate™ parts and accessories. LUBRICATION Various slicer parts need to be lubricated periodically using Globe oil. Globe oil is a light, tasteless, odorless mineral oil that will not contaminate or impart odors or taste to sliced food products. - Page 16 Simple Maintenance and Repair DO NOT USE VEGETABLE OIL TO LUBRICATE SLICER. VEGETABLE OIL WILL DAMAGE THE SLICER! Sharpener Shafts It is necessary to lubricate the sharpener shafts with Globe oil weekly. 1. Loosen the sharpener release knob. 2. Push the sharpener forward and apply oil to the main shaft that the sharpener moves on (Fig.
-
Page 17: Troubleshooting Guide
Troubleshooting Guide ISSUE CAUSE SOLUTION Slicer will not start. Slicer not plugged in. Plug in slicer. Switch off. Turn switch on. Knife cover removed or not properly Install knife cover and tighten the installed . knife cover release knob. Ragged cuts-poor yield. Dull knife. - Page 18 Notes: Page 18...
- Page 19 Notes: Page 19...
-
Page 20: Limited Slicer Warranty
Limited Slicer Warranty Globe Food Equipment Company (“GFE”) warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year from installation date or factory shipment date (not to exceed 18 months) whichever date occurs first.
