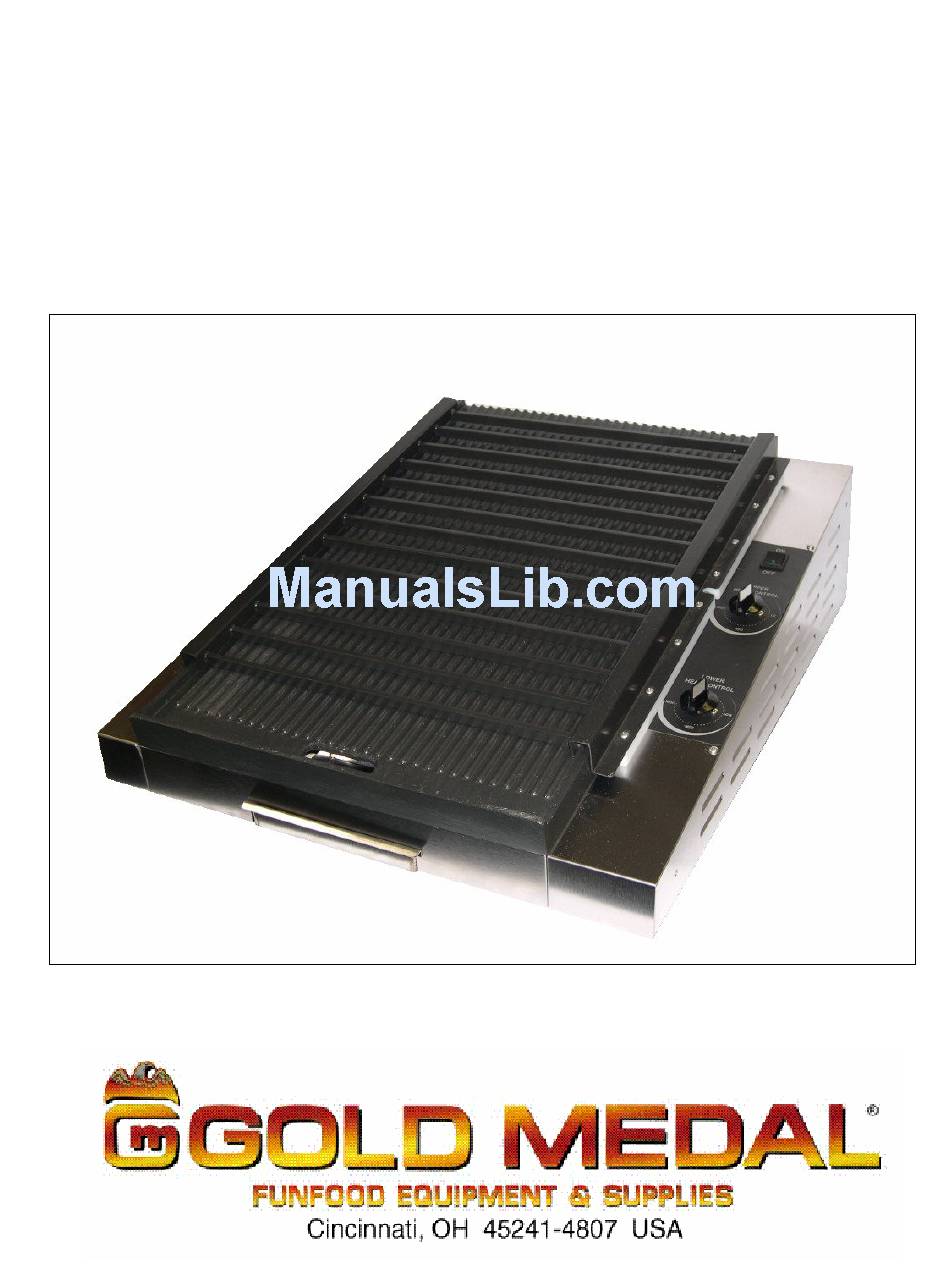

- Page 1 Part No. 85073 Revised: May 2006 FENCE GRILLS Instruction Manual Models #8160 AND #8161...
-
Page 2: Safety Precautions
__________________________________________________________________________________Fence Grills SAFETY PRECAUTIONS Model # 8160 & # 8161... -
Page 3: Electrical Requirements
Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for your grill is 120 Volt, 60 Cycle, single phase. The 8160 will draw a maximum of 12.6 amps and the 8161 a maximum of 14.6 amps. Your electrician must furnish sufficient current for the proper operation of your machine. -
Page 4: Controls And Their Functions
Cook for 20-30 minutes and check product temperature with thermometer provided. (Should be 150 Degrees F.) Adjust heat as necessary to raise the temperature of the food to 150 degrees Fahrenheit. Carefully remove and serve product. Model # 8160 & # 8161... -
Page 5: Care And Cleaning
4. Wash drip pan as necessary with soap and water. 5. Clean stainless steel portion of unit with damp cloth and dry. 6. Clean cook top and fence with Watchdog Concession Equipment Cleaner. (Gold Medal Item #2580) Model # 8160 & # 8161... -
Page 6: Maintenance Instructions
Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (513) 769-7676 (800) 543-0862 Fax: (513) 769-8500 E-Mail – info@gmpopcorn.com Model # 8160 & # 8161... - Page 7 __________________________________________________________________________________Fence Grills Parts Breakdown – Top View Model # 8160 & # 8161...
- Page 8 __________________________________________________________________________________Fence Grills Parts Breakdown – Side View Model # 8160 & # 8161...
- Page 9 __________________________________________________________________________________Fence Grills Parts Breakdown – Bottom View Model # 8160 & # 8161...
- Page 10 __________________________________________________________________________________Fence Grills Bottom Plate Assembly 21,22 Model # 8160 & # 8161...
- Page 11 69701 Crossbar 85040 85040 Element Clamp 85027 85027 Element Clamp Retainer 85108 85110 Heat Element 47328 47328 Glide 49123 49123 Crutch Tip 85020 85048 Bottom Cover 85051 85051 Fence Glides 69704 69704 Roller Bearing Model # 8160 & # 8161...
- Page 12 __________________________________________________________________________________Fence Grills Electrical Schematic Model # 8160 & # 8161...
-
Page 13: Warranty
__________________________________________________________________________________Fence Grills WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
