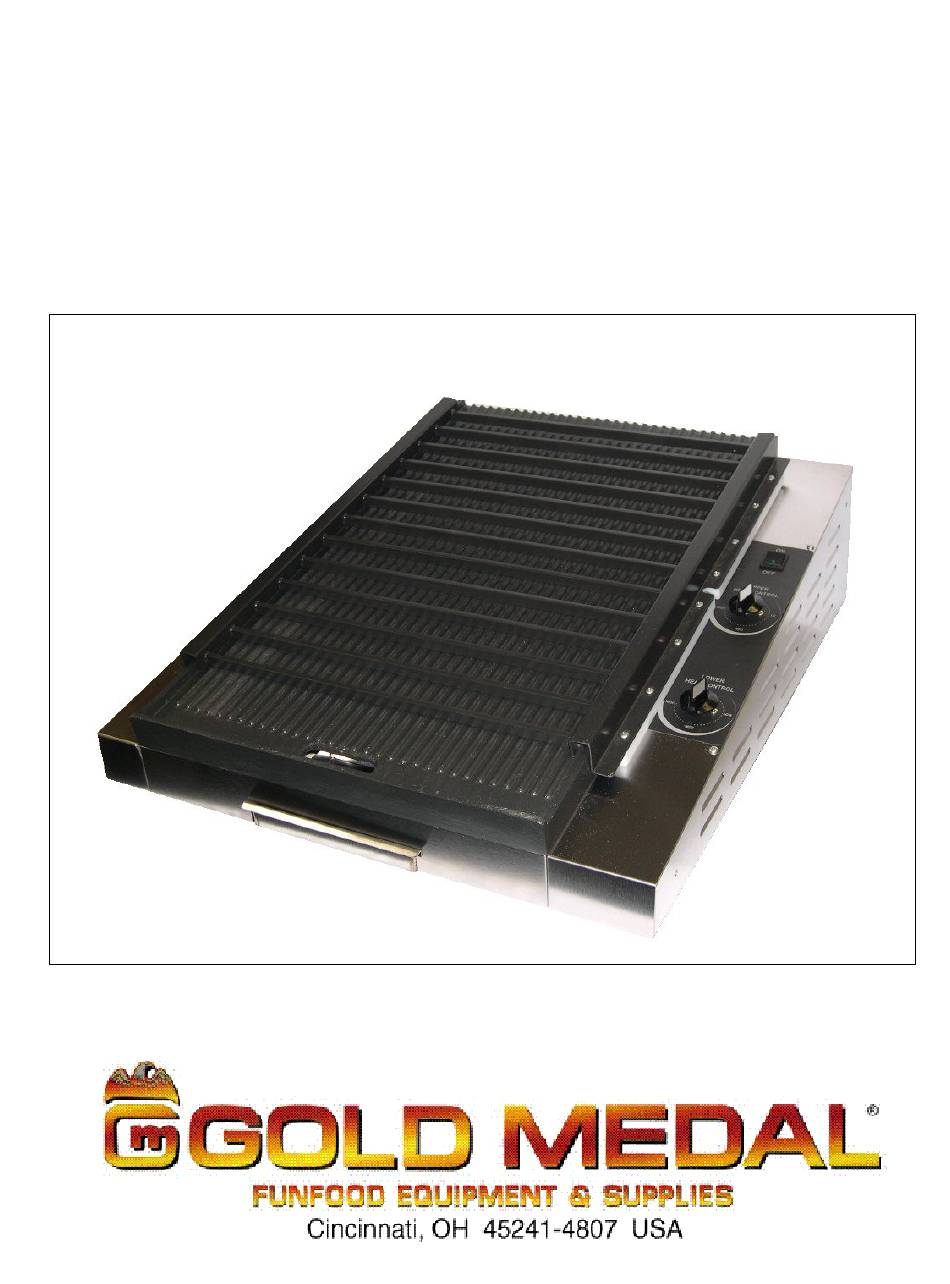

- Page 1 Part No. 85073EX Revised: June 2004 EXPORT FENCE GRILLS Instruction Manual Models #8160EX AND #8161EX...
-
Page 2: Safety Precautions
____________________________________________________________________________Export Fence Grills SAFETY PRECAUTIONS Model # 8160EX & # 8161EX... - Page 3 Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for your grill is 240 Volt, 50 Cycle, single phase. The 8160EX will draw a maximum of 6.3 amps and the 8161EX a maximum of 7.3 amps. Your electrician must furnish sufficient current for the proper operation of your machine.
-
Page 4: Controls And Their Functions
Cook for 20-30 minutes and check product temperature with thermometer provided. (Should be 150 Degrees F.) Adjust heat as necessary to raise the temperature of the food to 150 degrees Fahrenheit. Carefully remove and serve product. Model # 8160EX & # 8161EX... -
Page 5: Care And Cleaning
4. Wash drip pan as necessary with soap and water. 5. Clean stainless steel portion of unit with damp cloth and dry. 6. Clean cook top and fence with Watchdog Concession Equipment Cleaner. (Gold Medal Item #2580) Model # 8160EX & # 8161EX... -
Page 6: Maintenance Instructions
Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (513) 769-7676 (800) 543-0862 Fax: (513) 769-8500 E-Mail – info@gmpopcorn.com Model # 8160EX & # 8161EX... - Page 7 ____________________________________________________________________________Export Fence Grills Parts Breakdown – Top View Model # 8160EX & # 8161EX...
- Page 8 ____________________________________________________________________________Export Fence Grills Parts Breakdown – Side View 8,12 Model # 8160EX & # 8161EX...
- Page 9 ____________________________________________________________________________Export Fence Grills Parts Breakdown – Bottom View Model # 8160EX & # 8161EX...
- Page 10 ____________________________________________________________________________Export Fence Grills Bottom Plate Assembly Model # 8160EX & # 8161EX...
- Page 11 Right Side Weldment 85060 85060 Motor Shield 87049 87049 Knob, Heat Controls 87532EX 87532EX Motor, 120v , ccw 85000 85035 Cook Plate 85040 Small Element Clamps 47328 47328 Glide 49123 49123 Crutch Tip Not Shown Model # 8160EX & # 8161EX...
- Page 12 ____________________________________________________________________________Export Fence Grills Electrical Schematic Model 8160EX & 8161EX Model # 8160EX & # 8161EX...
-
Page 13: Warranty
____________________________________________________________________________Export Fence Grills WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
