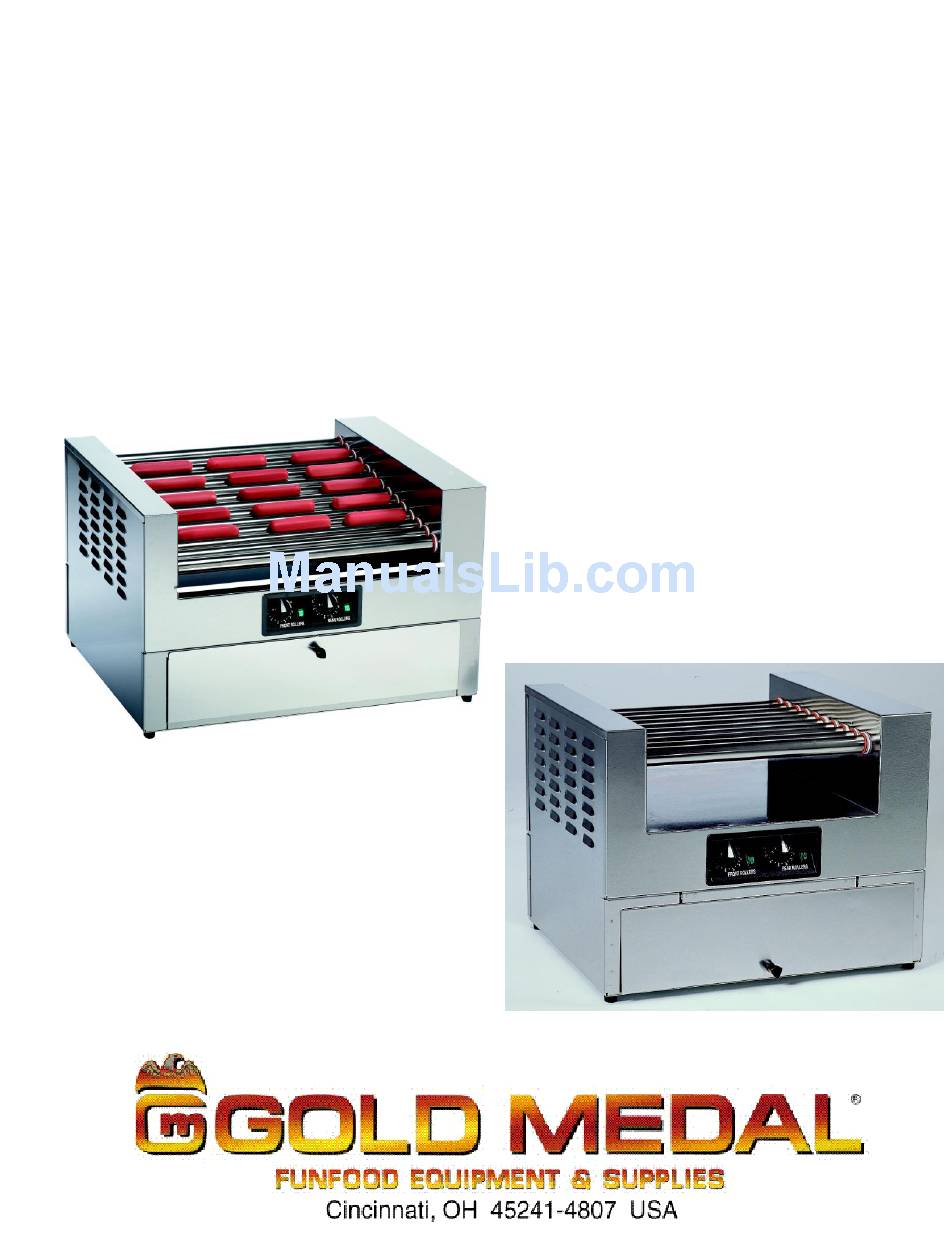

- Page 1 Part No. 88198EX Cabinet Combo Instruction Manual Roller Grill Bun Model #8322EX, #8324EX, #8324SLX, #8323EX, #8323SLX, #8423EX Model #8423EX Model #8324EX...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any...
-
Page 4: Installation
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Electrical Requirements
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
Flipping this switch to the "ON" position energizes the motor that turns the rollers. This switch can be used alone or with the heat turned on. HEAT CONTROL Turning this control counter-clockwise increases the amount of heat to the rollers. THERE ARE TWO SETS OF THESE CONTROLS, ONE FOR EACH SET OF ROLLERS 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX... -
Page 7: Care And Cleaning
Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. -
Page 8: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX... -
Page 9: Ordering Spare Parts
5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online: Phone: (800) 543-0862 (513) 769-7676 Fax: (800) 542-1496 (513) 769-8500 E-mail: info@gmpopcorn.com Web Page: gmpopcorn.com 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX... - Page 10 #10 Flat Washer S.S. Mounting Bracket (Order a Master Link for each RH Idler Brkt Drive Chain being ordered.) Idler Pivot General image shown for parts reference only. (Number of rollers and roller angle may vary.) 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX...
-
Page 11: Parts List
Export Roller Grill Bun Cabinet Combo PARTS LIST 8322EX 8324EX 8323EX 8423EX 8424EX 8324SLX 8323SLX Part No Part No Part No Part No Part No Part No Part No Description 87933 87933 88171 88171 87933 87933 Outer Chain Guard 87934... -
Page 12: Wiring Diagram
Export Roller Grill Bun Cabinet Combo WIRING DIAGRAM Models #8324EX, #8324SLX, #8323EX, #8323SLX 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX... - Page 13 Export Roller Grill Bun Cabinet Combo WIRING DIAGRAM Models #8423EX 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX...
- Page 14 Export Roller Grill Bun Cabinet Combo WIRING DIAGRAM Models #8322EX 8322EX, 8324EX/SLX, 8323EX/SLX, 8423EX...
-
Page 15: Warranty
