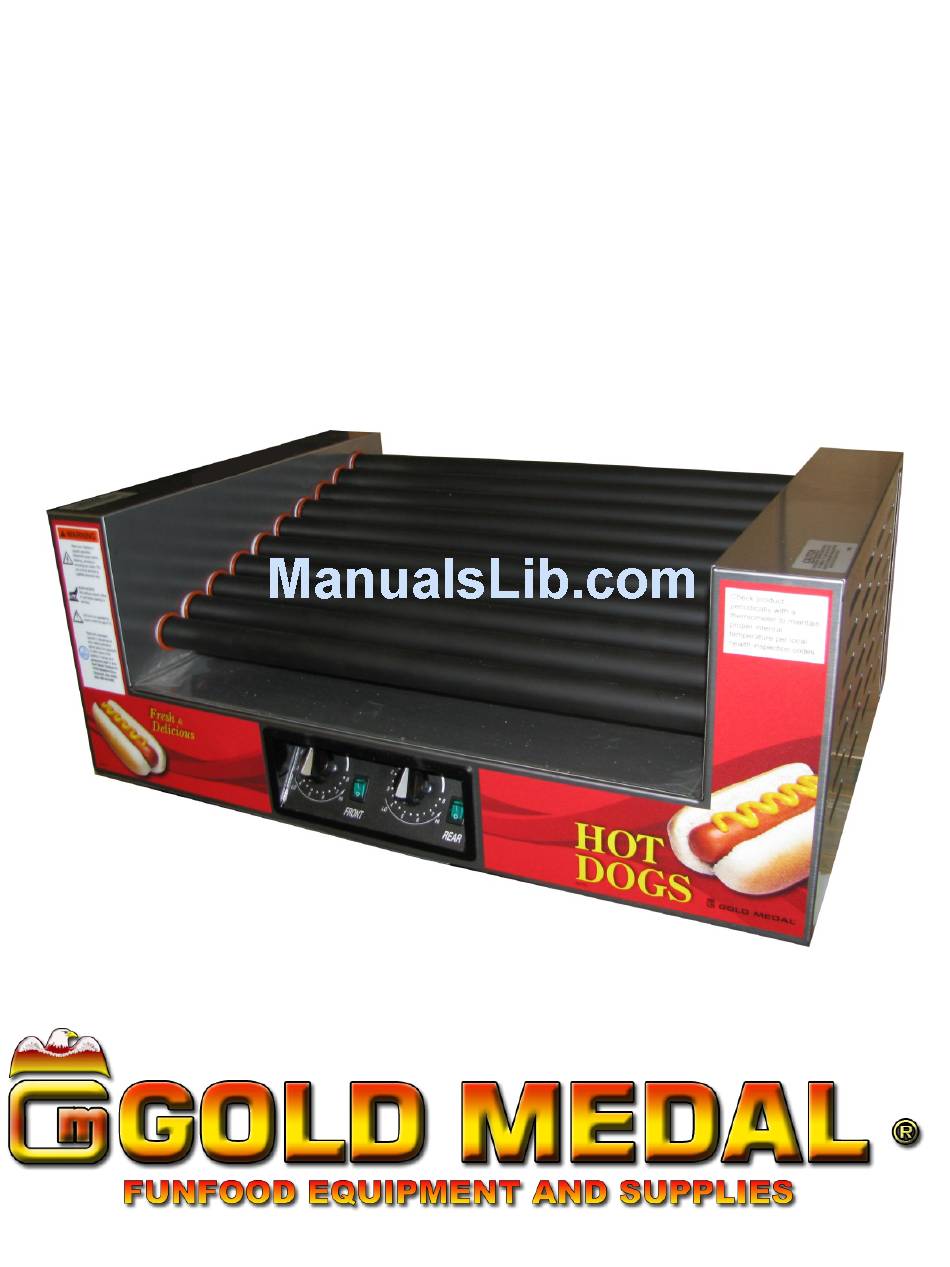

- Page 1 Hot Dog Roller Grills Part No. 87630 Instruction Manual Model No. 8023, 8023PE, 8024, 8025 Model No. 8023SL, 8024SL, 8025SL Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL SAFETY PRECAUTIONS http://www.gmpopcorn.com Page 2... -
Page 3: Knob
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL GENERAL INSTRUCTIONS CHECKING SHIPMENT Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. -
Page 4: Maintenance Instructions
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL MAINTENANCE INSTRUCTIONS http://www.gmpopcorn.com Page 4... - Page 5 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Pg. 5-10) Ant - Rotation Teflon Bushing (20) P.N. 87589 O-Ring (20) 8023 Medium Roller Assembly (10) P.N. 87511 P.N. 88232 8024 Short Roller Assembly (10) P.N.
-
Page 6: Parts Breakdown
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Continued) Heat Control (2) Switch DSPT Rocker (2) P.N. 87297 P.N. 42532 Motor 120V CCW (1) P.N. 87532 (Grey Fan) Motor 120V CW (1) P.N. 87531 (Grey Fan) http://www.gmpopcorn.com... - Page 7 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Continued) Flat Roller Machine Right Hand Side View Positraction Sprocket (8) P.N. 87988 Assembly MTG Bracket (2) Insulator Board (2) Outer Retainer (8) P.N. 88469 P.N.
- Page 8 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Continued) Flat Roller Machine Left Hand Side View 90W Heat Element (10) Model No. 8023 (All) P.N. 88123 Model No. 8024 (All) Support Element (2) P.N.
- Page 9 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Continued) Slanted Roller Machine Right Hand Side View Positraction Sprocket (8) P.N. 87988 Assembly MTG Bracket (2) Outer Retainer (8) Insulator Board (2) P.N. 88469 P.N.
-
Page 10: Models P
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL PARTS BREAKDOWN (Continued) Slanted Roller Machine Left Hand Side View 90W Heat Element (10) Model No. 8023 (All) Support Element (2) P.N. 88123 P.N. 87900 Model No. 8024 (All) P.N. - Page 11 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL ORDERING SPARE PARTS 1. Identify the worn or broken part by checking it with the illustrations and parts list. 2. When ordering parts, include part number, part name, and quantity required.
-
Page 12: Wiring Diagram
Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL WIRING DIAGRAM http://www.gmpopcorn.com Page 12... - Page 13 Hot Dog Roller Grill Model No. 8023, 8023PE, 8024, 8025, 8023SL, 8024SL, 8025SL WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our...
