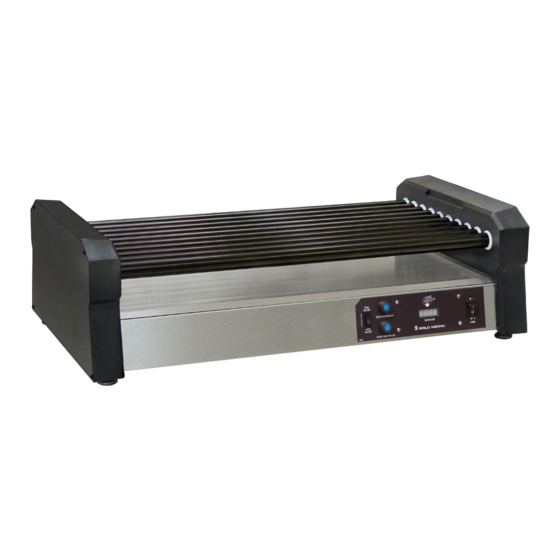

- Page 1 Instruction Manual ® Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Model 8552-00-011 Model 8550-00-010 Model 8551-00-010 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2018 Gold Medal Products Co. Part No. 110230...
-
Page 2: Table Of Contents
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Table of Contents SAFETY PRECAUTIONS ..........................3 INSTALLATION INSTRUCTIONS ......................5 Inspection of Shipment ..............................5 Manual ....................................5 Model Description ................................5 Items Included with this Unit..........................5 Setup ....................................5... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 6: Feet Spacer Installation
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) 3. The Roller Grill is equipped with stand locators on each end of the unit for a Food Shield option (sold separately), reference image below for mounting a Food Shield, if desired. -
Page 7: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by a special cord or assembly available from Gold Medal Products Co. or its service agent. 038_062714 gmpopcorn.com Page 7... -
Page 8: Operating Instructions
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) OPERATING INSTRUCTIONS There are two separate heating zones on the Roller Grill (front zone and rear zone). Temperature for each zone is controlled independently. After startup, one zone can be used to hold product at serving temperature, while the other zone is used to bring additional product up to serving temperature. -
Page 9: Operating Instructions
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Hi Heat Power Switch Rear Rollers Front/Rear Hi Heat Digital Heat Indicator Light Select Switch Front Rollers Display (on the Digital Display) Digital Controls View... -
Page 10: Programming The Digital Temperature Control
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Programming the Digital Temperature Control A digital control heating profile for the unit was preset at the factory. This section describes the One Touch Control heating profile, how to do an initial setup check of a new unit, and how to adjust/program the heating profile inputs for each zone. -
Page 11: Initial Setup Check Of The Heating Profile
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Initial Setup Check of the Heating Profile The heating profile programmed at the factory is setup to heat refrigerated, standard size hot dogs (at a ratio of 6 per pound) to a serving temperature of 160°F (set point temperature). -
Page 12: Programming The Three Inputs
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Programming the Three Inputs To return to normal operating mode at any time while in program mode, turn the Power Switch OFF, then back ON. -
Page 13: Care And Cleaning
Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. -
Page 14: Maintenance Instructions
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 16: Cabinet Front View - Parts Breakdown
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Cabinet Front View – Parts Breakdown See Roller Assembly Parts List Large Roller Grill shown for general parts reference. gmpopcorn.com Page 16... - Page 17 Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Cabinet Front/Left View – Parts List Part Number Item Part Description 8550-00-010 8551-00-010 8552-00-010 8550-00-011 8551-00-011 8552-00-011 SCREW #8-32X3/8 PAN HD PH 74141 74141 74141...
-
Page 18: Cabinet Rear/Bottom View - Parts Breakdown
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Cabinet Rear/Bottom View – Parts Breakdown Connectors (2, 3, or 5 Position) 6, 7, 8 9, 7, 8 10, 11 12, 13 25, 26 21 23... - Page 19 Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Cabinet Rear/Bottom View – Safety Labels – Parts List Part Number Item Part Description 8550-00-010 8551-00-010 8552-00-010 8550-00-011 8551-00-0011 8552-00-011 SWITCH, ROCKER SPDT 55050 55050...
-
Page 20: Safety Labels
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Safety Labels Unit Labels Power Cord Label Item Part Description Part Number LABEL 111931 MAIN GROUND LABEL 42375 CAUTION CORD SET LABEL 102032 WARNING LABEL CORD... -
Page 21: Wiring Diagram
Hot Diggity Pro Series One Touch Control Model Series: 8550, 8551, 8552 (010 and 011) Wiring Diagram Model Series 8550, 8551, 8552 (One Touch Control) gmpopcorn.com Page 21... -
Page 22: Warranty
© 2018 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
