Summary of Contents for Gold Medal 8022

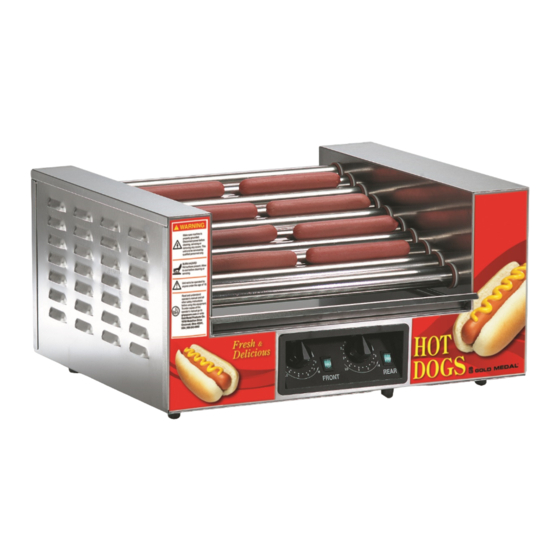

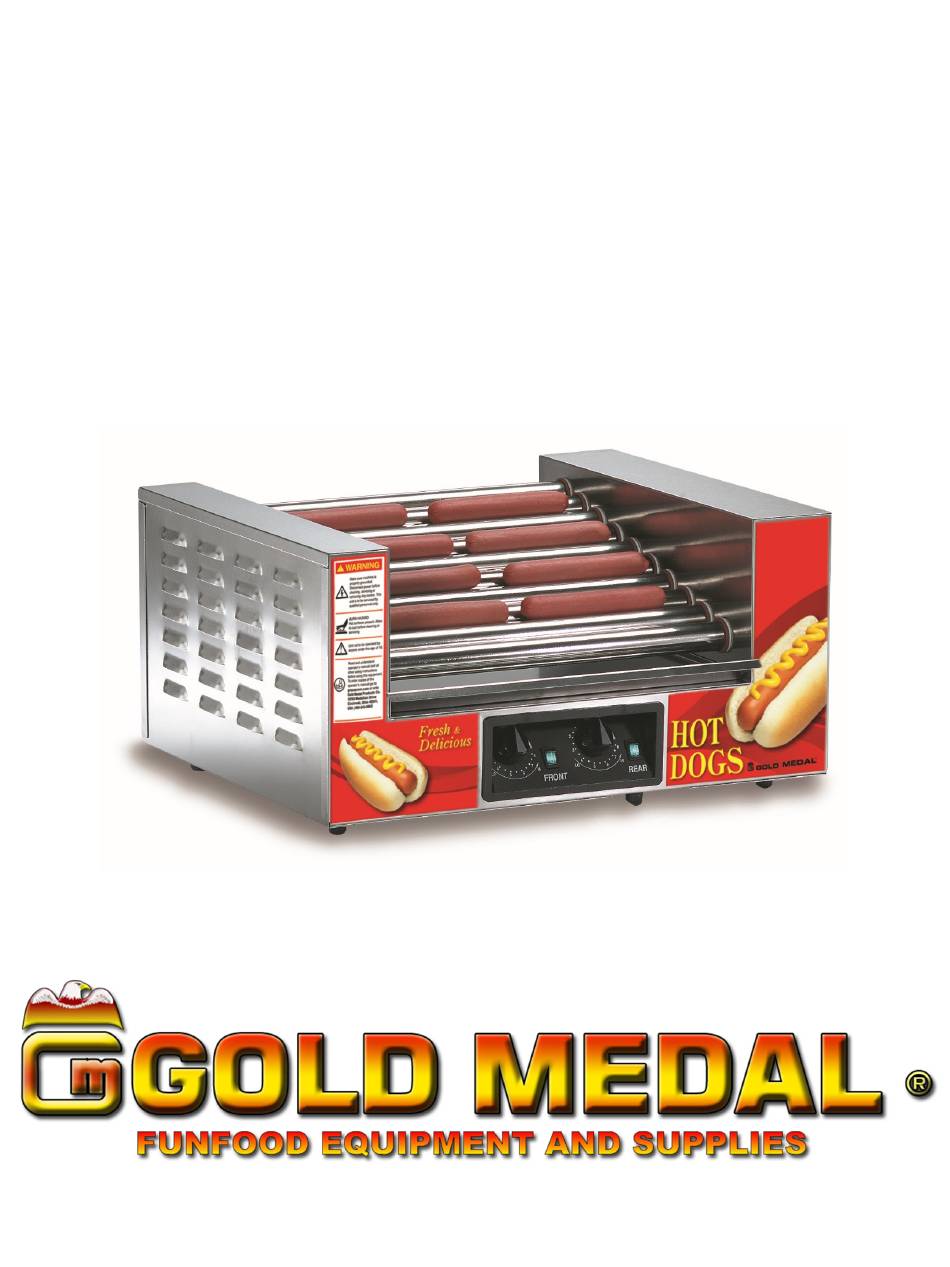

- Page 1 Part No. 87630 Hot Dog Roller Grills Model No. 8022, 8022PE, 8023, 8023SL, 8023PE, 8024, 8024PE, 8024SL, 8025, 8025SL Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL SAFETY PRECAUTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. - Page 3 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL SAFETY PRECAUTIONS (CONTINUED) WARNING DO NOT allow direct contact of this equipment by the public when used in food service locations. Only personnel trained and experienced in the equipment operation may operate this equipment.
-
Page 4: Inspection Of Shipment
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). -
Page 5: Before You Plug In Machine
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Before You Plug In Machine 1. Make sure all machine switches are in the OFF position before plugging the equipment into the receptacle. 2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the power supply cord. -
Page 6: Care And Cleaning
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL CARE AND CLEANING DANGER Machine must be properly grounded to prevent electrical shock to personnel. DO NOT immerse in water. Always unplug the equipment before cleaning or servicing. -
Page 7: Maintenance Instructions
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 8: Ordering Spare Parts
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. 2. Use only approved replacement parts when servicing this unit. -
Page 9: Parts Breakdown
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Pg. 5-10) Red O-Ring All Models (Part No. 87511) Roller Assemblies 8022 (Part No. 88291) White Teflon Bushing 8022PE (Part No. 88291PE) All Models (Part No. - Page 10 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Continued) Heat Control All Models (Part No. 87297) DPST Rocker Switch All Models (Part No. 42532) 120V CCW Motor (Black Fan) All Models (Part No. 87532) 120V CW Motor (Grey Fan) All Models (Part No.
- Page 11 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Continued) Flat Roller Machine Right Hand Side View Tube Cover Plate, Non-Drive End Positraction Sprocket All Models (Part No. 111253) All Models (Part No. 87988)
- Page 12 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Continued) Flat Roller Machine Left Hand Side View Idler Bracket Assembly All Models (Part No. 68707) Idler Sprocket All Models (Part No. 69824) Idler Pivot ¾”...
- Page 13 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Continued) Slanted Roller Machine Right Hand Side View Tube Cover Plate, Non-Drive End Positraction Sprocket All Models (Part No. 111253) All Models (Part No. 87988)
- Page 14 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Parts Breakdown (Continued) Slanted Roller Machine Left Hand Side View Idler Bracket Assembly All Models (Part No. 68707) Idler Sprocket All Models (Part No. 69824) Idler Pivot ¾”...
-
Page 15: Wiring Diagram
Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Wiring Diagram 8022 Models http://www.gmpopcorn.com Page... - Page 16 Hot Dog Roller Grill Model No. 8022, 8022PE, 8023, 8023PE, 8023SL, 8024, 8024PE, 8024SL, 8025, 8025SL Wiring Diagram 8023, 8024 & 8025 Models http://www.gmpopcorn.com Page...
- Page 17 © 2016 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
