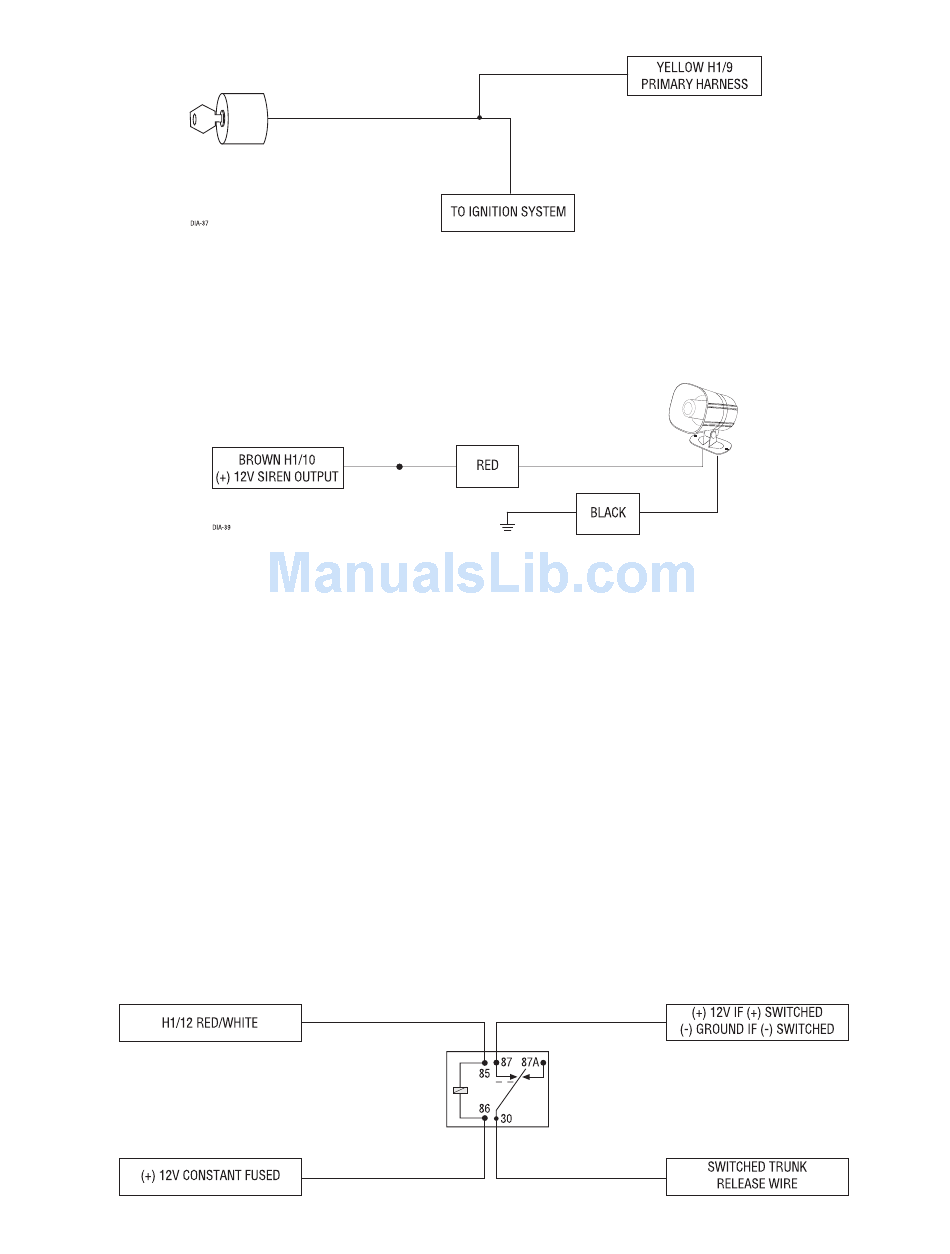

H1/10 BROWN (+) SIREN OUTPUT
Connect this to the red wire of the Revenger
preferably at the same point you connect the control module's black ground wire.
H1/11 RED (+)12V CONSTANT POWER INPUT
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or the constant
12V supply to the ignition switch.
NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15 fuse
in the harness for this purpose. This fuse protects the module itself.
H1/12 RED/WHITE 200 MA (-) CHANNEL 2 OUTPUT
When the system receives the code controlling channel 2 for longer than 1.5 seconds, the red/white will supply
an output as long as the transmission continues. This is often used to operate a trunk/hatch release or other
relay/driven function.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! The transis-
torized output can only supply 200 mA of current. Connecting directly to a solenoid, motor, or other
high-current device will cause it to fail.
© 2000 Directed Electronics, Inc. Vista, CA
®
siren. Connect the black wire of the siren to (-) chassis ground,
7
