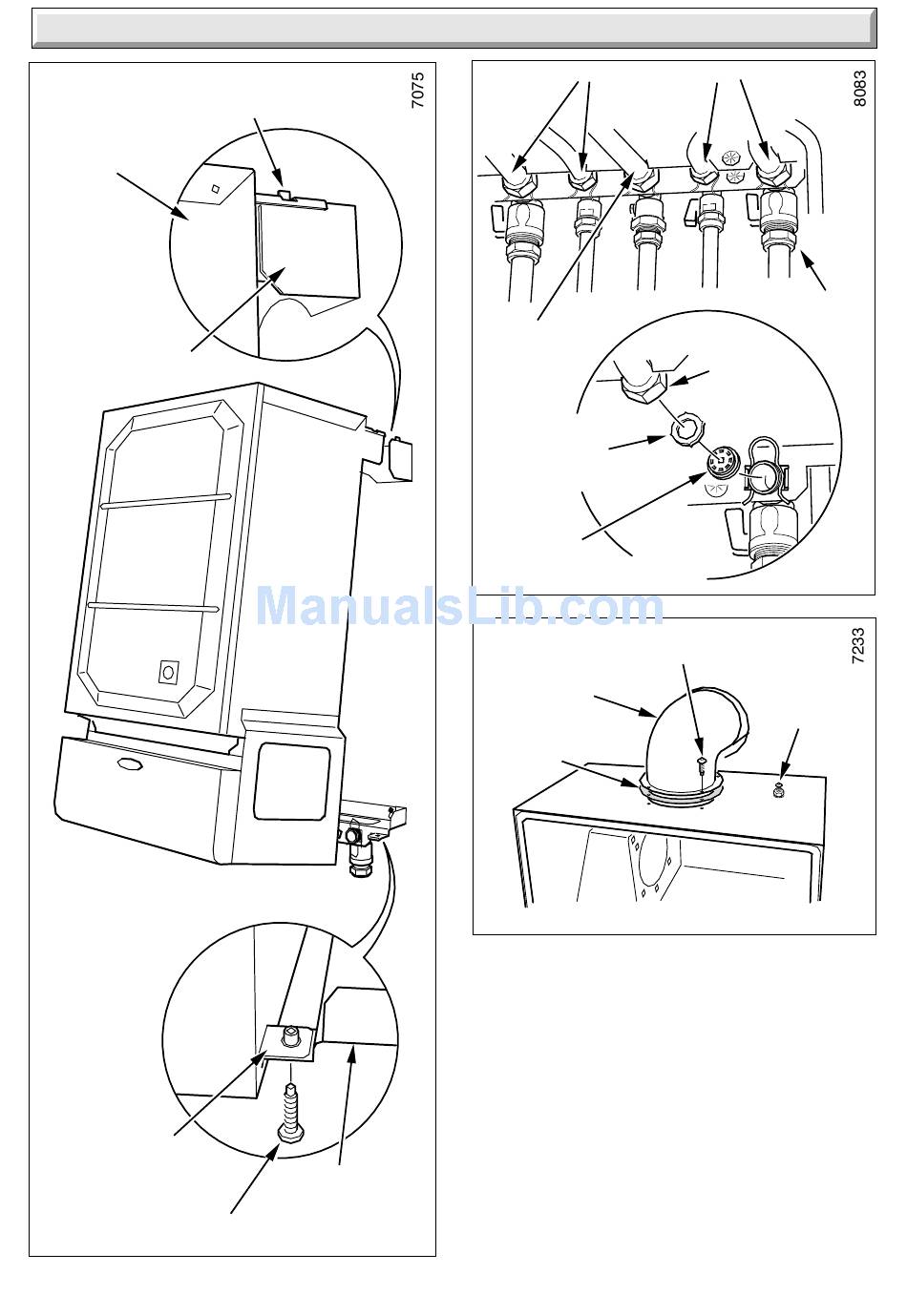

RETAINING LUG
BOILER
TOP MOUNTING
BRACKET
BOILER
SECURING LUG
Note: The lug must
be positioned on top
of the service cock
bracket
SECURING
SCREW (2)
8 Mounting the Boiler and Flue Fitting
SERVICE COCK
BRACKET
Diagram 8.3
BOILER WATER PIPES
GAS SUPPLY
PIPE
SEALING
WASHER (4)
(INSERT INTO
TUBING NUT)
FLOW
RESTRICTOR
(DOMESTIC WATER INLET)
SECURING
SCREW (4)
FLUE ELBOW
(REAR FLUE
SHOWN)
RESTRICTOR/
GASKET
17
SERVICE
COCKS (4)
TUBING
NUT
Diagram 8.4
PRODUCTS
PROBE
Diagram 8.5
221680G
