Glow-worm COMPACT 100p Instructions For Installation And Operation Manual page 15

Note: Should any one of the flue sections require cutting to
obtain desired flue system length, cut at the end opposite the
expanded end.
If the boiler is not to be fitted for some time cover the hole in the
wall.
7.3 Internal Access Flue
If access to the outside wall is not practical, the flue system can
be installed from inside. Use of the optional wall liner kit is
required.
7.4 Top Outlet Rear Flue Fixing
Fit the self adhesive foam seal provided in the flue pack around
the air duct at the position shown in diagram 7.1.
Make good around the flue outside after installation of the boiler.
Important: If the wall liner kit is used, the self adhesive foam seal
included in the wall liner kit must be used in place of the one
supplied with the flue pack, see diagram 7.3 for position of self
adhesive seal.
7.5 Top Outlet Side Flue Fixing
Make good the area around the flue inside and outside after
installation of the boiler.
Important: If the wall liner kit is used, the self adhesive foam seal
included in the wall liner kit must be used in place of the one
supplied with the flue pack, see diagram 7.3 for position of self
adhesive seal.
7.6 Flue Positioning
Push the flue assembly into and through the hole such that it is
within the wall, and does not stick out into the room. Do not push
the flue assembly too far into the hole as it has to be pulled back
into the boiler and secured.

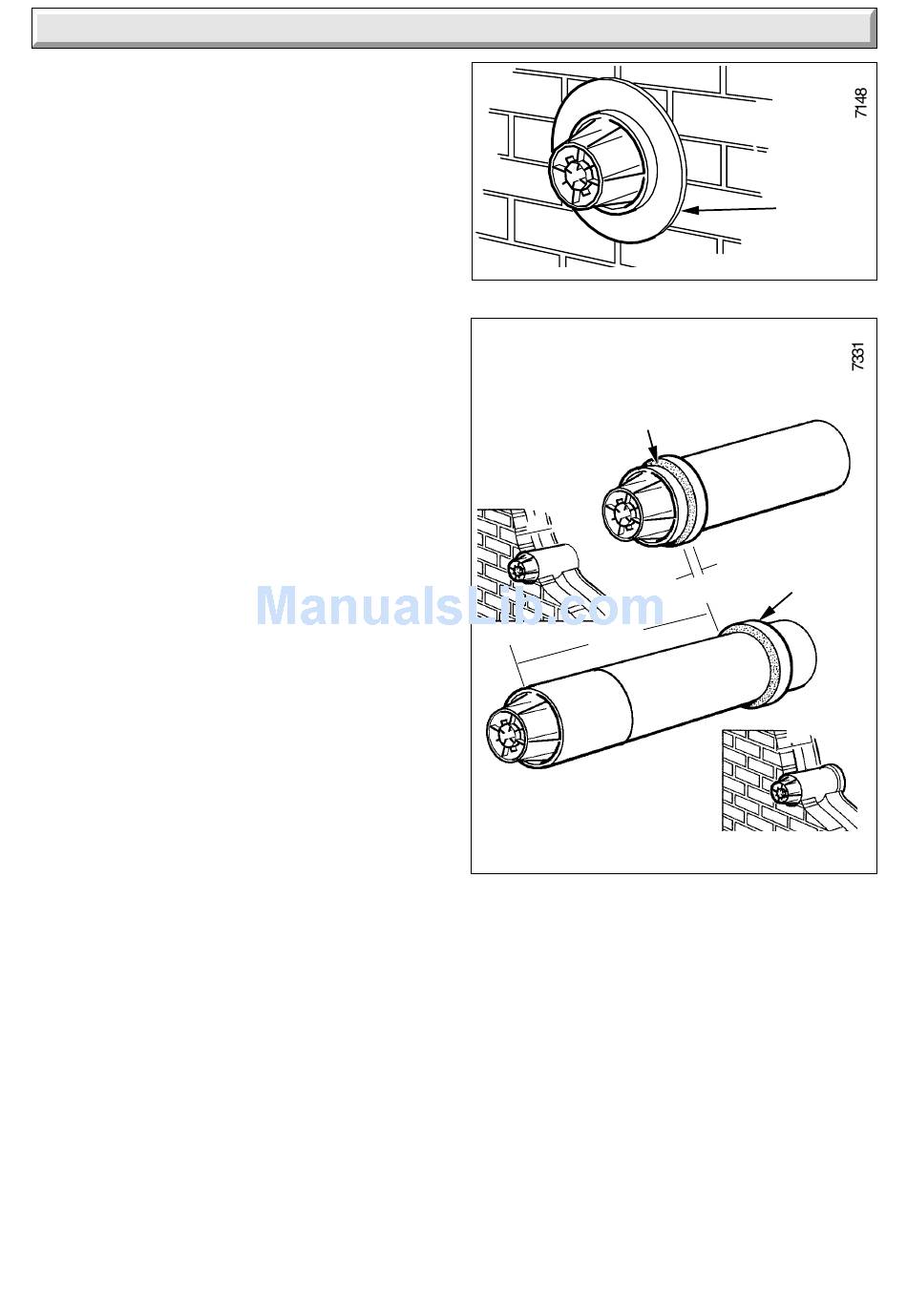

7 Flue Preparation
WITH WALL LINER KIT ONLY
WALL THICKNESS-
UP TO 300mm
WALL THICKNESS-
OVER 300mm
15
FOAM SEAL
Q
15mm
Q-35mm
OPTIONAL
FLUE
COLLAR
Diagram 7.2
FOAM SEAL
Q
Diagram 7.3
221680G
