8.1 Boiler Mounting

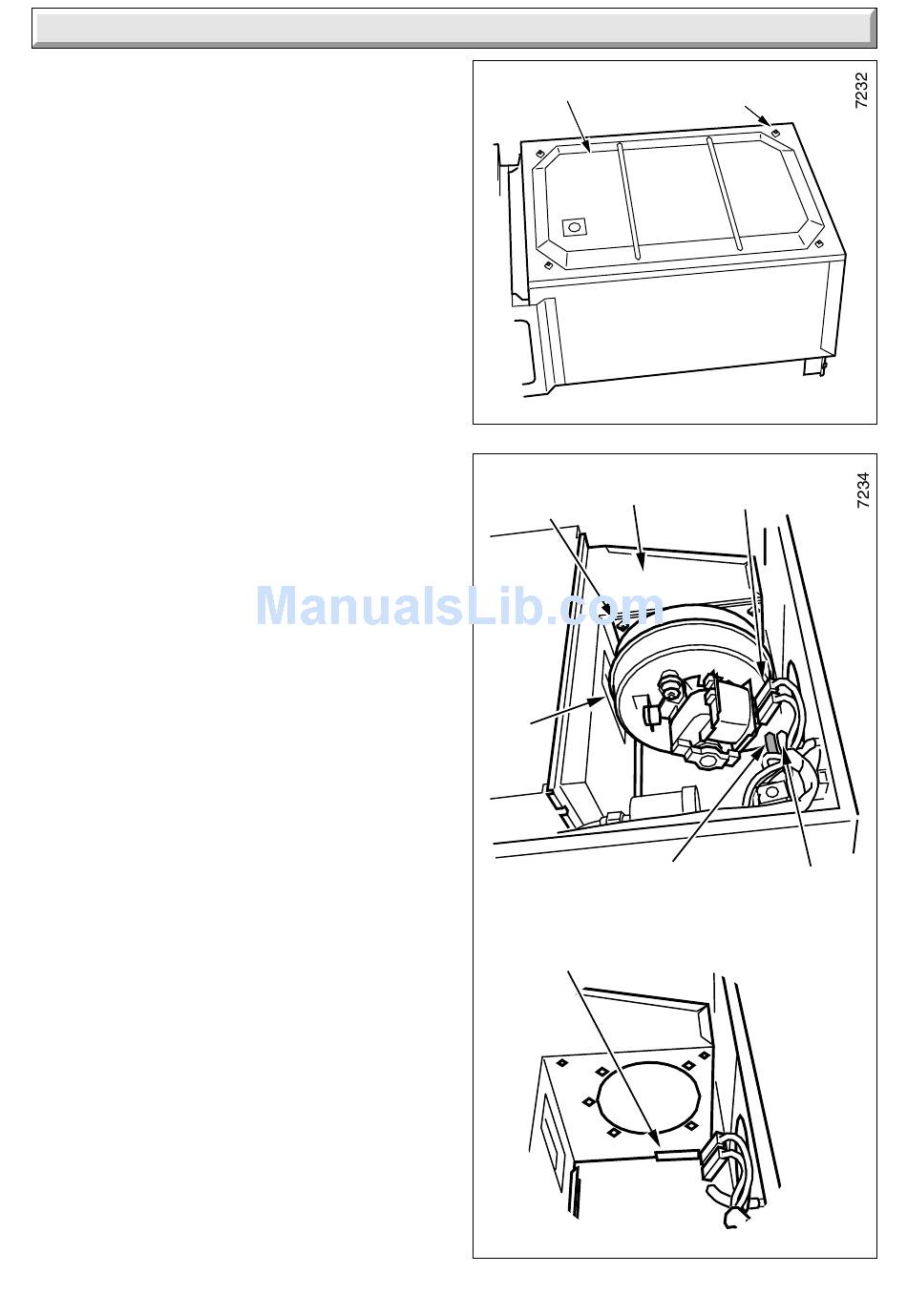

Remove the inner case front, see diagram 8.1.
To assist with the location of the flue elbow into the fan outlet
remove the fan by removing the securing screws, the electrical
connections by pulling the boots not the wires and air pressure
switch tubes, see diagram 8.2.
Remove the protective caps from the boiler water pipes.
Fit the sealing washers (supplied in the fittings pack) to the
boiler water pipes by inserting them into the tubing nuts (the
nipples on the washers will hold them in position), see diagram
8.4.
Lift the boiler into position on the top mounting brackets, see
diagram 8.3.
8.2 Water and Gas Connections
Locate the boiler water pipes and gas supply pipe making sure
the washers are retained in the tubing nuts onto the isolation
valves, fully push the boiler back, see diagram 8.4.
Ensure the bottom boiler bracket is sitting on top of the service
cock bracket, see diagram 8.3.
Fit the flow restrictor into the domestic water inlet, see
diagram 8.4.
Secure all the tubing nuts finger tight, plus
Connect the gas pipe to the isolation valve ensuring that the
sealing washer (supplied fitted) is in position.
8.3 Boiler Securing
Secure the boiler with the two boiler securing screws supplied
loose, to the service cock bracket, see diagram 8.3.
An anti theft kit is available, Kit No. 457110
8.4 Flue Fixing to the Boiler
Make sure that the ductings do not slope down towards the
boiler.
Important : The restrictor plate is for use with flue lengths upto
2 metres. For flues longer than 2 metres the restrictor is not
required, do not fit.
Position the restrictor plate supplied in the loose items pack,
between the flue elbow and boiler , (gasket facing upwards). Fit
the flue elbow to the restrictor plate and top of the boiler using
the four screws supplied, see diagram 8.5.
Tighten the four screws of the flue elbow evenly to ensure a
good seal at the gasket.
Make the wall good internally and externally around the air duct,
also making it weatherproof on the outer wall a flue collar kit is
available Pt. No. 443286.
Refit fan retained by the rear bracket and two securing screws.
Refit the inner case front.
221680G
8 Mounting the boiler and Flue Fitting
3
/
turn maximum.
4
INNER CASE
FRONT
FLUE
SECURING
COLLECTOR
SCREW (2)
FAN
RED AIR PRESSURE
SWITCH TUBE
REAR BRACKET
16
SECURING
SCREW (4)
Diagram 8.1
ELECTRICAL
CONNECTORS
WHITE AIR
PRESSURE
SWITCH TUBE
Diagram 8.2
