ENFORCER EV-2876-UKGQ Installation Manual

Vandal dome camera for flush or surface mount

Download this manual

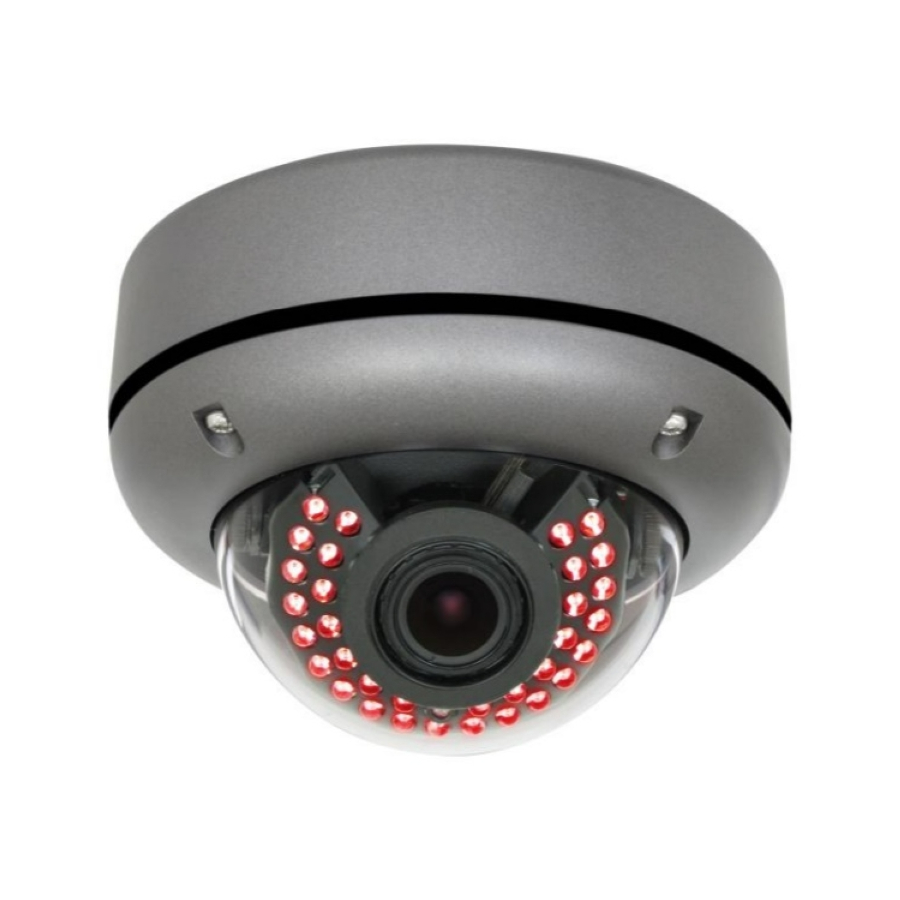

Elite WDR Vandal Dome Camera

" Pixim

High resolution: 690 TV Lines

12VDC/24VAC

Weatherproof IP68

Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.

Pixim

and Pixim

Seawolf are registered trademarks of Pixim, Inc.

EV-2876-UKGQ

For Flush or Surface Mount

Installation Manual

Seawolf Sensor

Without Pixim

2.8~12mm Varifocal lens

DNR and 33 IR LEDs

Selectable: NTSC or PAL

On-screen display (OSD)

With Pixim

Need help?

Do you have a question about the EV-2876-UKGQ and is the answer not in the manual?

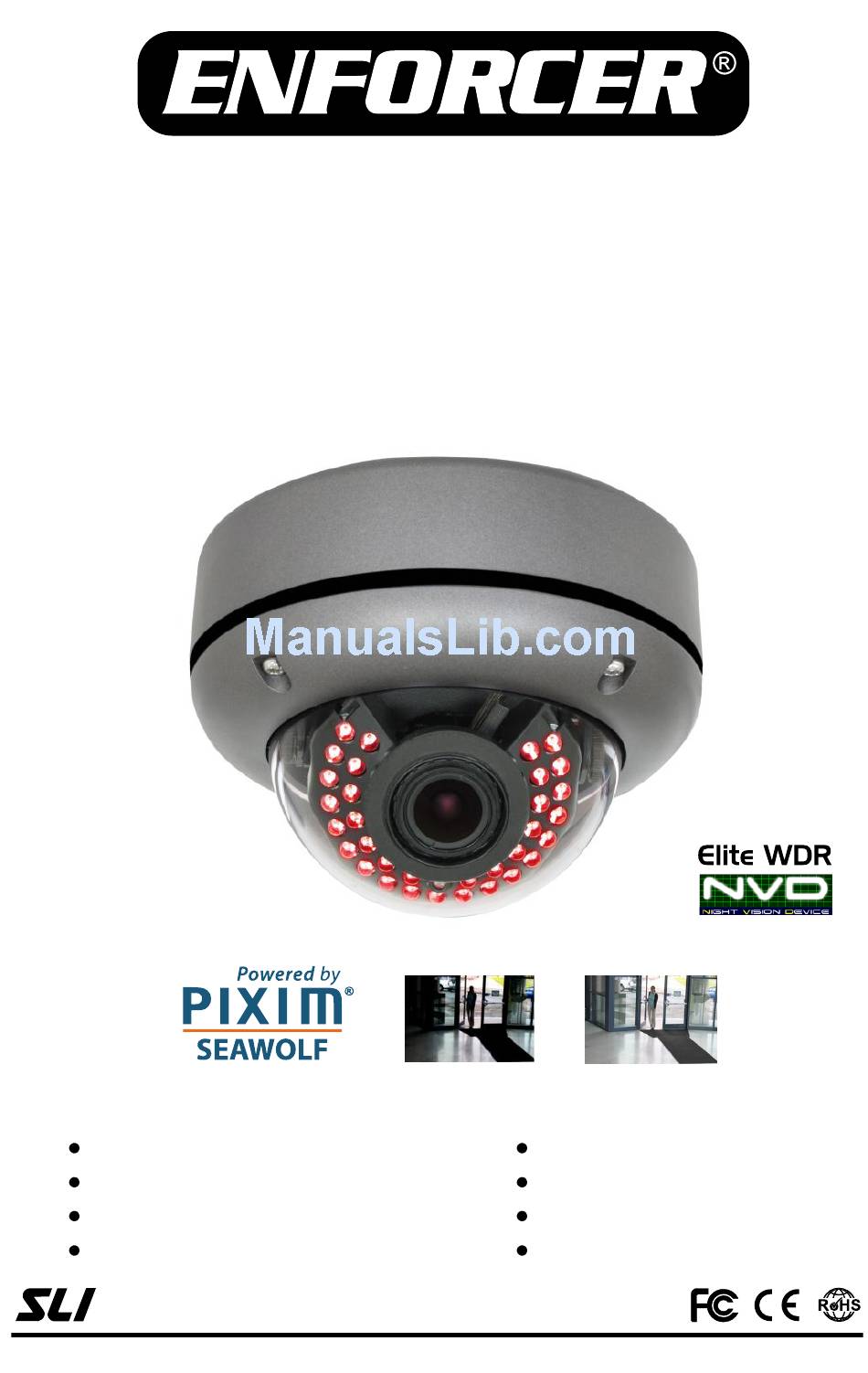

Page 1 EV-2876-UKGQ Elite WDR Vandal Dome Camera For Flush or Surface Mount Installation Manual Without Pixim ® With Pixim ® ” Pixim Seawolf Sensor 2.8~12mm Varifocal lens ® High resolution: 690 TV Lines DNR and 33 IR LEDs 12VDC/24VAC Selectable: NTSC or PAL...
Page 2: Specifications
Elite WDR Varifocal Vandal Dome Camera Specifications: EV-2876-UKGQ Type IR LED Dome Camera Video Output Mode NTSC or PAL (Programmable) Pickup Element ® ” Pixim Seawolf Sensor Resolution 690 TV Lines Lens (Varifocal) 2.8~12mm # of Infrared LEDs 33 (850nm)
Page 3 Elite WDR Varifocal Vandal Dome Camera Overview: OSD joystick Service monitor port Camera connector Set screw Base (For surface mounting only) Dome Rubber ring Important: DC Plug to Do not cut the DC jack or the female BNC terminal block connector as this will void the warranty.
Page 4: Troubleshooting
Elite WDR Varifocal Vandal Dome Camera Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. Check that the monitor is powered up. The screen is blank. Check that the video cable connecting the camera to the monitor is connected properly.
