AN ALOG IN
The Smartvue S8 NVR supports up to two analog video and audio inputs and the
Smartvue S8 cameras support one analog input for existing analog video surveillance
cameras or other video sources.
USING ANALO G CAMERAS W IT H T HE NV R
Using the cables provided with the NVR, plug the analog cameras into the back of the
NVR at the ANALOG IN jacks. The cameras will automatically appear in the MANAGE
CAMERAS dialog as new cameras.

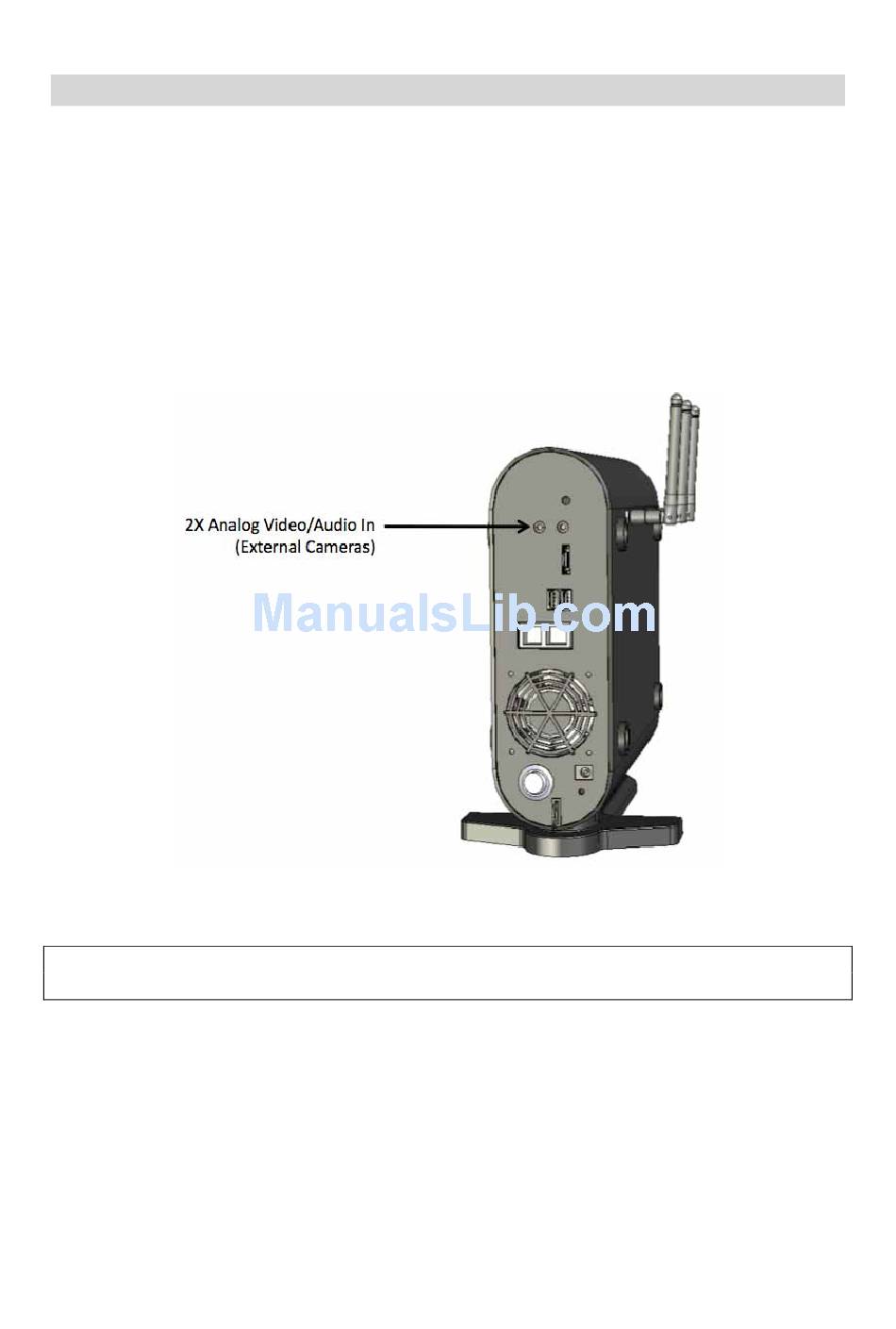

Analog Camera - NVR Inputs
Analog camera inputs use transcoders in the NVR and will reduce the number of
remote access users can view resized video.
USING ANALO G CAMERAS W IT H T HE CAMERA
Using the cable provided with the camera, plug the analog camera into the back of the
camera at the ANALOG IN jack. The sensor on this camera will stop working and pull
video from the input.
77
