Directed Electronics 4100 Installation Manual page 14

H H 1 1 / / 6 6 W W H H I I T T E E / / R R E E D D ( ( + + ) ) a a c c t t i i v v a a t t i i o o n n i i n n p p u u t t
This input comes from the factory set to 2 activation pulses. This means that it is necessary to have 2 consecu-
tive 12V pulses on the white/blue wire for the remote start to activate or to deactivate. The same holds true for
the remote control activation when set to a two pulse setting it is necessary to press the
the remote start to activate or deactivate.
N N O O T T E E : : When the activation pulse count can be programmed to 1, 2, or 3 pulses when changed
it will affect both activation inputs; the White/Red wire and the remote control activation.

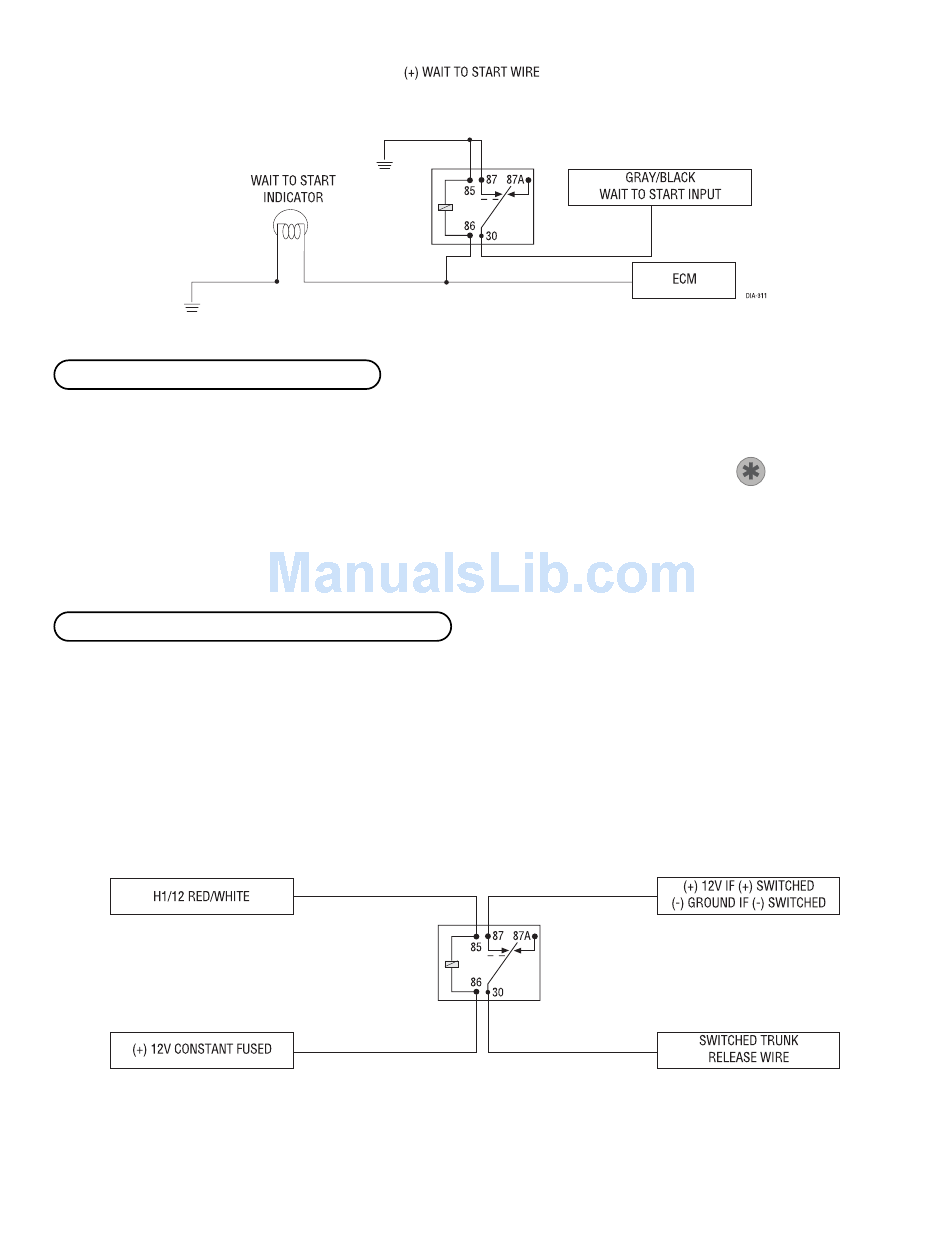

H H 1 1 / / 7 7 R R E E D D / / W W H H I I T T E E C C h h a a n n n n e e l l 2 2 , , ( ( - - ) ) 2 2 0 0 0 0 m m A A o o u u t t p p u u t t
When the system receives the code controlling Channel 2, for longer than 1.5 seconds, the RED/WHITE wire will
supply an output as long as the transmission continues. This is often used to operate a trunk/hatch release or
other relay-driven function.
I I M M P P O O R R T T A A N N T T ! ! Never use this wire to drive anything except a relay or low-current input! The transistorized output
can only supply 200 mA of current. Connecting directly to a solenoid, motor, or other high-current device will
cause it to fail.
1 1 4 4
button twice for
