Directed Electronics 4100 Installation Manual page 12

p p r r i i m m a a r r y y h h a a r r n n e e s s s s ( ( H H 1 1 ) ) , , 9 9 - - p p i i n n c c o o n n n n e e c c t t o o r r
H H 1 1 / / 1 1 L L I I G G H H T T G G R R E E E E N N / / B B L L A A C C K K ( ( - - ) ) f f a a c c t t o o r r y y s s e e c c u u r r i i t t y y d d i i s s a a r r m m
This wire sends a negative pulse every time the remote start is activated or the doors are unlocked. This can be
used to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to
the disarm wire as shown in the following diagrams.

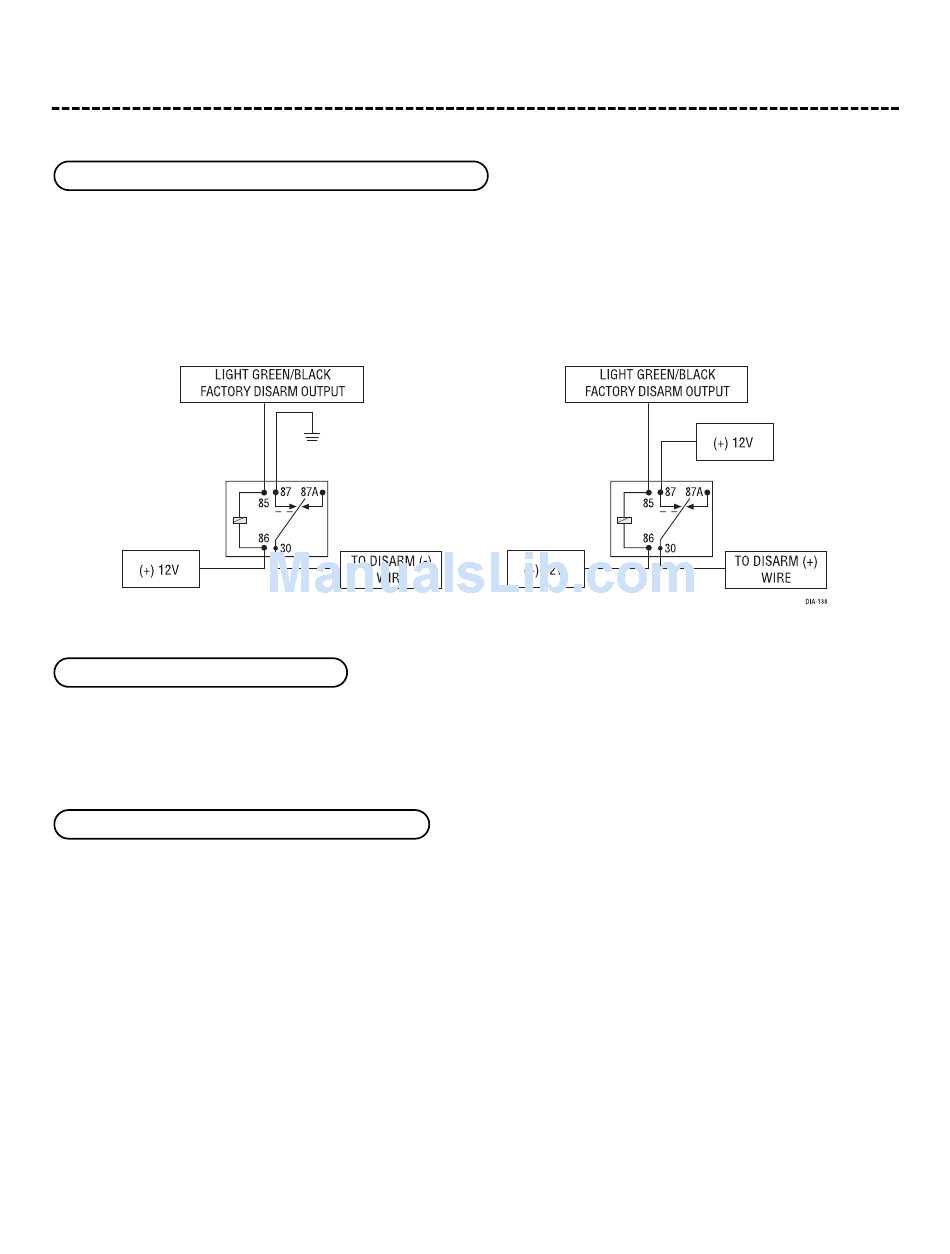

R R e e l l a a y y f f o o r r N N e e g g a a t t i i v v e e ( ( - - ) ) D D i i s s a a r r m m W W i i r r e e
H H 1 1 / / 2 2 G G R R E E E E N N / / W W H H I I T T E E f f a a c c t t o o r r y y r r e e a a r r m m
This wire sends a negative pulse every time the remote start shuts down or the doors are locked. This can be
used to pulse the arm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to the
arm wire
H H 1 1 / / 3 3 Y Y E E L L L L O O W W ( ( + + ) ) i i g g n n i i t t i i o o n n o o u u t t p p u u t t t t o o R R F F s s y y s s t t e e m m
A A s s a a s s t t a a n n d d - - a a l l o o n n e e s s y y s s t t e e m m : : The H1/3 YELLOW wire should not be connected to anything.
A A s s a a n n a a d d d d - - o o n n c c a a r r s s t t a a r r t t e e r r : : If connected, disconnect the ignition/accessory input of the remote controlled secu-
rity or keyless entry system. Connect the H1/3 YELLOW ignition output to the ignition/accessory input of the
remote controlled security or keyless entry system. The wire will prevent the host system from sensing that the
ignition is on during remote start operation.
1 1 2 2
R R e e l l a a y y f f o o r r P P o o s s i i t t i i v v e e ( ( + + ) ) D D i i s s a a r r m m W W i i r r e e
© 2004 Directed Electronics, Inc. Vista, CA
