iCanTek iCanView220 User Manual

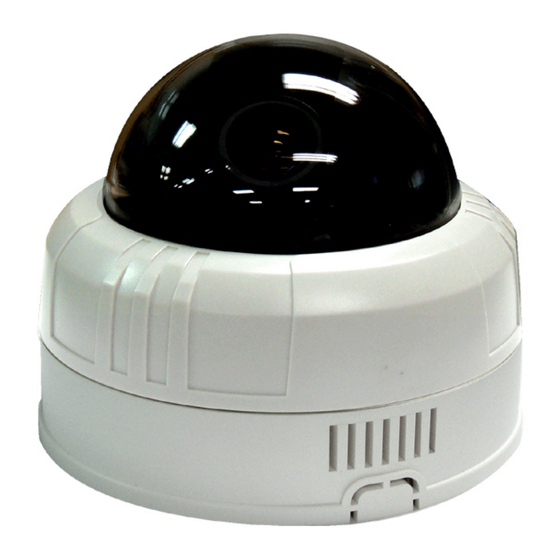

Mpeg4 mini-dome network camera
Hide thumbs Also See for iCanView220:
Table of Contents

Advertisement

Quick Links

User's Guide
iCanView220/220W
Rev1.0(Aug. 2006)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iCanView220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iCanTek iCanView220

Summary of Contents for iCanTek iCanView220

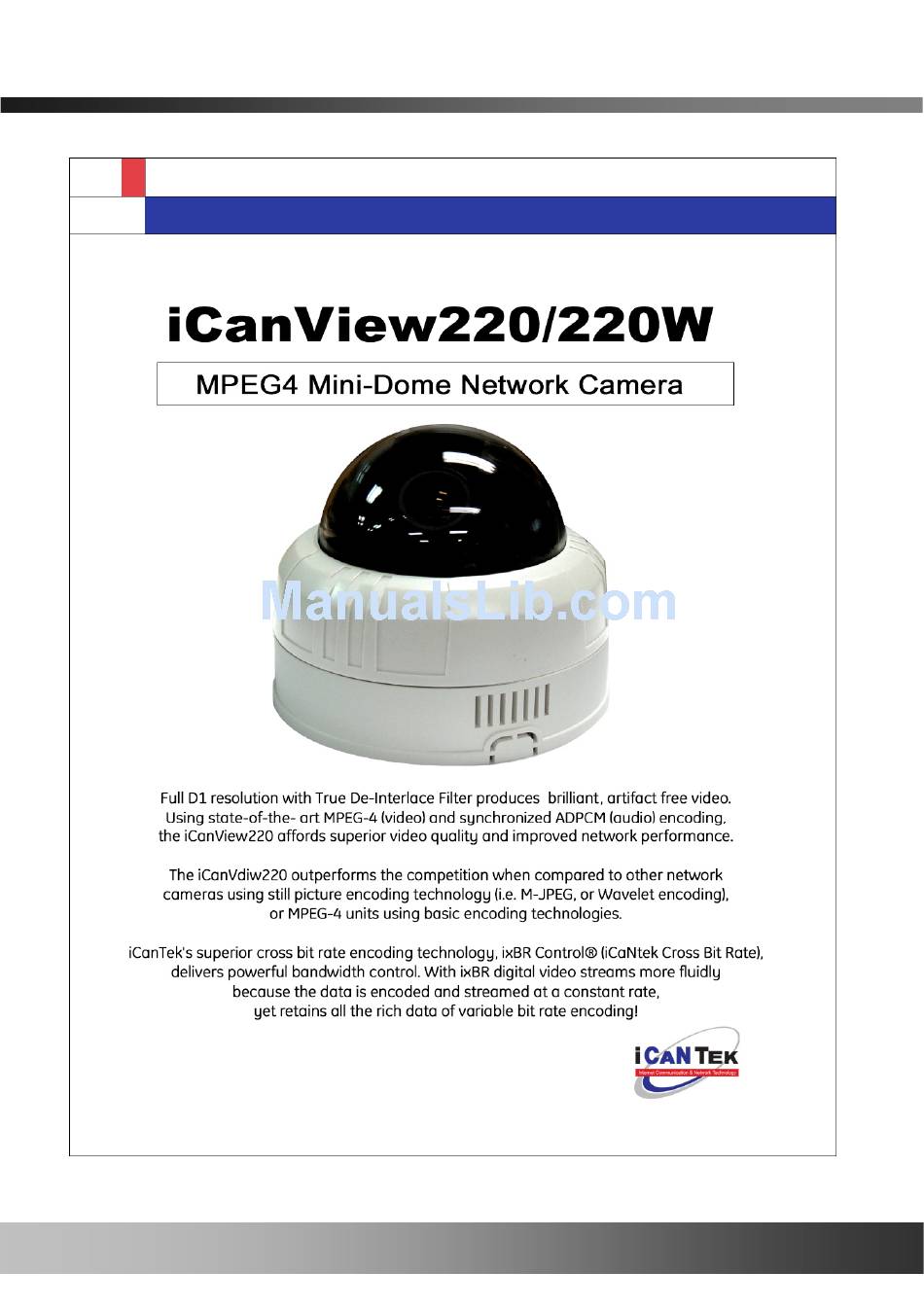

  • Page 1 User’s Guide iCanView220/220W Rev1.0(Aug. 2006)

  • Page 2: Read This First

    With safety in mind, keep out of children’s reach. Disassembly, or modifications void the factory warranty. Use only the power adapter supplied with the iCanView220/220W. Use of third party power supplies will void the factor warranty. Some Cities, States, Provinces, Local and Federal Governments have laws regulating the use of surveillance equipment.
  • Page 3 Do not apply power through the power input jack on the back of the camera when power is supplied through a LAN cable using proprietary PoE. This will damage the camera! This will void the warranty. iCanTek assumes no responsibility for damages caused by applying power simultaneously from both connections.
  • Page 4 User’s Guide This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This...

  • Page 5: Table Of Contents

    5.7. Sensor & Capture Setup ....................35 5.8. Alarm Device Setup...................... 37 5.9. Motion Region Setup ....................38 5.10. PTZ Setup(This is not related with iCanView220/220W Network Camera) ..40 5.11. Encryption Set up....................... 42 5.12. Upgrade & Reset......................44 5.13.

  • Page 6: Introduction

    Unlike analog CCTV equipment, or DVRs, the iCanView220/220W is easy to install. Often one can often take advantage of existing network infrastructure saving valuable installation labor and equipment costs. Based on iCanTek’s Embedded Software Solution (Embedded Web Server, Embedded Streaming Server &...

  • Page 7: Icanview220/220W Features

    1 channel synchronized real time Video/Full Duplex Audio streaming MPEG-4 video, ADPCM audio. Bi-directional audio communication Real time audio communication between iCanView220/220W and Client PC(s) The viewer assisted recording and playback functions. 1 Alarm sensor input/1 relay output Motion detection –...

  • Page 8: Product Description

    User’s Guide 2. Product Description 2.1. Contents Each Camera ships with the following equipment: Components Description Remarks iCanView220/220 iCanView220/220W Network Camera/Server Input : 100~250V 50-60Hz Power adapter Standard Power Output : 7 ~23V, 8W AC power cable AC 250V, 10A~16A...

  • Page 9: Physical Description

    User’s Guide 2.3. Physical description 2.3.1. Configuration DIP Switches Depending on which model you purchased, the iCanView220/220W comes with one of three optional modules described in the following table. Camera module Lenz Misc. 270K pixel Fixed lenz PAL/NTSC 410K pixel...
  • Page 10 MIC/Line IN Sensor in / relay out Line Out DC power 100BaseT(RJ45) Figure 2-2. Rear Views and iCanView220/220W Cable MIC. /LINE In : Connect external audio source or microphones here. Use a standard stereo earphone jack for the connections. Not used...
  • Page 11 User’s Guide Figure 2-3. Pin assignment of the plug for MIC/LINE In (left) and LINE OUT (right) Line Out : Connect to speakers with built in amplifier, or PA system. Audio from the remote site is output through Line out in bi-directional audio mode.
  • Page 12 (Available only for Day & Night camera module) For adjusting output video DC levels. Power Power input of iCanView220/220W. DC 7-23V, 1A Warning: Do not apply power through the power input jack on the back of the camera when power is supplied through a LAN cable using proprietary PoE.

  • Page 13: Pc Requirements

    Press the switch using tools with sharp tip for a few seconds while power is applied. 2.4. PC Requirements AV streaming data received from iCanView220/220W can be decoded or stored in a PC running the i-NVR program, which is a live monitoring and digital video recording PC compatible application. Minimum PC requirements:...

  • Page 14: Quick Installation Guide

    LAN cable. Note: iCanTek cameras use proprietary PoE technology. Using a third party PoE product with iCaNtek cameras will damage the camera and void the warranty. 2) If you have standard power connect the network camera and PC as illustrated in Figure 2.7.
  • Page 15 Figure 2-6. Connecting Network camera and PC using PoE Adaptor Figure 2-7. Connecting Network camera and PC without using PoE <Caution>: iCantek does not support standard PoE. Do not connect the network camera directly to a hub supporting standard PoE.
  • Page 16 User’s Guide xDSL or Cable modem you need supplementary information provided by your ISP. 5. Connect to iCanView220/220W in Administrator Mode for initial parameter set-up. The factory default state affords the ability to connect and configure the device in low bandwidth environments.
  • Page 17 Input DC Power to network camera 7. Remote video connection to iCanView220/220W Before attempting to connect and view video from the iCanView220/220W, install i-NVR to the PC. This will automatically install the ActiveX component needed for a direct connection with IE Explorer. For more detailed information on using “i-NVR” see the i-NVR User Guide.

  • Page 18: Connecting Icanview220/220W To Network

    Basic connection: Figure 3-1. Figure 3-1. Connecting the iCanView220/220W to LAN 1. Follow steps 1 through 4 in Section 2.5 to assign an IP address to the iCanView220/220W. 2. Install iCanView220/220W and connect to LAN. 3. Test the ability to receive video data when connecting to iCanView220/220W using iNVR.

  • Page 19: Connecting To An Xdsl/Cable Modem

    1. Follow through steps 1 through 4 in Section 2.5 to assign IP address and other network parameters to iCanView220/220W. 2. Install iCanView220/220W and connect it to xDSL or Cable modem as in Figure 3-2. Figure 3-2. Connecting the iCanView220/220W to ADSL/Cable Modem When a fixed IP address is assigned to the xDSL or Cable modem, using IP-installer, invoke the same method as “assigning an IP address on a LAN.”...

  • Page 20: Ip-Installer

    User’s Guide 4. IP-Installer iCanView220/220W needs IP network parameters for connection to a network(Internet/Intranet). IP-Installer is a PC program for the initial network configuration to IP video products such as Network Cameras, or A/V Servers. IP-Installer is found on the included CD supplied with iCanView220/220W, or it can be downloaded from “www.icantek.com”.

  • Page 21: Configuring Icanview220/220W In Administrative Mode

    5. Configuring iCanView220/220W in Administrative Mode 5.1. Log On There are 2 ways of connecting to iCanView220/220W administrative mode. One is through Internet Explorer and the other is through “i-NVR” program. 1. Using Internet Explorer Type in the connection address of the network camera in the address window of the Internet Explorer as followings: http://[iCanView220/220W IP address]/admin.htm...
  • Page 22 User’s Guide 3. Input User Name and Password in the display screen shown in Figure 5-2. Figure 5-2. Log On Screen Factory default User Name and Password are set as ‘root’ and ‘dw2001’, respectively. Click on “OK” button to enter into the Basic Setup page of Administrative Mode. If you have changed the username and password of the Administrator, you must log on with the changed username and password.

  • Page 23: Basic Setup

    User’s Guide 5.2. Basic Setup Setup the basic parameters of the iCanView220/220W. Figure 5-3. Basic Setup Rev.1.0 (Aug. 2006)
  • Page 24 Field/Button Description /Button Language Select a language of your choice The logical name of the iCanView220/220W. This is same item System Name as the set-up by IP-installer. You may reassign the system name in by either method. Select the type of audio input.

  • Page 25: Network Configuration

    User’s Guide 5.3. Network Configuration A pre-installation worksheet for sales people is included on the disk. The network admin. can fill out this document prior to installation, saving valuable time. Set the network parameters in accordance with your network environment. Many of the settings on this page are same as those set up by “IP-Installer”.
  • Page 26 Field/Button Description /Button The network types supported by the iCanView220/220W are LAN(fixed IP), PPPoE, and DHCP(automatic IP allocation) When the network environment is using a fixed IP, select ‘LAN’ in the network type, and input the IP address, Subnet Mask, Static IP Set Gateway, DNS1 and DNS2.
  • Page 27 Default FTP port number Setup is 21. You can register the network camera on the iCanTek Management Server (DDNS Server) for domain name service to your network camera. Check this box to enable log on to the management server. By logging on to the management server your network camera can use a domain name instead of a numeric IP address.

  • Page 28: Wireless Configuration (Icanview220W Only)

    User’s Guide 5.4. Wireless Configuration (iCanView220W only) The iCanTek 220W has a built in WiFi 802.11 b/g transceiver. The following information describes setup configuration. Click “Wireless Configuration”. Figure 5-5 Wireless Configuration Rev.1.0 (Aug. 2006)
  • Page 29 User’s Guide Sub Field Field/Button Description /Button Select “ESS” to enable WiFi. If “Disable” is selected, the WLAN Mode Ethernet interface is disabled. WLAN Radio Select Wireless network type (i.e. b,g etc.). Enter the SSID ( of the wireless LAN...

  • Page 30: Ccd Adjustment (Not Applicable For Icanview220/220W)

    User’s Guide 5.5. CCD Adjustment (Not applicable for iCanView220/220W) You can optimize the quality of input video by adjusting CCD parameters. To enter this mode, click “CCD Adjustment” on the administrative page, shown in Figure 5-6. Figure 5-6. CCD Adjustment...
  • Page 31 Control accordance with the illumination condition. In case of using NTSC type iCanViewV220 in 50Hz AC regions CCD Control or using PAL type iCanView220/220W in 60Hz AC region, video output tends to flicker when iCanView220/220W is used under fluorescent lamps.

  • Page 32: User Admin & Time Setup

    User’s Guide 5.6. User Admin & Time Setup Administer User IDs, Passwords and privileges for each user. Figure 5-7. User Admin. & Time Setup Rev.1.0 (Aug. 2006)
  • Page 33 Admin password. The default password is “dw2001”. password : Administrator Enter the password once more confirming the password. Confirm Password Add User Enter the user ID you want to add. iCanView220/220W Username supports up to100 users. Add User Enter the user password. Password User...
  • Page 34 Synchronize the time with the internet time server at the right. with an When time server reach from Internet iCanView220/220W, you can assign time server by filling in Time Server Specific Time Server field. Time Setup Synchronize Synchronize the time with the time of the PC. With this Computer...

  • Page 35: Sensor & Capture Setup

    User’s Guide 5.7. Sensor & Capture Setup This is the setup page for sensors and video capture conditions. Captured video can be sent by FTP or E-mail. Figure 5-9. Sensor & Capture Setup Rev.1.0 (Aug. 2006)
  • Page 36 Input the logical name for the sensor. This sets the activation condition for video transmission via FTP or E-mail. The iCanView220/220W supports 2 types of conditions. Each is mutually independent. 1. Sensor initiated: when at least one of the sensor detects alarm condition.

  • Page 37: Alarm Device Setup

    User’s Guide 5.8. Alarm Device Setup Used for testing alarm outputs via manual activation. This pages also assigns the alarm device name, sensor type and “time out”/duration. Figure 5-10. Alarm Output Setup Sub Field Field/Button Description /Button Click here to manually activate the output (On/Off) for testing...

  • Page 38: Motion Region Setup

    User’s Guide 5.9. Motion Region Setup Define Up to three (3) motion detection regions. Figure 5-11. Motion Region Setup Rev.1.0 (Aug. 2006)
  • Page 39 User’s Guide Sub Field Field/Button Description /Button Channel Not applicable. Selection Set the sensitivity (percentage change) necessary to initiate an Channel alarm condition for each channel. Sensitivity 1 is the most sensitive, and 10 is the least sensitive. Set up to 3 motion detection zone Enable each zone by checking the box to the left of each Region.

  • Page 40: Ptz Setup(This Is Not Related With Icanview220/220W Network Camera)

    User’s Guide 5.10. PTZ Setup(This is not related with iCanView220/220W Network Camera) Setup and test the PTZ devices. Since PTZ feature is not implemented on iCanView220/220W, this feature will not function properly with iCanView220/220W. Figure 5-12. PTZ Setup Rev.1.0 (Aug. 2006)
  • Page 41 User’s Guide Sub Field Field/Button Description /Button Channel Not applicable Selection PTZ Model Choose the PTZ model. Selection Refer to section 5.12 for the addition of PTZ protocol data. Delete Click this button to delete the PTZ setup Button Input PTZ ID in this field.

  • Page 42: Encryption Set Up

    User’s Guide 5.11. Encryption Set up Figure 5-13. Encryption Setup For additional (optional) security, the video and audio data stream transmitted from the network camera can employ 128-bit encryption. 128-bit key codes are then required for access to the encrypted stream.
  • Page 43 User’s Guide Sub Field Field/Button Description /Button Check this box to enable data encryption. If unchecked, encryption is not applied on either video, or audio data, regardless of selections below. Enable Data Encryption Video Checking enables video data encryption.

  • Page 44: Upgrade & Reset

    Upgrading iCanView220/220W via the Network Figure 5-14. Upgrade & Reset Download the upgrade file for each upgrade parameter. Find the latest upgrade files on the iCanTek home page under support; registration is required. (Refer to [6.4. How To Upgrade Your iCanView220/220W System] Sub Field...
  • Page 45 User’s Guide the iCanTek Upgrade Server. Click the check button to search for the latest upgrade firmware. A live internet connection is required. Upgrade the system manually. Manually upgrade System Software via a network connection. System S/W Download the latest system software from the iCanTek web site.

  • Page 46: Status Report

    User’s Guide 5.13. Status Report Displays System Event Records Figure 5-15. Status Report Verify system software/firmware versions, review event actions. Rev.1.0 (Aug. 2006)

  • Page 47: Tips For Using Icanview220/220W

    User’s Guide 6. Tips for Using iCanView220/220W 6.1. Sensor-IN and Relay-OUT Use the Sensor-In and Relay-Out Cable to connect various sensing and alerting devices. Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors, magnetic contact sensors, etc. Use the *Relay-Out connector for connecting device such as loud speakers, flashing lights, or access control devices.
  • Page 48 User’s Guide Figure 6-2. SENSOR input of iCanView220/220W 2. Relay-OUT A Relay output is provided for connecting alarm devices or for remote on/off devices such as light control. Relay circuits are normal open and circuits are closed upon alarm output or remote on.
  • Page 49 User’s Guide Figure 6-3. RELAY Output of iCanView220/220W 3. Alarm Device Connection 3.1 Sensor Connection Photo Coupler NO/NCType Open CollectorType Sensor1+ Sensor Sensor Device Device Sensor1- +12V Sensor Sensor Power Power Supply Supply 3.2 Relay Connection Rev.1.0 (Aug. 2006)

  • Page 50: Trouble Shooting

    30V AC/DC at 1A. Higher current circuits require an additional auxiliary relay. 6.2. Trouble Shooting 1. After iCanView220/220W is successfully installed. • iCanView220/220W View Mode: Channel name, or video does not display, eventually displaying timeout message is shown up. Double-Check the iCanView220/220W’s power and network connections.
  • Page 51 User’s Guide Next double-check that the iCanView220/220W is connected, open the MS-DOS Prompt and type the following. ping [the IP of the camera/server] Example) ping 192.168.1.112 If you see the “Reply from …” message, it means that the server is properly connected.

  • Page 52: Web Viewer

    6.3. Web Viewer iCanView220/220W is designed to be connected through internet explorer, too. For connection to iCanView220/220W using internet explorer type in IP address or host address in the address input field of the internet explorer. Figure 6-4. Web Viewer of iCanView220/220W...
  • Page 53 User’s Guide Control Panel of Web Viewer Enable bidirectional audio. When bidirectional audio is enabled, voice from your delivered iCanView220/220W. Capture and store the still image on your desk top screen. Connect iCanView220/220W administrative mode. Rotate the screen by 180 degree.

  • Page 54: How To Upgrade Your Icanview220/220W System

    Find upgrade software at the iCanTek home page. 2) Log on to iCanView220/220W in administrative mode and select the “Update & Reset” menu. 3) Click "Browse..." to find the file(s) you downloaded for the upgrade. This will open a "Choose file"...
