Summary of Contents for iCanTek iCanView220

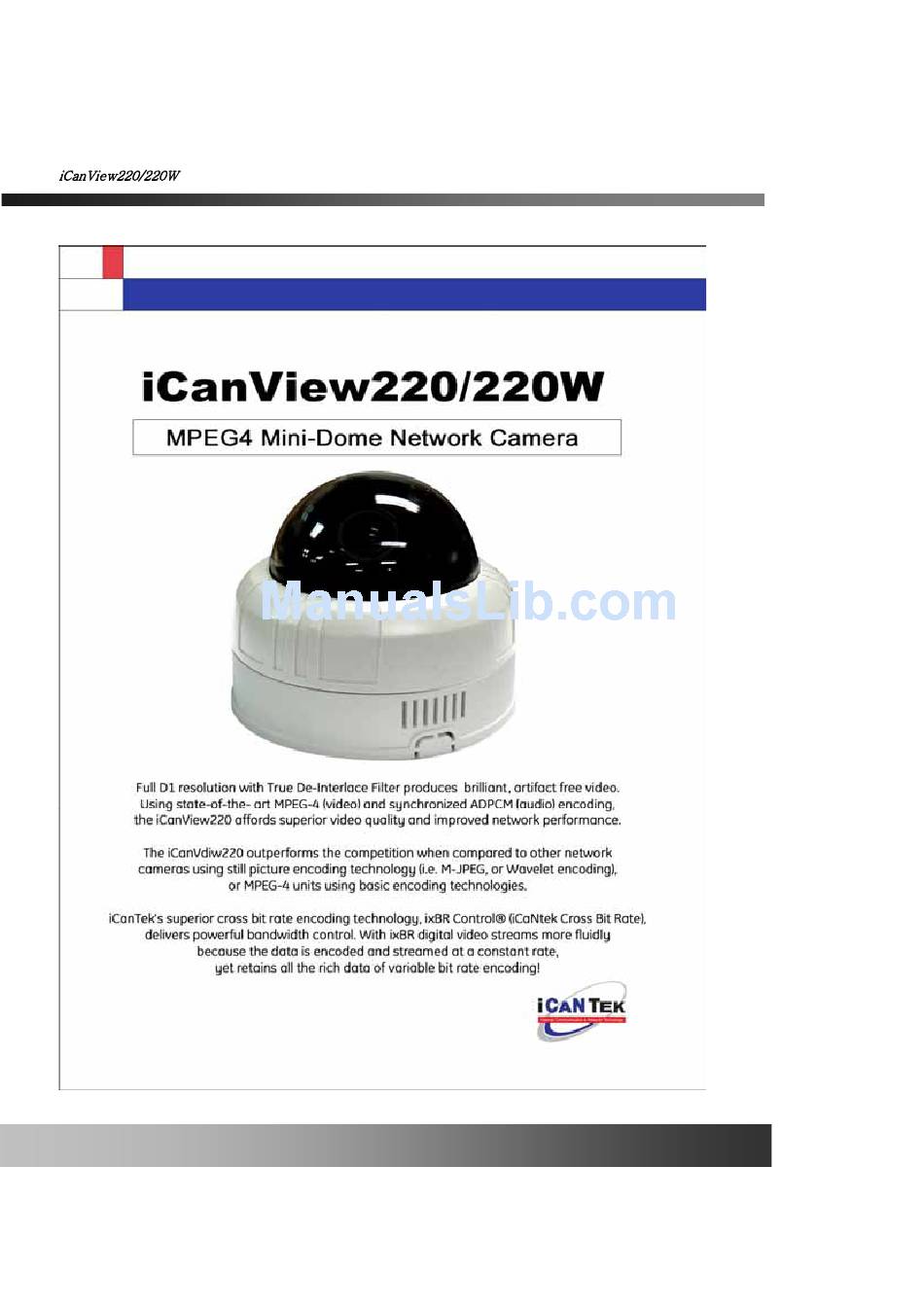

- Page 1 User’s Guide Rev1.0(Aug. 2006)
- Page 2 Be careful not to cause any physical damage by dropping or throwing the iCanView220 /220W network camera. Especially keep the network camera out of reach from children.
- Page 3 User’s Guide Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This appliance and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 4: Table Of Contents
5.9. Motion Region Setup 5.10. PTZ Setup 5.11. Encryption Set up 5.12. Upgrade & Reset 5.13. Status Report 6. Tips for Using iCanView220/220W 6.1. ALARM-IN and ALARM-OUT 6.2. Trouble Shooting 6.3. Web Viewer 6.4. How To Upgrade Your iCanView220/220W System Rev.1.0 (Aug. 2006) -
Page 5: Introduction
IP connection over internet or intranet. Unlike CCTV or DVR, the iCanView220/220W is easy to install and owner will experience cost and space savings in the installation owing to the state of the art technologies embedded in the system. -
Page 6: Applications Of Icanview220/220W
User’s Guide 1.3. Applications of iCanView220/220W Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc., Real time Internet broadcasting Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.,) Teleconference (Bi-directional audio conference) Remote Learning Weather and environmental observation... -
Page 7: Product Description
User’s Guide 2. Product Description 2.1. Contents Open the package and check if you have the followings: Components Description Remarks iCanView220/220W Network iCanView220/220W Camera/Server Input : 100~250V 50-60Hz Power adapter Standard Power Output : +12V, 1.0A AC power cable... -
Page 8: Physical Description
User’s Guide 2.3. Physical description 2.3.1. Switches and Knobs for the adjustment BLC,AGC,FL Switch Analog Video Out Reset Figure 2-1. Front view of CanView220/220W 2.3.2. Bottom view and Cable Harness Rev.1.0 (Aug. 2006) - Page 9 Line Out MIC/Line In RS232C DC Power Figure 2-2. Rear views and Cable of iCanView220/220W MIC. /LINE In : Connect external audio source or microphone. If external audio is connected, embedded microphone will be disabled. Use Standard stereo earphone jack for the connections.
- Page 10 User’s Guide Line out in bi-directional audio mode. Use Standard stereo earphone jack for the connection. 100BaseT (RJ45) : 100Mbps Ethernet connector (RJ-45) with proprietary PoE. - Link LED : Continuous yellow light means that network cable is plugged in. It will flicker when there is traffic.
- Page 11 Do not apply power through this power input when power is applied through LAN cable using proprietary PoE. Sensor In/Relay Out : used for connecting sensor, and alarm devices to iCanView220/220W. Note that the each signal is differentiated by color of cable.
-
Page 12: Pc Requirements
2.4. PC Requirements AV streaming data received from iCanView220/220W can be decoded or stored in a PC running i- NVR program which is a viewing & recording program for a PC. Minimum requirement of the PC is... - Page 13 AC In with PoE with PoE Figure 2-6. Connecting Network camera and PC using PoE Adaptor Figure 2-7. Connecting Network camera and PC without using PoE <Caution>: The products of iCantek does not support standard PoE. Do not Rev.1.0 (Aug. 2006)
- Page 14 Cable modem you need supplementary information provided by your ISP. 5. Connect to iCanView220/220W in Administrator Mode for initial parameter set-up. All parameters are set to factory default state when iCanView220/220W is delivered. You are asked to configure the system for your environment in administration mode. Detailed...
- Page 15 Apply DC Power to network camera 7. Remote video connection to iCanView220/220W Run i-NVR on your PC. Before connecting to iCanView220/220W it is needed to configure the connection information on the i-NVR. More detailed information of using “i-NVR” can be found in [i-NVR User’s...
-
Page 16: Connecting Icanview220/220W To Network
IP address for iCanView220/220W. 3.1. Connecting to LAN In case of connecting the iCanView220/220W to LAN, it is generally connected as in Figure 3-1. Figure 3-1. Connecting the iCanView220/220W to LAN 1. Follow through steps 1 to 4 in Section 2.5 to assign IP address to iCanView220/220W. -
Page 17: Connecting To Xdsl/Cable Modem
1. Follow through steps 1 to 4 in Section 2.5 to assign IP address and other network parameters to iCanView220/220W. 2. Install iCanView220/220W and connect it to xDSL or Cable modem as in Figure 3-2. Figure 3-2. Connecting the iCanView220/220W to ADSL Modem When fixed IP address is assigned to the xDSL or Cable modem, follow the same way as assigning IP address for the case of LAN using IP-installer. - Page 18 IP environment. Please refer to the Application note regarding “Management Server” in the CD.) When connecting iCanView220/220W to xDSL or Cable modem, usually regular LAN cable is required. But since some modems have crossover connections, please contact your service provider for detailed information.
-
Page 19: Ip-Installer
IP network parameters for connection to the network(Internet/Intranet). IP-Installer is a PC program for the initial network configuration to IP video products such as Network Camera or A/V Server. IP-Installer is provided in a CD supplied with iCanView220/220W or it can be downloaded from “www.icantek.com”. -
Page 20: Configuring Icanview220/220W In Administrative Mode
5. Configuring iCanView220/220W in Administrative Mode 5.1. Log On There are 2 ways of connecting to iCanView220/220W administrative mode. One is through Internet Explorer and the other is through “i-NVR” program. 1. Using Internet Explorer Type in the connection address of the network camera in the address window of the Internet Explorer as followings: http://[iCanView220/220W IP address]/admin.htm...
