2.4 Additional Hardware Features

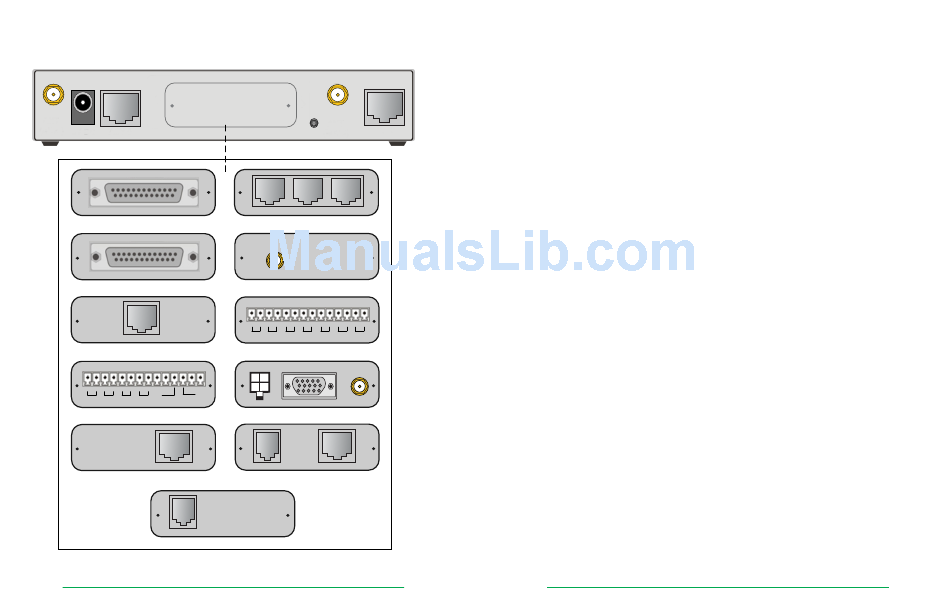

The TransPort WR41 is available with various hardware options, as shown below:
WWAN
SECONDARY
9-48VDC
SERIAL 0
2A MAX
SERIAL 1
Option 1: ASY Serial Port
SERIAL 1
Option 3: SYN/ASYN Serial Port
ISDN
Option 5: ISDN
A B A B A B A B D1 D2 D3 D4
AN1 AN2 AN3 AN4 D12C D34C
Option 7: Telemetry 2 I/O Interface
PSTN
Option 9: PSTN
To Modem
Option 11: DialServ
WWAN
PRIMARY
LAN
GND
SERIAL 1 SERIAL 3
SERIAL 2
Option 2: ASY Serial Port (3x)
GPS
Option 4: GPS
_ _ _ _
A B A B + + + +
DC IN RLY IN OUT 1 OUT 2 OUT 3 OUT 4
Option 6: Telemetry 1 I/O Interface
Pwr Data GPS
Option 8: Fleet I/O Interface
Modem
ISDN
Option 10: ISDN-U/PSTN
Page 10
TransPort ® WR41 Installation Guide
1. ASY Serial Port - Provides an additional asynchronous RS232 serial port using a DB25 connector.
2. ASY Serial Port (3x) - Provides three additional asynchronous RS232 serial ports using RJ45 connectors.
3. SYN/ASYN Serial Port - Provides an X.21/RS422/RS232 synchronous / asynchronous serial port using a
DB25 connector.
4. GPS - Provides GPS capabilities using an SMA male connector.
5. ISDN - Provides an ISDN Basic Rate Interface (BRI) via an RJ45 port. This can be configured either
as a TE (terminal endpoint) or as NT-1 (network termination). The option also includes an additional
asynchronous serial port via a second RJ45 port.
6. Telemetry 1 I/O Interface - Provides 4 opto-isolated digital input ports and 1 opto-isolated digital output
port. It also provides a relay I/O port, a voltage monitoring port, and internal temperature monitoring.
7. Telemetry 2 I/O Interface - Provides 4 isolated analog I/O ports and 4 non-isolated digital I/O ports.
8. Fleet I/O Interface - Provides CAN and J1708 interface, GPS, 4 non-isolated digital I/O ports, ignition
sense port, and a 3 axis accelerometer.
9. PSTN - Provides a PSTN interface via an RJ45 connector that can be used to dial out and receive calls.
10. ISDN-U/PSTN - Provides an ISDN-U interface suitable for the USA plus PSTN interface. It can be
configured for Bell-103 modulation in leased line mode as well as a normal PSTN interface.
11. DialServ - This RJ11/FXS connection converts a PSTN analog modem to a RS-232 serial signal.
For more information on the Telemetry 1, Telemetry 2, and the Fleet I/O Interfaces please see the product specific
user's guides which can be found at: http://ftp1.digi.com/support/documentation/transport/technicalnotes.htm.
