Fujitsu MBA3300FD Product Manual

Hide thumbs Also See for MBA3300FD:
Table of Contents

Advertisement

Quick Links

Download this manual
C141-E264-01EN
MBA3300FD
MBA3147FD
MBA3073FD
HARD DISK DRIVES
PRODUCT MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu MBA3300FD

Summary of Contents for Fujitsu MBA3300FD

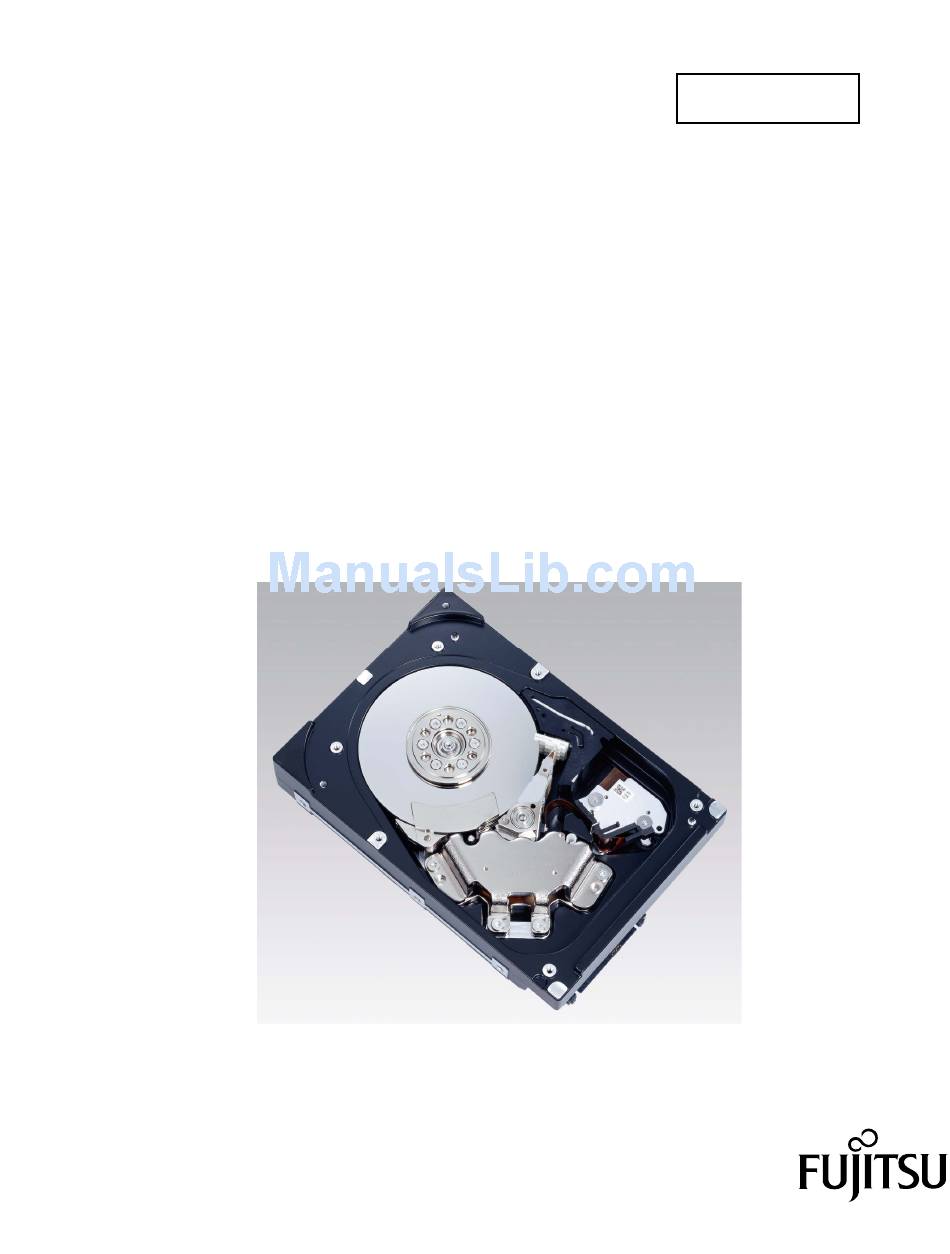

  • Page 1 C141-E264-01EN MBA3300FD MBA3147FD MBA3073FD HARD DISK DRIVES PRODUCT MANUAL...
  • Page 2 In addition, FUJITSU assumes no liability with respect to the application or use of any product or system in accordance with the descriptions or instructions contained herein; including any liability for incidental or consequential damages arising therefrom.
  • Page 3 The contents of this manual may be revised without prior notice. The contents of this manual shall not be disclosed in any way or reproduced in any media without the express written permission of Fujitsu Limited. All Rights Reserved, Copyright  FUJITSU LIMITED 2007 C141-E264...
  • Page 4 This page is intentionally left blank.
  • Page 5 REVISION RECORD Edition Date published Revised contents August, 2007 Specification No.: C141-E264-**EN C141-E264...
  • Page 6 Related Standards Product specifications and functions described in this manual comply with the following ANSI (*1) standards. Document number Title NCITS TR-19 FIBRE CHANNEL PRIVATE LOOP SCSI DIRECT ATTATH (FC-PLDA) ANSI X3.230-1994 FIBRE CHANNEL PHYSICAL AND SIGNALING INTERFACE (FC-PH) ANSI X3.297-1996 FIBRE CHANNEL PHYSICAL AND SIGNALING INTERFACE-2 (FC-PH-2) ANSI X3.272-199X FIBRE CHANNEL ARBITRATED LOOP (FC-AL)

  • Page 7: Preface

    Preface This manual describes MBA3300FD, MBA3147FD, and MBA3073FD 3.5-inch hard disk drives with an embedded fibre channel controller. This manual details the specifications and functions of the above disk drive, and gives the requirements and procedures for installing it into a host computer system.
  • Page 8 Preface CONVENTIONS USED IN THIS MANUAL MBA3300FD, MBA3147FD, and MBA3073FD are described as "HDD" in this manual. Decimal number is represented normally. Hexadecimal number is represented as X'17B9', 17B9h or 17B9H. Binary number is represented as "010". Conventions for Alert Messages This manual uses the following conventions to show the alert messages.

  • Page 9: Important Alert Items

    Important Alert Items Important Alert Messages The important alert messages in this manual are as follows: A hazardous situation could result in minor or moderate personal injury if the user does not perform the procedure correctly. Also, damage to the product or other property, may occur if the user does not perform the procedure correctly.
  • Page 10 Data loss Save data stored on the HDD to other media before requesting repair. Maintenance Fujitsu does not assume responsibility if data is corrupted during servicing or repair. High temperature To prevent injury, never touch the HDD while it is hot. The DE and LSI become hot during operation and remain hot immediately after turning off the power.

  • Page 11: Manual Organization

    MANUAL ORGANIZATION PRODUCT MANUAL 1. General Description 2. Specifications (This manual) 3. Data Format 4. Installation Requirements 5. Installation 6. Diagnostics and Maintenance 7. Error Analysis FIBRE CHANNEL 1. Fibre Channel Interface INTERFACE MANUAL 2. Command Processing 3. Data Buffer Management 4.
  • Page 12 This page is intentionally left blank.

  • Page 13: Table Of Contents

    CONTENTS Preface ........................1 Important Alert Items .....................3 MANUAL ORGANIZATION ..................5 CHAPTER 1 General Description..............13 Standard Features..................13 Hardware Structure ...................17 System Configuration ................18 CHAPTER 2 Specifications ................19 Hardware Specifications ................19 2.1.1 Model name and order number ..............19 2.1.2 Function specifications ................20 2.1.3 Environmental specifications..............23 2.1.4 Error rate ....................24 2.1.5 Reliability....................24...

  • Page 14: C141-E264

    Contents Defect Management ................. 36 3.3.1 Defect list ....................36 3.3.2 Alternate block allocation ................ 36 CHAPTER 4 Installation Requirements............41 Mounting Requirements................41 4.1.1 Dimensions....................41 4.1.2 Mounting orientations ................43 4.1.3 Notes on mounting ................... 44 Power Supply Requirements ..............48 Connection Requirements ................

  • Page 15: C141-E264

    Contents CHAPTER 6 Diagnostics and Maintenance ...........69 Diagnostics....................69 6.1.1 Self-diagnostics..................69 6.1.2 Test programs....................72 Maintenance....................73 6.2.1 Precautions....................73 6.2.2 Maintenance requirements................74 6.2.3 Maintenance levels ...................75 6.2.4 Tools and test equipment ................75 6.2.5 Tests ......................76 Operation Check ..................77 6.3.1 Initial seek operation check ..............77 6.3.2 Operation test ....................77 6.3.3 Diagnostic test...................77 Troubleshooting ..................78...

  • Page 16: C141-E264

    Contents 7.2.4 Sense data (5-2x-xx), (B-47-xx), (B-4B-xx) and (B-4E-00): interface error................... 88 Glossary ....................... 89 Acronyms and Abbreviations ................91 Index ........................93 C141-E264...

  • Page 17: C141-E264

    Contents Illustrations Figures Figure 1.1 Example of FC-AL system configuration ........18 Figure 3.1 Cylinder configuration..............28 Figure 3.2 Spare area in cell ................30 Figure 3.3 Alternate cylinder ................30 Figure 3.4 Track format .................. 31 Figure 3.5 Track skew/head skew..............32 Figure 3.6 Sector format .................

  • Page 18: C141-E264

    Contents Tables Table 2.1 Model names and order numbers........... 19 Table 2.2 Function specifications ..............20 Table 2.3 Environmental/Power requirements ..........23 Table 3.1 Format capacity ................34 Table 4.1 Surface temperature check point and maximum temperature ..46 Table 4.2 Interface (FC-SCA2) connector signal allocation: CN1....

  • Page 19: Chapter 1 General Description

    CHAPTER 1 General Description Standard Features Hardware Structure System Configuration This chapter describes the feature and configuration of the MBA3xxxFD. The HDDs are high performance large capacity 3.5-inch hard disk drives with an embedded Fibre-Channel controller. The interface used to connect the HDDs to the host system complies with NCITS TR-19 Fibre Channel Private Loop SCSI Direct Attach (FC-PLDA), which is the Fibre Channel PLDA standard covering items ranging from Fibre Channel physical layers to SCSI command protocols.
  • Page 20 General Description High-speed data transfer The maximum data-transfer speed on the Fibre Channel loop is 425.0 MB/s. The large-capacity data buffer of the HDDs enable the effective use of such high-speed data transfers available on the Fibre Channel loop. Continuous block processing The addressing method of data blocks is logical block address.
  • Page 21 1.1 Standard Features (11) Enclosure service function The HDDs support the enclosure service interface (ESI), which complies with SFF-8067. The ESI interface enables use of the SCSI-3 enclosure service command set (SES) so that the functions that specify and read enclosure service information can be used. (12) Error recovery The HDDs can try to recover from errors in the HDD using its powerful retry processing.
  • Page 22 General Description (18) Start/Stop of spindle motor Using the SCSI command, the host system can start and stop the spindle motor. (19) Diagnosis The HDDs have a diagnostic capability which checks internal controller functions and HDD operations. Also, for early detection of and recovery from the errors on the disk, the HDD has a function for periodically implementing a full scan of the disk.

  • Page 23: 1.2 Hardware Structure

    1.2 Hardware Structure Hardware Structure The HDDs have a disk enclosure (DE) and a printed circuit board assembly (PCBA). The DE includes heads on an actuator and disks on a spindle motor mounted on the DE. The PCBA includes a read/write circuit and a controller circuit. Disks The disks have an outer diameter of 70 mm (2.8 inch).

  • Page 24: System Configuration

    General Description System Configuration For the Fibre Channel, the ANSI standard defines Arbitrated Loop, Fabric, and Point-to-Point technologies. The HDDs support the Arbitrated Loop technology. Figure 1.1 gives an example of the FC-AL system configuration. Port B Port B Initiator (Node-1) (Node-2) Port A...

  • Page 25: Chapter 2 Specifications

    The data format can be changed by reinitializing with the user's system. Table 2.1 Model names and order numbers Capacity Model name Order number Interface type (user area) MBA3300FD CA06776-B400 SCA2, FC-AL 300 GB (*) MBA3147FD CA06776-B200 SCA2, FC-AL 147 GB (*)

  • Page 26: Function Specifications

    Specifications 2.1.2 Function specifications Table 2.2 shows the function specifications of the HDDs. Table 2.2 Function specifications Specification Item MBA3300FD MBA3147FD MBA3073FD Formatted capacity (*1) 300 GB (*2) 147 GB (*2) 73.5 GB (*2) Number of disks Number of heads Tracks per Surface 82604 cyl typ.
  • Page 27 2.1 Hardware Specifications (*1) The formatted capacity can be changed by changing the logical block length and using spare sector space. See Chapter 3 for the further information. The formatted capacity listed in the table is an estimate for 512 bytes per sector. (*2) One gigabyte (GB) = one billion bytes;...
  • Page 28 Specifications (*8) The eye mask is as follows: Normalized time [U1] Parameter Units 1 Gbps 2 Gbps 4 Gbps 1000 1000 0.165 0.215 0.31 0.355 0.405 (*9) 1 MB = 1,048,576 bytes. C141-E264...

  • Page 29: Environmental Specifications

    2.1 Hardware Specifications 2.1.3 Environmental specifications Table 2.3 lists environmental and power requirements. Table 2.3 Environmental/Power requirements Specification Item MBA3300FD MBA3147FD MBA3073FD Operating 5 to 55 °C Non-operating –40 to 70 °C Temperature Transport –40 to 70 °C (*1) DE surface temperature at 5 to 60 °C...

  • Page 30: Error Rate

    Specifications (*1) For detail condition, see Section 4.1. (*2) Vibration applied to the HDD is measured at near the mounting screw hole on the frame as much as possible. (*3) At random seek write/read and default on retry setting with log sweep vibration. (*4) At power-off state after installation (*5)
  • Page 31 2.1 Hardware Specifications Mean Time To Repair (MTTR) MTTR is the average time taken by a well-trained service mechanic to diagnose and repair an HDD malfunction. The HDD is designed for a MTTR of 30 minutes or less. Service life The service life under suitable conditions and treatment is as follows.
  • Page 32 This page is intentionally left blank.

  • Page 33: Chapter 3 Data Format

    CHAPTER 3 Data Format Data Space Logical Data Block Addressing Defect Management This chapter explains data space definition, logical data block addressing, and defect management on the HDDs. Data Space The HDDs manage the entire data storage area divided into the following three data spaces. •...

  • Page 34: Figure 3.1 Cylinder Configuration

    Data Format Note: Spare sectors on the last track in each cell are not necessarily placed at the end of the track because of a track skew or a cylinder skew. (Details are explained in Subsection 3.1.3) Figure 3.1 Cylinder configuration Apart from the above logical configuration, the HDDs intend to increase the storage capacity by dividing all cylinders into several zones and changing a recording density of each zone.
  • Page 35 3.1 Data Space User space The user space is a storage area for user data. The data format on the user space (the length of data block and the number of data blocks) can be specified with the MODE SELECT or MODE SELECT EXTENDED command.

  • Page 36: Alternate Spare Area

    Data Format 3.1.2 Alternate spare area The alternate spare area consists of the last track of each cell in the user space and an alternate cylinder allocated to the last 10 cylinders of the last zone in the user space. The spare area in each cell is placed at the end of the last track as shown in Figure 3.2.

  • Page 37: Track Format

    3.1 Data Space 3.1.3 Track format Physical sector allocation Figure 3.4 shows the allocation of the physical sectors in a track. The length in bytes of each physical sector and the number of sectors per track vary depending on the logical data block length. The unused area (G4) exists at the end of the track in formats with most logical data block lengths.

  • Page 38: Sector Format

    Data Format Track skew Head Track skew Head skew Head Leading logical sector in head p+1 Figure 3.5 Track skew/head skew The number of physical sectors (track skew factor and head skew factor) corresponding to the skew time varies depending on the logical data block length because the track skew and the head skew are managed for individual sectors.
  • Page 39 3.1 Data Space Each sector on the track consists of the following fields: Gaps (G1, G2, G3) No pattern is written on the gap field. PLO Sync In this field, pattern X'00' is written. Sync Mark (SM1, SM2) In this field, special pattern is written. This special pattern indicates the beginning of the data field. Data field (DATA1-DATA4) User data is stored in the data field of the sector.

  • Page 40: Format Capacity

    READ CAPACITY, MODE SENSE, or MODE SENSE EXTENDED command after initializing the disk. Table 3.1 Format capacity Model Data block length User blocks Format capacity MBA3300FD 585,937,500 300GB (*) MBA3147FD 287,277,984 147GB (*) MBA3073FD 143,638,992 73.5GB (*)
  • Page 41 3.2 Logical Data Block Addressing Block address of user space The logical data block address number is consecutively assigned to all of the data blocks in the user space starting with 0 to the first data block. The HDDs treat sector 0, track 0, cylinder 0 as the first logical data block. The data block is allocated in ascending order of addresses in the following sequence (refer to Figure 3.5): 1) Logical data blocks are assigned in ascending order of sector number in the same track.

  • Page 42: Defect Management

    Data Format Defect Management 3.3.1 Defect list Information of the defect location on the disk is managed by the defect list. The following are defect lists which the HDDs manage. • P list (Primary defect list): This list consists of defect location information available at the HDD shipment and is recorded in a system space.

  • Page 43: Figure 3.7 Alternate Block Allocation By Format Unit Command

    3.3 Defect Management Alternate block allocation during FORMAT UNIT command execution When the FORMAT UNIT command is specified, the allocation of the alternate block to those defective sectors included in the defect list (P, G, or D) is continued until all spare sectors in the same cell are used up.

  • Page 44: Figure 3.8 Alternate Block Allocation By Reassign Blocks Command

    Data Format Certification is permitted when DCRT flag is cleared (DCRT flag=0) in FORMAT UNIT command. The HDDs check all initialized logical data blocks by reading them out after the above alternate block allocation is made to initialize (format) the disk. Alternate block allocation by REASSIGN BLOCKS command When the REASSIGN BLOCKS command is specified, the alternate block is allocated to the defective logical data block specified by the initiator by means of alternate sector treatment.
  • Page 45 3.3 Defect Management Automatic alternate block allocation • Automatic alternate block allocation at read operation If the ARRE flag in the MODE SELECT parameter permits the automatic alternate block allocation, the HDDs automatically execute the alternate block allocation and data duplication on the defective data block detected during the READ or READ EXTENDED command.
  • Page 46 Data Format Type 2 (Reassignment of write fail sector) 1) Commands to be applied WRITE WRITE EXTENDED FORMAT UNIT WRITE at executing WRITE AND VERIFY 2) Application requirements / processing When WRITE/WRITE EXTENDED command detects any Servo error (e.g. Write offtrack error) and cannot be recovered within pre-determined retry number (specified in Mode Parameter).

  • Page 47: Chapter 4 Installation Requirements

    CHAPTER 4 Installation Requirements Mounting Requirements Power Supply Requirements Connection Requirements This chapter describes the environmental, mounting, power supply, and connection requirements. Mounting Requirements 4.1.1 Dimensions Figures 4.1 show the dimensions of the HDDs and the location of the mounting screw holes. C141-E264...

  • Page 48: Figure 4.1 Dimensions

    Installation Requirements [Unit: mm] (*) is a dimention between the screw holes for the bottom mouting. Figure 4.1 Dimensions C141-E264...

  • Page 49: Mounting Orientations

    4.1 Mounting Requirements 4.1.2 Mounting orientations As shown in Figure 4.2, the HDD can be installed flat on any of its six sides. Inclination from a vertical or horizontal plane should not exceed 5°. (a) Horizontal –1 (b) Horizontal –2 (c) Vertical –1 (d) Vertical –2 (e) Upright mounting –1...

  • Page 50: Notes On Mounting

    Installation Requirements 4.1.3 Notes on mounting Damage Never remove any labels from the HDD or deface them in any way. Mounting screw Use No.6-32UNC Mounting frame structure Special attention must be given to mount the HDDs as follows. Use the frame with an embossed structure, or the like. Mount the HDDs with making a gap of 2.5 mm or more between the HDDs and the frame of the system.

  • Page 51: Figure 4.4 Limitation Of Side-Mounting

    4.1 Mounting Requirements Limitation of side-mounting Mount the HDDs using the 4 screw holes at the both ends on the both sides as shown in Figure 4.4. Do not use the center hole by itself. In case of using the center hole, it must be used in combination with 2 holes on both ends. (Total 6 screws for 6 holes enclosed) Figure 4.4 Limitation of side-mounting...

  • Page 52: Figure 4.5 Surface Temperature Measurement Points

    Installation Requirements Environmental temperature Temperature condition at installed in a cabinet is indicated with ambient temperature measured 30 mm from the HDD. At designing the system cabinet, consider following points. • Make a suitable air flow so that the DE surface temperature never exceed 60°C. •...
  • Page 53 4.1 Mounting Requirements External magnetic field The HDD should not be installed near the ferromagnetic body like a speaker to avoid the influence of the external magnetic field. Leak magnetic flux The HDDs use a high performance magnet to achieve a high speed seek. Therefore, a leak magnetic flux at surface of the HDDs are large.

  • Page 54: Power Supply Requirements

    Subsection 2.1.3. (For other requirements, see Items (4) and (5) below.) Current waveform (reference) Figure 4.6 shows the spin-up current waveform of +5V DC and +12V DC. +5VDC MBA3300FD MBA3147FD MBA3073FD Time (2 sec/div) Time (2 sec/div)

  • Page 55: Figure 4.7 Current Waveform (Max Seek)

    4.2 Power Supply Requirements Figure 4.7 shows the Max Seek current waveform of +5V DC and +12V DC. +5VDC MBA3300FD MBA3147FD MBA3073FD Time (10 msec/div) Time (10 msec/div) Time (10 msec/div) +12VDC MBA3300FD MBA3147FD MBA3073FD Time (10 msec/div) Time (10 msec/div) Time (10 msec/div) Figure 4.7...

  • Page 56: Connection Requirements

    Installation Requirements Noise filter To eliminate AC line noise, a noise filter should be installed at the AC input terminal on the HDD power supply unit. The specification of this noise filter is as follows: • Attenuation: 40 dB or more at 10 MHz •...

  • Page 57: Interface Connector

    4.3 Connection Requirements 4.3.2 Interface connector The connector for the Fibre Channel Loop is an unshielded SCA-2 connector which has two 20-pin rows spaced 1.27 mm (0.05 inch) apart. Figure 4.10 shows the connector. Table 4.2 lists the signal allocation of the connector on the HDDs. Figure 4.10 SCA2 type connector C141-E264...

  • Page 58: Table 4.2 Interface (Fc-Sca2) Connector Signal Allocation: Cn1

    Installation Requirements Table 4.2 Interface (FC-SCA2) connector signal allocation: CN1 Pin No. Signal Signal Pin No. –EN bypass port A +12V charge +12V +12V +12V +PortA_in –Parallel ESI –PortA_in –Drive present Active LED out +PortB_in –Spindle sync –PortB_in Start_1/Mated Start_2/Mated +PortA_out –EN bypass port B –PortA_out...

  • Page 59: Chapter 5 Installation

    CHAPTER 5 Installation Notes on Handling HDDs Setting Mounting HDDs Checking Operation after Installation and Preparing the HDDs for Use Dismounting HDDs This chapter describes the notes on handling HDDs, setting, mounting HDDs, confirming HDD operations after installation and preparation for use, and dismounting HDDs. Notes on Handling HDDs The items listed in the specifications in Table 2.2 must be strictly observed.
  • Page 60 Installation Unpackaging a) Use a flat work area. Check that the "This Side Up" sign side is up. Handle the package on soft material such as a rubber mat, not on hard material such as a desk. b) Be careful not to give excess pressure to the internal unit when removing cushions. c) Be careful not to give excess pressure to the PCBA and interface connector when removing the HDD from the Fcell (Fig.

  • Page 61: 5.2 Setting

    5.2 Setting Setting 5.2.1 Loop ID setting When setting the fibre channel loop ID, use SEL0 to SEL6 of interface connector CN1. In bit weighting, SEL6 corresponds to the MSB, SEL0 to the LSB, and 126 types of X'00' to X'7D' can be specified as loop IDs.

  • Page 62: Mounting Hdds

    Installation Mounting HDDs 5.3.1 Mounting procedures Since mounting the HDD depends on the system cabinet structure, determine the work procedures considering the requirements specific to each system. The general mounting method and items to be checked are shown below. See Section 4.1 for the details of requirements for installing the HDDs. 1) Fix the HDD in the system cabinet with four mounting screws as follows: •...

  • Page 63: 5.4 Checking Operation After Installation And Preparing The Hdds For Use

    5.4 Checking Operation after Installation and Preparing the HDDs for Use Checking Operation after Installation and Preparing the HDDs for Use 5.4.1 Checking initial operation This section explains how to check operation after power is turned on. Since the initial operation of an HDD differs depending on the settings of the motor start mode, check the following initial operations according to the motor start mode set during installation.

  • Page 64: Checking Connection

    Installation The LED goes off while the HDD command is being executed. For some commands, however, since the Active LED goes off for only a fraction of a second, the Active LED looks like it flashes or remains lit. 5.4.2 Checking connection When the initial operation is checked normally after power is turned on, check that the HDD is connected to the loop from the host system.

  • Page 65: Figure 5.1 Checking The Hdd Connection (A)

    5.4 Checking Operation after Installation and Preparing the HDDs for Use Motor starts when power is turned on *: Including execution time of initial self-diagnostics Figure 5.1 Checking the HDD connection (A) C141-E264...

  • Page 66: Figure 5.2 Checking The Hdd Connection (B)

    Installation Motor starts by START/STOP command * Executing time: about 60 seconds *: Including execution time of initial self-diagnostics Figure 5.2 Checking the HDD connection (B) C141-E264...

  • Page 67: Formatting

    5.4 Checking Operation after Installation and Preparing the HDDs for Use Checking at abnormal end a) When sense data can be obtained with the REQUEST SENSE command, analyze the sense data and retry recovery for a recoverable error. Refer to Chapter 6 "Sense Data and Error Recovery Method"...
  • Page 68 Installation FORMAT UNIT command Initialize entire recording surface of the disk with the FORMAT UNIT command. The FORMAT UNIT command initializes entire surface of the disk using the P lists, verifies data blocks after initialization, and allocates an alternate block for a defect block detected with verification. With initialization, the pattern specified with the initialization data pattern field is written into all bytes of all logical data blocks.

  • Page 69: Setting Parameters

    5.4 Checking Operation after Installation and Preparing the HDDs for Use 5.4.4 Setting parameters The user can specify the optimal operation mode for the user system environments by setting the following parameters with the MODE SELECT or MODE SELECT EXTENDED command: •...
  • Page 70 Installation Error recovery parameter The following parameters are used to control operations such as the HDD internal error recovery: a. Read/write error recovery parameters (page code = 1) Parameter Default value • AWRE: Automatic alternate block allocation at Write 1 (enabled) operation •...
  • Page 71 5.4 Checking Operation after Installation and Preparing the HDDs for Use Notes: The user can arbitrarily specify the following parameters according to the system requirements: • ARRE • AWRE • • The user also can arbitrarily specify parameters other than the above. However, it is recommended to use the default setting in normal operations.
  • Page 72 Installation Control mode parameters (page code = A) The following parameters are used to control the tagged queuing and error logging. a. Control mode parameters Parameter Default value • QUEUE ALGORITHM MODIFIER 0 (Execution sequence of read/write commands is optimized.) •...

  • Page 73: 5.5 Dismounting Hdds

    5.5 Dismounting HDDs Dismounting HDDs Since the method and procedure for dismounting the HDD, etc. depends on the locker structure of the system, etc., the work procedure must be determined in consideration of the requirements specific to the system. This section describes the general procedure and notes on dismounting the HDD. High temperature To prevent injury, never touch the HDD while it is hot.
  • Page 74 This page is intentionally left blank.

  • Page 75: Chapter 6 Diagnostics And Maintenance

    CHAPTER 6 Diagnostics and Maintenance Diagnostics Maintenance Operation Check Troubleshooting Packaging This chapter describes diagnostics and maintenance. Diagnostics 6.1.1 Self-diagnostics The HDDs have the following self-diagnostic function. This function checks the basic operations of the HDDs. • Initial self-diagnostics • Online self-diagnostics (SEND DIAGNOSTIC command) Table 6.1 lists the contents of the tests performed with the self-diagnostics.
  • Page 76 Diagnostics and Maintenance Brief test contents of self-diagnostics are as follows. a. Hardware function test This test checks the basic operation of the controller section, and contains following test. • RAM (microcode is stored) • Peripheral circuits of microprocessor (MPU) •...
  • Page 77 6.1 Diagnostics Online self-diagnostics (SEND DIAGNOSTIC command) The initiator can make the HDDs execute self-diagnostics by issuing the SEND DIAGNOSTIC command. The initiator specifies the execution of self-diagnostics by setting 1 for the SelfTest bit on the CDB in the SEND DIAGNOSTIC command and specifies the test contents with the UnitOfl bit.

  • Page 78: Test Programs

    Diagnostics and Maintenance When an error is detected in the hardware function test, the HDDs post the CHECK CONDITION status for all I/O operation request except the REQUEST SENSE command. The error status is not cleared even if the error information (sense data) is read. Only when the power is turned off or re-turned on, the status can be cleared.

  • Page 79: 6.2 Maintenance

    See Section 5.1 and 6.5 for notes on packaging and handling when returning the HDD. Data loss Save data stored on the HDD to other media before requesting repair. Fujitsu does not assume responsibility if data is corrupted during servicing or repair. 6.2.1...

  • Page 80: Maintenance Requirements

    The PCBA cannot be replaced in the field. The DE cannot be replaced in the field. Service system and repairs Fujitsu has the service system and repair facility for the HDD. Contact Fujitsu representative to submit information for replacing or repairing the HDD. Generally, the following information must be...

  • Page 81: Maintenance Levels

    Replacement is usually done by the user, retail dealer, distributor, or OEM engineer. Factory maintenance (parts replacement) • This replacement can only be done by Fujitsu. • Replacement includes maintenance training and OEM engineer support. OEM engineers usually support retail dealers and distributors.

  • Page 82: Tests

    Diagnostics and Maintenance 6.2.5 Tests This HDD can be tested in the following ways: • Initial seek operation check (See Subsection 6.3.1) • Operation test (See Subsection 6.3.2) • Diagnostic test (See Subsection 6.3.3) Figure 6.1 shows the flow of these tests. Start Start self-test by turning the power on...

  • Page 83: 6.3 Operation Check

    6.3 Operation Check Operation Check 6.3.1 Initial seek operation check If an error is detected during initialization by the initial seek operation check routine at power-on, the spindle motor of the HDD stops, and then the HDD becomes unusable. For an explanation of the operation check before the initial seek, refer to the Section 5.4. 6.3.2 Operation test While the host computer is processing data, the HDDs monitor HDD operation including data...

  • Page 84: Troubleshooting

    At this level of maintenance, we recommend replacing the HDD as a unit. If replacing the HDD rectifies the fault, return the removed HDD to Fujitsu, for test and repair. If the newly installed HDD does not rectify the fault another part of the system is faulty.

  • Page 85: Table 6.2 System-Level Field Troubleshooting

    6.4 Troubleshooting Table 6.2 System-level field troubleshooting Item Recommended work DC power level Check that the DC voltage is within the specified range (±5%). For +5V DC, measure the voltage between pin 20 (+5V) of the interface connector and the nearest PCBA mounting screw (GND) from the interface connector, and confirm the value is from 4.75 to 5.25 VDC.

  • Page 86: Troubleshooting At The Repair Site

    HDD to Fujitsu for repair. A media defect list must be included with the HDD returned to Fujitsu. If the possibly faulty part is the DE, return the whole HDD to Fujitsu for repair. Also if a clear error (erroneous servo track information or noisy HDD) is detected in the DE, return the whole HDD to Fujitsu.

  • Page 87: Troubleshooting With Parts Replacement In The Factory

    Finding possibly faulty parts in the field was explained in Subsection 6.4.2. This manual does not cover finding possibly faulty parts at the factory level. Packaging When the HDD is returned to Fujitsu, the following methods are recommended. 6.5.1 Single HDD packaging Figure 6.2...

  • Page 88: Multi-Box Packaging

    Diagnostics and Maintenance Put the above unitary packaging (packed in FCELL) into the conductivity bag by securing the cushion. Put the HDD with conductivity bag into the cardboard box. Put the desiccant (10g) into the conductivity bag. Seal the conductivity bag with the packaging tape, then close the cardboard box. 6.5.2 Multi-box packaging (upper)

  • Page 89: Figure 6.4 Fraction Packaging

    6.5 Packaging Put unitary packaging (FCELL) in the cushion (lower). • At this time, FCELL is put in the cushion (lower) so that the FCELL opening may become downward. The I/F connector may become upward. • For less than 20 HDDs, insert the HDDs starting from the slot with the smallest number in Figure 6.4.
  • Page 90 This page is intentionally left blank.

  • Page 91: Chapter 7 Error Analysis

    (Auto Sense function). This HDD is equipped with sense data with a byte length of 48. Accordingly, Fujitsu recommends collecting all 48-byte sense data when the host unit collects sense data.

  • Page 92: Figure 7.1 Sense Data Format

    Error Analysis Bit 7 Byte 0 Valid X'70' or X'71' (error code) X‘00' Sense key [MSB] Information [LSB] X'28' (additional sense data length) [MSB] Basic information Command-specific information [LSB] Additional sense code Additional sense code qualifier X'00' SKSV Sense key-specific information Port Link Rate CDB operation code...

  • Page 93: 7.2 Sense Data Analysis

    7.2 Sense Data Analysis Sense Data Analysis 7.2.1 Error information indicated with sense data Table 7.1 lists the definition of sense data. For details of the following sense data, refer to Chapter 6 "Sense Data Error Recovery Methods" of the FIBRE CHANNEL INTERFACE MANUAL. Subsection 7.2.2 onwards explain troubleshooting using sense data.

  • Page 94: Sense Data (3-0C-03), (4-32-01), (4-40-Xx), (4-C4-Xx), And (4-44-Xx)

    Error Analysis 7.2.2 Sense data (3-0C-03), (4-32-01), (4-40-xx), (4-C4-xx), and (4-44-xx) Sense data (3-0C-03), (4-32-01), (4-40-xx), (4-C4-xx), and (4-44-xx) indicate one of the following: • A target sector could not be detected using the sector counter. • A seek process overran the specified time. •...

  • Page 95: Glossary

    Glossary Additional Sense Code This is a 1-byte code displayed in the sense data and is information which specifies the type of error that was detected. Command Descriptor Block A series of data which describes commands related to input/output operations, sent from the initiator to the target.
  • Page 96 This page is intentionally left blank.

  • Page 97: Acronyms And Abbreviations

    Acronyms and Abbreviations Alternating Current Hard Disk Controller ARRE Automatic Read Reallocation Hard Disk Drive Enabled AWRE Automatic Write Reallocation Enabled IDentifier Input/Output Bits Per Inch Light Emitting Diode Large-Scale Integration circuit Command Descriptor Block CmpLst Complete List Cyclic Redundancy Check CYLinder MEEPRML Modified Enhanced Extended Partial...
  • Page 98 Acronyms and Abbreviations Serial/Number UnitOfl Unit Offline SCSI Small Computer System Interface SeCTor SELect Voice Coil Motor SelfTest Self Test Save Page SPindle Motor Write Cache Enable Transfer Block Tracks Per Inch C141-E264...

  • Page 99: Index

    Index acoustic noise........... 20 data field ............33 actuator ............17 data format ............27 data security at power failure......25 additional sense code ........85 additional sense code qualifier......85 data space............27 allowable input voltage........48 defect list............36 alternate area............
  • Page 100 Index gap..............33 noise filter ............50 general description ........... 13 note on handling HDDs........53 general note............53 note on mounting ..........44 hardware function test........70 online self-diagnostic ........71 hardware specification ........19 operation check ..........77 hardware structure..........
  • Page 101 Index service system ..........74 track skew ............31 setting parameter..........63 troubleshooting ..........78 specification............. 19 troubleshooting at repair site......80 spindle motor ........... 17 troubleshooting with HDD replacement in standard feature..........13 field ............78 start/stop of spindle motor ....... 16 troubleshooting with part replacement in START/STOP UNIT command.......
  • Page 102 This page is intentionally left blank.
  • Page 103 List any errors or suggestions for improvement. Page Line Contents Please send this form to the address below. We will use your comments in planning future editions. Address: Fujitsu Learning Media Limited 37-10 Nishikamata 7-chome Oota-ku Tokyo 144-0051 JAPAN Fax: 81-3-3730-3702...
