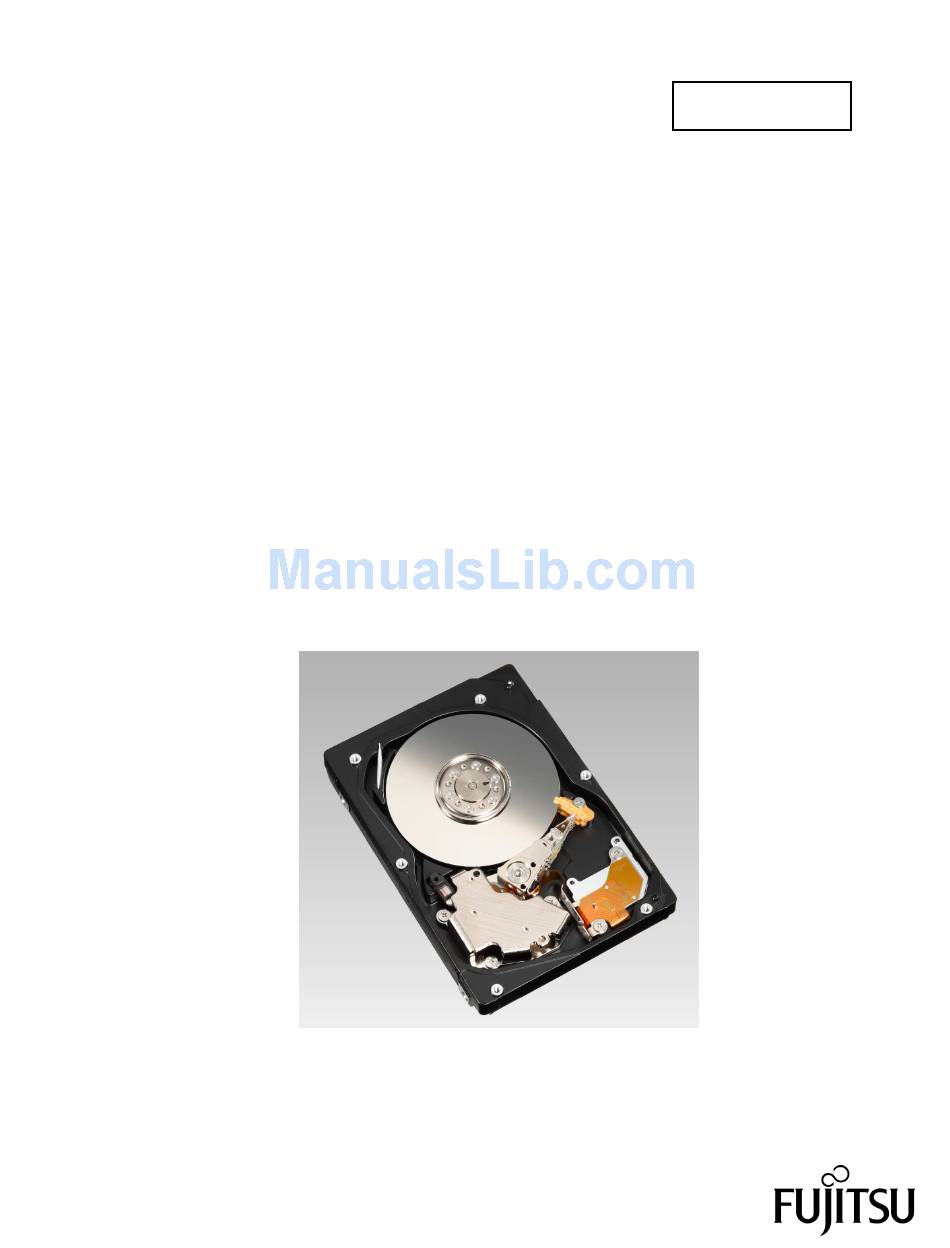

- Page 1 C141-E266-01EN MBC2073RC MBC2036RC HARD DISK DRIVES PRODUCT MANUAL...
- Page 2 In addition, FUJITSU assumes no liability with respect to the application or use of any product or system in accordance with the descriptions or instructions contained herein; including any liability for incidental or consequential damages arising therefrom.
- Page 3 REVISION RECORD Edition Date published Revised contents August, 2007 Specification No.: C141-E266-**EN C141-E266...
- Page 4 Related Standards Product specifications and functions described in this manual comply with the following ANSI (*1) standards and SFF Committee specifications. Document number Title T10/1236D Rev.20 SCSI Primary Commands-2 (SPC-2) [NCITS.351:2001] T10/996D Rev. 8c SCSI-3 Block Commands (SBC) [NCITS.306:1998] T10/1157D Rev. 24 SCSI Architecture Model-2 (SAM-2) T10/1561D Rev.
-
Page 5: Chapter 1 General Description
Preface This manual describes MBC2073RC and MBC2036RC, 2.5-inch type hard disk drives with an embedded Serial Attached SCSI (SAS). This manual details the specifications and functions of the above disk drive, and gives the requirements and procedures for installing it into a host computer system. - Page 6 Preface CONVENTIONS USED IN THIS MANUAL MBC2073RC and MBC2036RC hard disk drives are described as "the HDD" in this manual. Decimal number is represented normally. Hexadecimal number is represented as X'17B9', 17B9h or 17B9H. Binary number is represented as "010".
-
Page 7: Important Alert Items
Important Alert Items Important Alert Messages The important alert messages in this manual are as follows: A hazardous situation could result in minor or moderate personal injury if the user does not perform the procedure correctly. Also, damage to the product or other property, may occur if the user does not perform the procedure correctly. - Page 8 Data loss Save data stored on the HDD to other media before requesting repair. Maintenance Fujitsu does not assume responsibility if data is corrupted during servicing or repair. High temperature To prevent injury, never touch the HDD while it is hot. The DE and LSI become hot during operation and remain hot immediately after turning off the power.
- Page 9 MANUAL ORGANIZATION PRODUCT MANUAL 1. General Description 2. Specifications (This manual) 3. Data Format 4. Installation Requirements 5. Installation 6. Diagnostics and Maintenance 7. Error Analysis SAS INTERFACE 1. SAS Interface MANUAL 2. Command Processing 3. Data Buffer Management 4. Command Specifications 5.
- Page 10 This page is intentionally left blank.
-
Page 11: Table Of Contents
CONTENTS CHAPTER 1 General Description..............13 Standard Features ..................13 Hardware Structure ...................17 System Configuration ................18 CHAPTER 2 Specifications ................21 Hardware Specifications ................21 2.1.1 Model name and order number ..............21 2.1.2 Function specifications................22 2.1.3 Environmental specifications ..............24 2.1.4 Error rate ....................25 2.1.5 Reliability....................25 CHAPTER 3 Data Format.................27 Data Space....................27... - Page 12 Contents 4.1.2 Mounting orientations ................42 4.1.3 Notes on mounting ................... 43 Power Supply Requirements ..............46 Connection Requirements ................ 48 4.3.1 Connector location ................... 48 4.3.2 Interface connector ................... 49 4.3.3 Ready LED output signal ................. 51 4.3.4 Connector requirements ................51 CHAPTER 5 Installation ..................
- Page 13 Contents Operation Check ..................71 6.3.1 Initial seek operation check...............71 6.3.2 Operation test ....................71 6.3.3 Diagnostic test...................71 Troubleshooting ..................72 6.4.1 Outline of troubleshooting procedures............72 6.4.2 Troubleshooting with HDD replacement in the field........72 6.4.3 Troubleshooting at the repair site..............74 6.4.4 Troubleshooting with parts replacement in the factory......75 6.4.5 Finding possibly faulty parts..............75 Packaging ....................76 6.5.1 Bag packaging...................76...
- Page 14 Contents Illustrations Figures Figure 1.1 Example of SAS system configuration (Dual port internal cabled environment)............... 18 Figure 1.2 Example of SAS system configuration (Dual port internal backplane environment)..............18 Figure 3.1 Cylinder configuration ..............28 Figure 3.2 Spare area in cell ................30 Figure 3.3 Alternate cylinder................
- Page 15 Contents Tables Table 2.1 Model names and order numbers........... 21 Table 2.2 Function specifications ..............22 Table 2.3 Environmental/Power requirements ..........24 Table 3.1 Format capacity ................34 Table 4.1 Surface temperature check point and maximum temperature..45 Table 4.2 Interface connector (SAS plug) signal allocation:CN1 ....
- Page 16 This page is intentionally left blank.
-
Page 17: Chapter 1 General Description
CHAPTER 1 General Description Standard Features Hardware Structure System Configuration This chapter describes the feature and configuration of the hard disk drives (HDDs). The HDDs are high performance large capacity 2.5-inch hard disk drives with an embedded Serial Attached SCSI (SAS) controller. The interface used to connect the HDDs to the host system complies with ANSI T10/1601-D Serial Attached SCSI-1.1 (SAS-1.1), which covers items ranging from SAS physical layers to SCSI command protocols. - Page 18 General Description Dual SAS port support The HDDs have two pairs of driver and receiver set (PHY) for the SAS to support dual SAS port connection. On HDDs, Primary and Secondary Ports on SAS plug connector (2 physical links plus power connections) are used for SAS port connection.
- Page 19 1.1 Standard Features Command queuing feature The HDDs can queue maximum 128 commands, and optimizes the issuing order of queued commands by the reordering function. This feature realizes the high speed processing. (10) Reserve and release functions The HDDs can be accessed exclusively in the multi-host or multi-initiator environment by using the reserve and release functions.
- Page 20 General Description (16) Large capacity A large capacity can be obtained from the HDDs by dividing all cylinders into several partitions and changing the recording density on each partition (constant density recording). The disk subsystem with large capacity can be constructed in the good space efficiency. (17) Start/Stop of spindle motor Using the SAS primitive or the SCSI command, the host system can start and stop the spindle motor.
-
Page 21: 1.2 Hardware Structure
1.2 Hardware Structure Hardware Structure The HDDs have a disk enclosure (DE) and a printed circuit board assembly (PCBA). The DE includes heads on an actuator and disks on a spindle motor mounted on the DE. The PCBA includes a read/write circuit and a controller circuit. Disks The disks have an outer diameter of 54 mm (2.13 inch). -
Page 22: System Configuration
General Description System Configuration For the Serial Attached SCSI, the ANSI standard defines Point-to-Point technology. Figure 1.1 and Figure 1.2 give examples of the SAS system configuration. SATA style cable SAS Plug Connector receptacle connector (SAS Device) SAS Initiator Device Power/LED Cable SAS Expander Device... - Page 23 1.3 System Configuration Port addressing Every device connected with the SAS protocol has a unique address (SAS address). SAS addresses are in the Name Address Authority (NAA) IEEE Registered format defined by SCSI Primary Command-2 (SPC-2). An SAS address consists of 8 bytes as a unique value set for each device. The initiator can implement an I/O operation on an HDD by using the corresponding SAS address stored by the HDDs.
- Page 24 This page is intentionally left blank.
-
Page 25: Chapter 2 Specifications
Model names and order numbers Interface type Capacity Model name Order number (user area) MBC2073RC CA06771-B200 73.5 GB (*) MBC2036RC CA06771-B100 36.7 GB (*) (*) One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting. -
Page 26: Function Specifications
Specifications 2.1.2 Function specifications Table 2.2 shows the function specifications of the HDDs. Table 2.2 Function specifications Specification Item MBC2073RC MBC2036RC Formatted capacity (*1) 73.5 GB (*2) 36.7 GB (*2) Number of disks Number of heads 46,000 cyl typ. Tracks per Surface... - Page 27 2.1 Hardware Specifications (*3) The seek time is as follows: Seek difference [4096 Cyl/div] (*4) The start time is the time from power on or start command to when the HDDs are ready, and the stop time is the time for disks to completely stop from power off or stop command. This value indicates in idle mode.
-
Page 28: Environmental Specifications
(*9) 1 MB = 1,048,576 bytes. 2.1.3 Environmental specifications Table 2.3 lists environmental and power requirements. Table 2.3 Environmental/Power requirements Specification Item MBC2073RC MBC2036RC Operating 5 to 55 °C Non-operating –40 to 70 °C Temperature Transport –40 to 70 °C... -
Page 29: Error Rate
2.1 Hardware Specifications (*1) For detail condition, see Section 4.1. (*2) Vibration applied to the HDD is measured at near the mounting screw hole on the frame as much as possible. (*3) At random seek write/read and default on retry setting with log sweep vibration. (*4) At power-off state after installation (*5) - Page 30 Specifications Mean Time To Repair (MTTR) MTTR is the average time taken by a well-trained service mechanic to diagnose and repair an HDD malfunction. The HDD is designed for a MTTR of 30 minutes or less. Service life The service life under suitable conditions and treatment is as follows. The service life is depending on the environment temperature.
-
Page 31: Chapter 3 Data Format
CHAPTER 3 Data Format Data Space Logical Data Block Addressing Defect Management This chapter explains data space definition, logical data block addressing, and defect management on the HDDs. Data Space The HDDs manage the entire data storage area divided into the following three data spaces. •... -
Page 32: Figure 3.1 Cylinder Configuration
Data Format Physics Cylinder System space Cylinder0 Head0 Cylinder1 Head1 Cell0 Cylinder0 Head (a-1) Zone0 Spare sectors for each cell User Space Cell Spare sectors for each cell Zone1 Zone (X-1) Change for cell Alternate Cell (10) Spare Last Cylinder Cylinder Note: Spare sectors on the last track in each cell are not necessarily placed at the end of the track... - Page 33 3.1 Data Space User space The user space is a storage area for user data. The data format on the user space (the length of data block and the number of data blocks) can be specified with the MODE SELECT or MODE SELECT EXTENDED command.
-
Page 34: Alternate Spare Area
Data Format 3.1.2 Alternate spare area The alternate spare area consists of the last track of each cell in the user space and an alternate cylinder allocated to the last 10 cylinders of the last zone in the user space. The spare area in each cell is placed at the end of the last track as shown in Figure 3.2. -
Page 35: Track Format
3.1 Data Space 3.1.3 Track format Physical sector allocation Figure 3.4 shows the allocation of the physical sectors in a track. The length in bytes of each physical sector and the number of sectors per track vary depending on the logical data block length. The unused area (G4) exists at the end of the track in formats with most logical data block lengths. -
Page 36: Sector Format
Data Format Track skew Head Track skew Head skew Head Leading logical sector in head p+1 Figure 3.5 Track skew/head skew The number of physical sectors (track skew factor and head skew factor) corresponding to the skew time varies depending on the logical data block length because the track skew and the head skew are managed for individual sectors. - Page 37 3.1 Data Space Each sector on the track consists of the following fields: Gaps (G1, G2, G3) No pattern is written on the gap field. PLO Sync In this field, pattern X'00' is written. Sync Mark (SM1, SM2) In this field, special pattern is written. This special pattern indicates the beginning of the data field. Data field (DATA1-DATA4) User data is stored in the data field of the sector.
-
Page 38: Format Capacity
EXTENDED command after initializing the disk. Table 3.1 Format capacity Model Data block length User blocks Format capacity MBC2073RC 143,638,992 73.5 GB (*) MBC2036RC 71,819,496 36.7 GB (*) (*) One gigabyte (GB) = one billion bytes; accessible capacity will be less and actual capacity depends on the operating environment and formatting. - Page 39 3.2 Logical Data Block Addressing Block address of user space The logical data block address number is consecutively assigned to all of the data blocks in the user space starting with 0 to the first data block. The HDDs treat sector 0, track 0, cylinder 0 as the first logical data block. The data block is allocated in ascending order of addresses in the following sequence (refer to Figure 3.5): 1) Logical data blocks are assigned in ascending order of sector number in the same track.
-
Page 40: Defect Management
Data Format Defect Management 3.3.1 Defect list Information of the defect location on the disk is managed by the defect list. The following are defect lists which the HDDs manage. • P list (Primary defect list): This list consists of defect location information available at the HDD shipment and is recorded in a system space. -
Page 41: Figure 3.7 Alternate Block Allocation By Format Unit Command
3.3 Defect Management Alternate block allocation during FORMAT UNIT command execution When the FORMAT UNIT command is specified, the allocation of the alternate block to those defective sectors included in the defect lists (P, G, or D) is continued until all spare sectors in the same cell are used up. -
Page 42: Figure 3.8 Alternate Block Allocation By Reassign Blocks
Data Format If above errors are detected during FORMAT UNIT command, the HDDs allocate the alternate block(s) to the defective data blocks. Reassign procedure itself is the same as one in REASSIGN BLOCKS command. Certification is permitted when DCRT flag is cleared (DCRT flag=0) in FORMAT UNIT command. - Page 43 3.3 Defect Management Automatic alternate block allocation • Automatic alternate block allocation at read operation If the ARRE flag in the MODE SELECT parameter permits the automatic alternate block allocation, the HDDs automatically execute the alternate block allocation and data duplication on the defective data block detected during the READ or READ EXTENDED command.
- Page 44 Data Format Type 2 (Reassignment of write fail sector) 1) Commands to be applied WRITE WRITE EXTENDED FORMAT UNIT WRITE at executing WRITE AND VERIFY 2) Application requirements / processing When WRITE/WRITE EXTENDED command detects any Servo error (e.g. Write offtrack error) and cannot be recovered within pre-determined retry number (specified in Mode Parameter).
-
Page 45: Chapter 4 Installation Requirements
CHAPTER 4 Installation Requirements Mounting Requirements Power Supply Requirements Connection Requirements This chapter describes the environmental, mounting, power supply, and connection requirements. Mounting Requirements 4.1.1 Dimensions Figures 4.1 show the dimensions of the HDDs and the location of the mounting screw holes. [Unit: mm] Figure 4.1 Dimensions... -
Page 46: Mounting Orientations
Installation Requirements 4.1.2 Mounting orientations As shown in Figure 4.2, the HDD can be installed flat on any of its six sides. Inclination from a vertical or horizontal plane should not exceed 5°. Direction of gravity Figure 4.2 HDD orientations C141-E266... -
Page 47: Notes On Mounting
4.1 Mounting Requirements 4.1.3 Notes on mounting Damage Never remove any labels from the HDD or deface them in any way. Mounting screw The mounting screws must use M3 × 0.5 metric Mounting frame structure As for a system frame structure mounting the HDDs, the following attentions are required. The frame never touches any components on the PCBA of the HDDs. -
Page 48: Figure 4.4 Vent Hole Location
Installation Requirements Limitation of side-mounting Use all 4 mounting holds on the both sides. Limitation of bottom-mounting Use all 4 mounting holds on the bottom face. Vent hole Never cover the vent hole as shown in Figure 4.4. Figure 4.4 Vent hole location C141-E266... -
Page 49: Figure 4.5 Surface Temperature Measurement Points
4.1 Mounting Requirements Environmental temperature Temperature condition at installed in a cabinet is indicated with ambient temperature measured 30 mm from the HDD. At designing the system cabinet, consider following points. • Make a suitable air flow so that the DE surface temperature never exceed 60°C. •... -
Page 50: Power Supply Requirements
Subsection 2.1.3. (For other requirements, see Items (4) below.) Current waveform (reference) Figure 4.6 shows the spin-up current waveform of +5V DC and +12V DC. +5VDC MBC2073RC MBC2036RC Time (2 sec/div) Time (2 sec/div) +12VDC... -
Page 51: Figure 4.7 Current Waveform (Max Seek)
4.2 Power Supply Requirements Figure 4.7 shows the Max Seek current waveform of +5V DC and +12V DC. +5VDC MBC2036RC MBC2073RC Time (10msec/div) Time (10msec/div) +12VDC MBC2036RC MBC2073RC Time (10msec/div) Time (10msec/div) Figure 4.7 Current waveform (Max seek) Power on/off sequence The order of the power on/off sequence of +5V DC and +12V DC, supplied to the HDDs, does not matter. -
Page 52: Connection Requirements
Installation Requirements Noise filter To eliminate AC line noise, a noise filter should be installed at the AC input terminal on the HDD power supply unit. The specification of this noise filter is as follows: • Attenuation: 40 dB or more at 10 MHz •... -
Page 53: Interface Connector
4.3 Connection Requirements 4.3.2 Interface connector Figure 4.10 shows the SAS type interface connector (SAS plug) overview. Table 4.2 lists the signal allocation of the SAS plug on the HDDs. Top view Bottom view Top view Bottom view Figure 4.10 SAS plug connector overview C141-E266... -
Page 54: Table 4.2 Interface Connector (Sas Plug) Signal Allocation:cn1
Installation Requirements Table 4.2 Interface connector (SAS plug) signal allocation:CN1 Pin No. Signal Description GND for SAS Primary Port SAS Primary Port Receive (positive) signal SAS Primary Port Receive (negative) signal GND for SAS Primary Port SAS Primary Port Transmit (negative) signal SAS Primary Port Transmit (positive) signal GND for SAS Primary Port GND for SAS Secondary Port... -
Page 55: Ready Led Output Signal
4.3 Connection Requirements 4.3.3 Ready LED output signal Figure 4.11 shows a recommended circuit for external LED connection to Ready LED output signal. Figure 4.11 Recommended external circuit for Ready LED output Either +3.3 V or +5 V can be used for external power supply for LED (Vcc). Current limiting resister (R) value need to be adjusted depend on the Vcc voltage. - Page 56 This page is intentionally left blank.
-
Page 57: Chapter 5 Installation
CHAPTER 5 Installation Notes on Handling HDDs Setting Mounting HDDs Checking Operation after Installation and Preparing the HDDs for Use Dismounting HDDs This chapter describes the notes on handling HDDs, setting, mounting HDDs, confirming HDD operations after installation and preparation for use, and dismounting HDDs. Notes on Handling HDDs The items listed in the specifications in Table 2.3 must be strictly observed. - Page 58 Installation Unpackaging a) Use a flat work area. Check that the "This Side Up" sign side is up. Handle the package on soft material such as a rubber mat, not on hard material such as a desk. b) Be careful not to give excess pressure to the internal unit when removing cushions. c) Be careful not to give excess pressure to the PCBA and interface connector when removing the HDD from the antistatic bag.
-
Page 59: Setting
5.2 Setting Setting 5.2.1 Port Address Every device that uses the SAS interface has a unique SAS address, and commands use an SAS address to identify each device for I/O operations. Every HDD is assigned a unique SAS address before shipment from the factory, so setting of an address is not required before the HDDs are used. Mounting HDDs 5.3.1 Mounting procedures... -
Page 60: Checking Operation After Installation And Preparing The Hdds For Use
Installation Checking Operation after Installation and Preparing the HDDs for Use 5.4.1 Checking initial operation The procedure for verifying operation after power-on is explained below. Initial diagnosis at the time of power-on: a) When the HDDs are turned on, the LED blinks and the HDDs perform the initial self-diagnosis (controller hardware diagnosis). -
Page 61: Formatting
5.4 Checking Operation after Installation and Preparing the HDDs for Use c) Issue the REQUEST SENSE command to collect sense data. When sense data has been collected successfully, perform an analysis to check for recoverable errors, and retry operations for recovery from any such errors. Checking at abnormal end When sense data can be obtained, analyze the sense data and retry recovery for a recoverable error. - Page 62 Installation FORMAT UNIT command Initialize entire recording surface of the disk with the FORMAT UNIT command. The FORMAT UNIT command initializes entire surface of the disk using the P lists, verifies data blocks after initialization, and allocates an alternate block for a defect block detected with verification. With initialization, the pattern specified with the initialization data pattern field is written into all bytes of all logical data blocks.
-
Page 63: Setting Parameters
5.4 Checking Operation after Installation and Preparing the HDDs for Use 5.4.3 Setting parameters The user can specify the optimal operation mode for the user system environments by setting the following parameters with the MODE SELECT or MODE SELECT EXTENDED command: •... - Page 64 Installation Error recovery parameters The following parameters are used to control operations such as HDD internal error recovery: a. Read/write error recovery parameters (page code = 1) Parameter Default value • AWRE: Automatic alternate block allocation at Write 1 (enabled) operation •...
- Page 65 5.4 Checking Operation after Installation and Preparing the HDDs for Use Caching parameters (page code = 8) The following parameters are used to optimize HDD Read-Ahead caching operations under the system environments. Refer to Chapter 3 “Data Buffer Management” of the SAS INTERFACE MANUAL for further details.
-
Page 66: Dismounting Hdds
Installation Port control parameters The following parameters are used to control the ready LED signal behavior. Parameter Default value • READY LED MEANING 0 (LED is on when HDD is ready) Dismounting HDDs Since the method and procedure for dismounting the HDD for replacement of the HDD, etc. depends on the locker structure of the system, etc., the work procedure must be determined in consideration of the requirements specific to the system. -
Page 67: Chapter 6 Diagnostics And Maintenance
CHAPTER 6 Diagnostics and Maintenance Diagnostics Maintenance Operation Check Troubleshooting Packaging This chapter describes diagnostics and maintenance. Diagnostics 6.1.1 Self-diagnostics The HDDs have the following self-diagnostic function. This function checks the basic operations of the HDDs. • Initial self-diagnostics • Online self-diagnostics (SEND DIAGNOSTIC command) Table 6.1 lists the contents of the tests performed with the self-diagnostics. - Page 68 Diagnostics and Maintenance Brief test contents of self-diagnostics are as follows. a. Hardware function test This test checks the basic operation of the controller section, and contains following test. • RAM (microcode is stored) • Peripheral circuits of microprocessor (MPU) •...
- Page 69 6.1 Diagnostics Online self-diagnostics (SEND DIAGNOSTIC command) The initiator can make the HDDs execute self-diagnostics by issuing the SEND DIAGNOSTIC command. The initiator specifies the execution of self-diagnostics by setting 1 for the SelfTest bit on the CDB in the SEND DIAGNOSTIC command and specifies the test contents with the UnitOfl bit.
-
Page 70: Test Programs
Diagnostics and Maintenance When an error is detected in the hardware function test, the HDDs post the CHECK CONDITION status for all I/O operation request except the REQUEST SENSE command. The error status is not cleared even if the error information (sense data) is read. Only when the power is turned off or re-turned on, the status can be cleared. -
Page 71: 6.2 Maintenance
See Section 5.1 and 6.5 for notes on packaging and handling when returning the HDD. Data loss Save data stored on the HDD to other media before requesting repair. Fujitsu does not assume responsibility if data is corrupted during servicing or repair. 6.2.1... -
Page 72: Maintenance Requirements
The PCBA cannot be replaced in the field. The DE cannot be replaced in the field. Service system and repairs Fujitsu has the service system and repair facility for the HDD. Contact Fujitsu representative to submit information for replacing or repairing the HDD. Generally, the following information must... -
Page 73: Maintenance Levels
Replacement is usually done by the user, retail dealer, distributor, or OEM engineer. Factory maintenance (parts replacement) • This replacement can only be done by Fujitsu. • Replacement includes maintenance training and OEM engineer support. OEM engineers usually support retail dealers and distributors. -
Page 74: Tests
Diagnostics and Maintenance 6.2.5 Tests This HDD can be tested in the following ways: • Initial seek operation check (See Subsection 6.3.1) • Operation test (See Subsection 6.3.2) • Diagnostic test (See Subsection 6.3.3) Figure 6.1 shows the flow of these tests. Start Start self-test by turning the power on... -
Page 75: Operation Check
6.3 Operation Check Operation Check 6.3.1 Initial seek operation check If an error is detected during initialization by the initial seek operation check routine at power-on, the spindle motor of the HDD stops, and then the HDD becomes unusable. For an explanation of the operation check before the initial seek, refer to the Section 5.4. 6.3.2 Operation test While the host computer is processing data, the HDDs monitor HDD operation including data... -
Page 76: Troubleshooting
At this level of maintenance, we recommend replacing the HDD as a unit. If replacing the HDD rectifies the fault, return the removed HDD to Fujitsu, for test and repair. If the newly installed HDD does not rectify the fault another part of the system is faulty. -
Page 77: Table 6.2 System-Level Field Troubleshooting
6.4 Troubleshooting Table 6.2 System-level field troubleshooting Item Recommended work DC power level Check that the DC voltage is within the specified range (±5%). For +5V DC, measure the voltage between pin 20 (+5V) of the interface connector and the nearest PCBA mounting screw (GND) from the interface connector, and confirm the value is from 4.75 to 5.25 VDC. -
Page 78: Troubleshooting At The Repair Site
HDD to Fujitsu for repair. A media defect list must be included with the HDD returned to Fujitsu. If the possibly faulty part is the DE, return the whole HDD to Fujitsu for repair. Also if a clear error (erroneous servo track information or noisy HDD) is detected in the DE, return the whole HDD to Fujitsu. -
Page 79: Troubleshooting With Parts Replacement In The Factory
6.4 Troubleshooting 6.4.4 Troubleshooting with parts replacement in the factory This manual does not cover troubleshooting at the factory level. 6.4.5 Finding possibly faulty parts Finding possibly faulty parts in the field was explained in Subsection 6.4.2. This manual does not cover finding possibly faulty parts at the factory level. -
Page 80: Packaging
Diagnostics and Maintenance Packaging When the products are packed, the following methods are recommended. 6.5.1 Bag packaging 2nd folding Product 1st folding From Connector side Seal tape Conductivity bag Figure 6.2 Bag packaging Put the product in the conductivity bag. •... -
Page 81: Box Packaging
6.5 Packaging 6.5.2 Box packaging Cushion (upper) Desicant Unitary paked product Cushion (lower) Seal side Conductivity bag (large) Box (multi-box) Figure 6.3 Box packaging Put the conductivity bag (large) into the multi-box, in addition, put the cushion (lower) into the bag. Put the bag packed products into the cushion (lower). -
Page 82: Figure 6.4 Fraction Packaging
Diagnostics and Maintenance Figure 6.4 Fraction packaging C141-E266... -
Page 83: Chapter 7 Error Analysis
(Auto Sense function). This HDD is equipped with sense data with a byte length of 48. Accordingly, Fujitsu recommends collecting all 48-byte sense data when the host unit collects sense data. -
Page 84: Figure 7.1 Sense Data Format
Error Analysis Bit 7 Byte 0 Valid X‘70’ or X‘71’ (error code) X‘00’ Sense key [MSB] Information [LSB] X‘28’ (additional sense data length) [MSB] Basic information Command-specific information [LSB] Additional sense code Additional sense code qualifier X‘00’ SKSV Sense key-specific information Port CDB operation code Additional... -
Page 85: Sense Data Analysis
7.2 Sense Data Analysis Sense Data Analysis 7.2.1 Error information indicated with sense data Table 7.1 lists the definition of sense data. For details of the following sense data, refer to Chapter 6 “Sense Data Error Recovery Methods” of the SAS INTERFACE MANUAL. Subsection 7.2.2 onwards explain troubleshooting using sense data. -
Page 86: Sense Data (3-0C-03), (4-32-01), (4-40-Xx), (4-C4-Xx), And (4-44-Xx)
Error Analysis 7.2.2 Sense data (3-0C-03), (4-32-01), (4-40-xx), (4-C4-xx), and (4-44-xx) Sense data (3-0C-03), (4-32-01), (4-40-xx), (4-C4-xx), and (4-44-xx) indicate one of the following: • A target sector could not be detected using the sector counter. • A seek process overran the specified time. •... -
Page 87: Glossary
Glossary Additional Sense Code This is a 1-byte code displayed in the sense data and is information which specifies the type of error that was detected. Command Descriptor Block A series of data which describes commands related to input/output operations, sent from the initiator to the target. - Page 88 This page is intentionally left blank.
-
Page 89: Abbreviation
Acronyms and Abbreviations Hard Disk Drive Alternating Current ARRE Automatic Read Reallocation Input/Output Enabled IDentifier AWRE Automatic Write Reallocation Enabled Light Emitting Diode Large-Scale Integrated circuit Bits Per Inch MEEPRML Modified Enhanced Extended Common Descriptor Block Partial Response Maximum CmpLst Complete List Likelihood Cyclic Redundancy Check MicroProcesser Unit... - Page 90 Acronyms and Abbreviations SelfTest Self Test Save Page Voice Coil Motor SPindle Motor Write Cache Enable Transfer Block Tracks Per Inch UnitOfl Unit Offline C141-E266...
-
Page 91: Index
Index data space............27 defect list............36 defect management ..........36 actuator .............. 17 defective block slipping ........15 additional error recovery parameters ....60 delivery .............. 54 additional sense code ......... 79 diagnosis ............16 additional sense code qualifier......79 diagnostic ............ - Page 92 Index HDD replacement ..........69 order number ............21 head..............17 outline of troubleshooting procedure ....72 high speed positioning ........15 high-speed data transfer ........14 packaging ............. 54, 76 PAD ..............33 initial diagnosis at time of power-on....56 page code .............
- Page 93 Index storage..............54 sync mark............33 unpackaging ............54 system configuration.......... 18 unrecoverable error rate ........25 system space ............29 user space............29 test..............70 vent hole............. 44 test program ............66 verify error recovery parameter ......60 tool and test equipment ........69 verifying HDD operation ........
- Page 94 This page is intentionally left blank.
