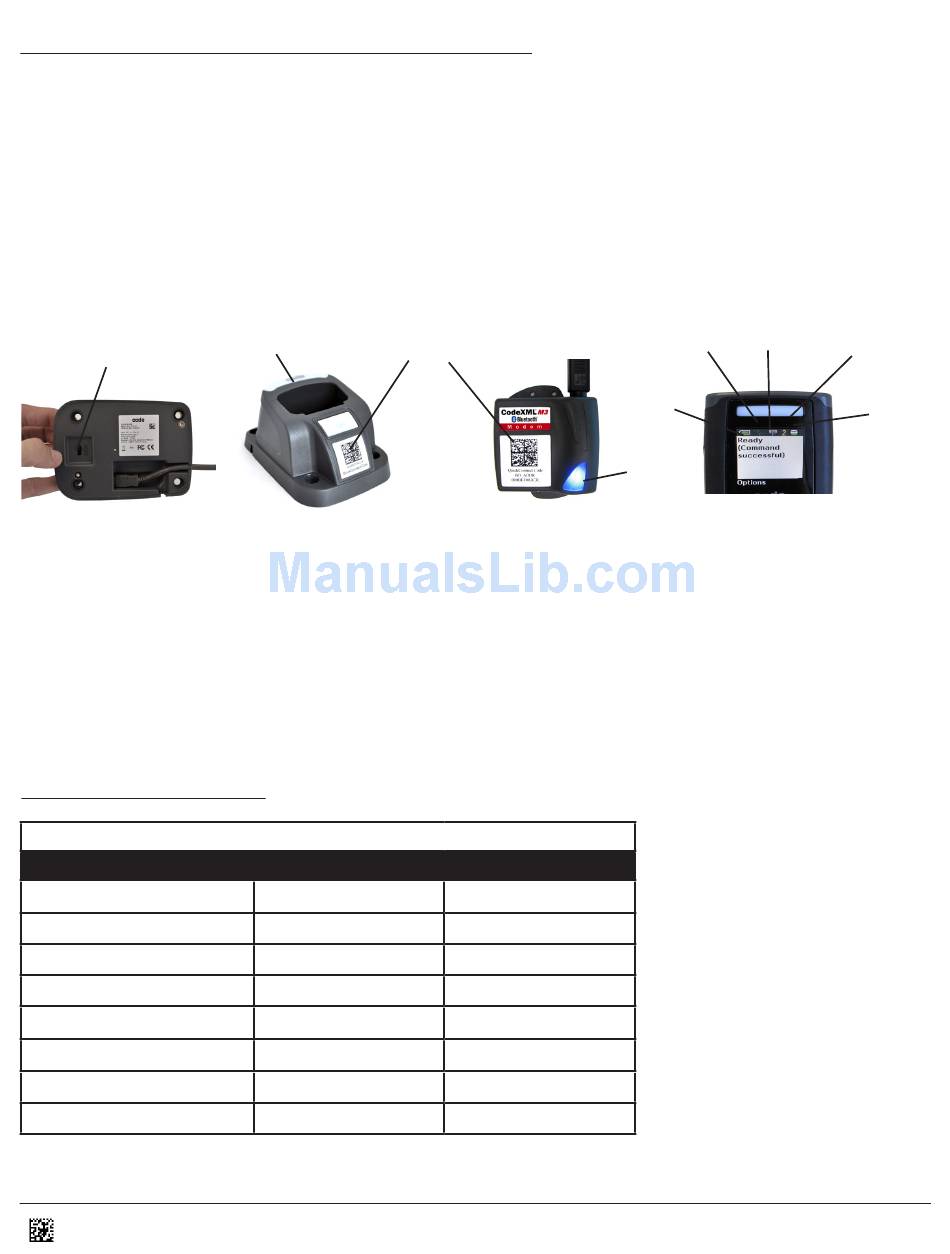

18.0 - Establishing a Bluetooth® Connection
1. If establishing a Bluetooth connection using the Charging Station with embedded CodeXML® Modem, slide the Communication
Mode Switch on the Charger/Modem Station (Figure 33), to Bluetooth mode (the direction of the arrow).
2. Scan the QuickConnect Code located on the front of the Charging Station with embedded CodeXML® modem or on the external
CodeXML® M3 Modem (Figures 34 and 35).
3. The wireless icon located at the top of the reader will flash as it attempts to make connection (Figure 36). The blue LED on the
charging station or CodeXML® M3 Modem (Figures 35 and 36) will also flash as it attempts to connect. The blue LED will turn
solid when connection is established, the CR3600 will beep once and the wireless icon will flash every 10 seconds.
For additional CodeXML® M3 Modem configuration information, please reference the CodeXML® M3 Modem QuickStart Guide.
Communication
Mode Switch
Figure 33
Important Note If Using a non-Code Bluetooth Device:
To connect to a Bluetooth device not manufactured by Code, you will need the Bluetooth address (often referred to as the BD_ADDR)
of that device. The 12-character Bluetooth address can be found on the device near the serial number. Then visit Code's website at:
http://www.codecorp.com/bdaddr.php and enter the 12-character address to create the QuickConnect Code.
You will need to locate the Communications (COM) Port assigned to the Bluetooth serial port protocol before installing the Bluetooth
Configuration Manager software that is included with your Bluetooth adapter (e.g., COM 10). This is the COM Port through which the
CR3600 will connect.
19.0 - Reading Ranges
Test Barcode
3 mil Code 39
7.5 mil Code 39
10.5 mil GS1 DataBar
13 mil UPC
5 mil Data Matrix
6.3 mil Data Matrix
10 mil Data Matrix
20.8 mil Data Matrix
Note: working ranges are a combination of both the wide and high density fields. All samples were high quality barcodes
and were read along a physical center line at a 10° angle. Default AGC settings were used. Accuracy= +/- 10%.
D013597_02_CR3600_User_Manual
Blue LED
QuickConnect Code
Figure 34
CR3600 Performance
Min Inches (mm)
3.1" (80 mm)
1.3" (33 mm)
0.8" (20 mm)
1.1" (28 mm)
1.7" (43 mm)
1.3" (33 mm)
0.8" (20 mm)
1.1" (28 mm)
Connection Icon
Battery Charge
Indicator
Blue LED
Figure 35
Max Inches (mm)
4.0" (102 mm)
7.2" (182 mm)
8.7" (220 mm)
11.0" (280 mm)
4.5" (115 mm)
5.9" (150 mm)
7.1" (180 mm)
13.5" (343 mm)
Wireless Icon
Good Read
Indicator
Storage Icon
Figure 36
10
