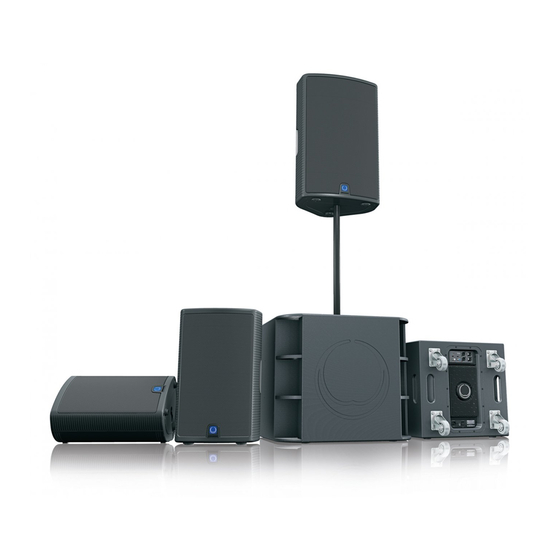

Turbosound Miln series Quick Start Manual

Professional loudspeaker
Hide thumbs

Advertisement

Table of Contents

Series
Series
Quickstart Guide
A54-00000-85132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Miln series and is the answer not in the manual?

Questions and answers

Related Manuals for Turbosound Miln series

Summary of Contents for Turbosound Miln series

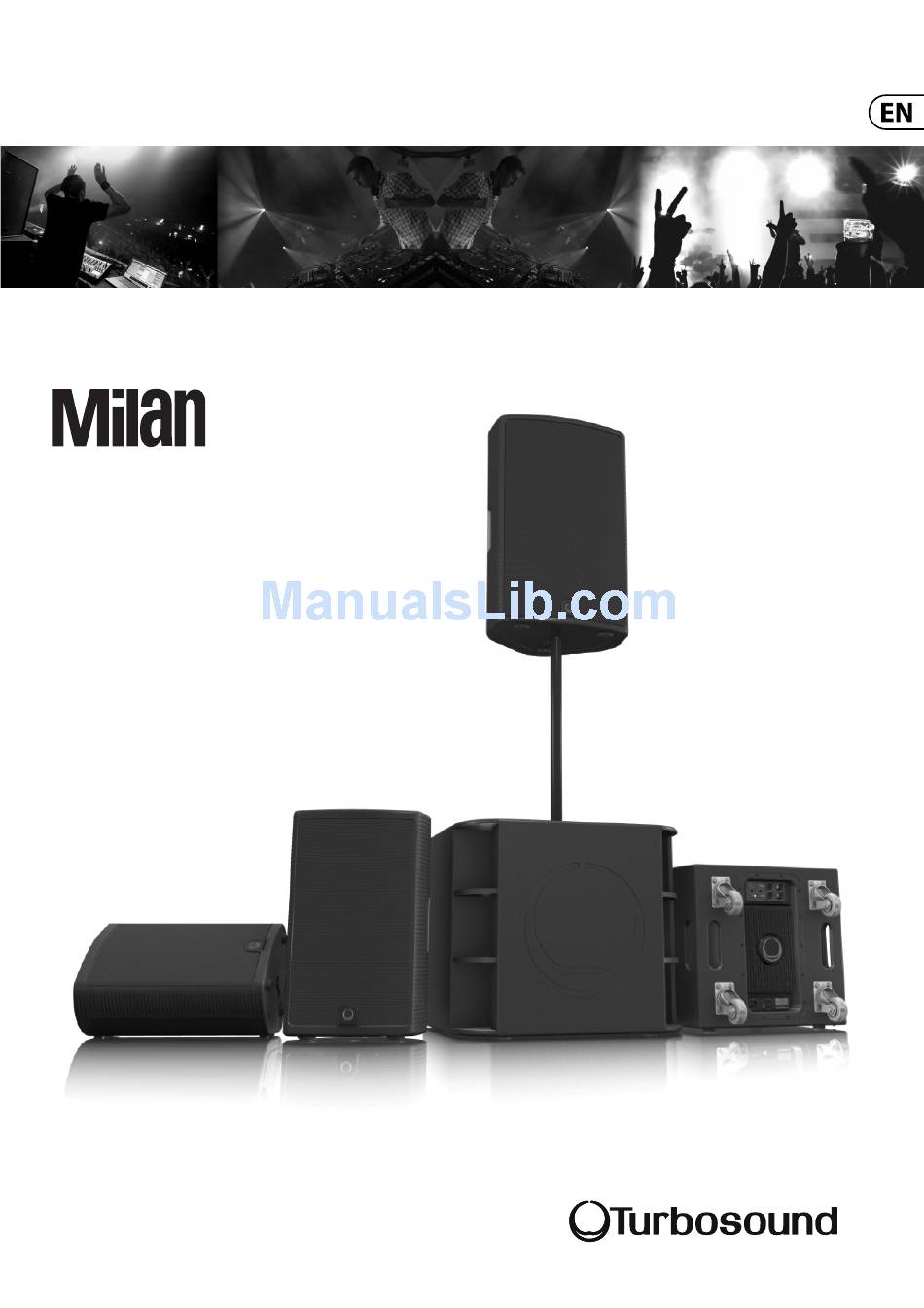

  • Page 1 Series Series Quickstart Guide A54-00000-85132...
  • Page 2 8. Do not install near any ACCURACY IS NOT GUARANTEED. heat sources such as radiators, BEHRINGER, KLARK TEKNIK, MIDAS, heat registers, stoves, or other BUGERA, AND TURBOSOUND apparatus (including amplifiers) ARE PART OF THE MUSIC GROUP that produce heat. (MUSIC-GROUP.COM).
  • Page 3 By engaging in an on-going rigorous program of research and development all TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our website at: turbosound.com We look forward to helping you in the near future.

  • Page 4: Connection Diagrams

    Milan Series Connection Diagrams Small duo setup using the integrated mixer and Mix Out function The integrated two channel mixer allows the simultaneous use of either two low impedance dynamic microphones, a microphone and a line level source, or two line level sources. The line level source(s) can be an acoustic instrument such as a guitar with either passive or active on-board electrics, a keyboard, or MP3 player.

  • Page 5: Stereo Pa With An External Mixer

    Quickstart Guide Stereo PA with an external mixer Two Milan loudspeakers form the left and right elements of a stereo PA setup with all signal sources connected to an external mixing console. Ensure that the MIC/LINE switch is set to LINE on both loudspeakers.

  • Page 6: Stereo Pa With An External Mixer And Subwoofer(S)

    Milan Series Stereo PA with an external mixer and subwoofer(s) In this example, sub frequencies are routed to a separate subwoofer(s) in order to gain extended frequency response and higher overall sound level. Connect the mixer output fi rst to the subwoofers and then loop up to the Milan mid/high loudspeakers.

  • Page 7: Stereo Pa With Powered Wedge Monitors

    Quickstart Guide Stereo PA with powered wedge monitors On larger gigs a separate monitor system provides good quality foldback for individual performers and helps to keep the front of house PA sound less cluttered. Set the LOW CUT switch on the monitor speakers to the 100 Hz position for best results if used on the fl...
  • Page 8 Milan Series Connecting to the Milan Loudspeaker 1. Mains Connector and Fuseholder Mains power is connected to the loudspeaker via a combination IEC connector and fuseholder. 2. Mains Switch Rocker switch turns mains power on to the loudspeaker. Make sure the level controls are fully off (MIN) before switching on.
  • Page 9 Quickstart Guide 7. Bass Control The bass control provides ±6 dB of shelving at 80 Hz. Always use equalisation sparingly, aiming to cut rather than boost especially when the loudspeaker is used near boundaries such as walls or fl oors. 8.
  • Page 10 Milan Series Connecting to the Milan Subwoofer 1. Mains Connector Mains power is connected to the subwoofer via an IEC connector. 2. Fuseholder Replace fuse only with the same type and rating. 3. Mains Switch Toggle push switch turns mains power on to the loudspeaker. Make sure the level control is fully off (MIN) before switching on.
  • Page 11 Quickstart Guide 5. Thru Connections These 3-pin balanced male XLR connectors provide independent full range audio signals from each input channel for loop-through connections to Milan two-way loudspeakers or additional Milan subwoofers. 6. Boost Applies +3 dB of boost with a Q factor of 1 at a centre frequency selected via the associated boost freq control (12).
  • Page 12 Milan Series Getting Started – Milan M10, M12 and M15 1. Turn the level controls fully anticlockwise (zero) on both input channels. 2. Set the BASS and TREBLE tone controls to their centre position (no boost or cut). 3. Connect your signal sources (mixing console, keyboard, microphone, acoustic guitar) to the appropriate input connectors and select MIC or LINE as appropriate for that source.
  • Page 13 Quickstart Guide Getting Started – Milan M15B and M18B Subwoofers 1. Turn the LEVEL control fully anticlockwise (zero). 2. Connect the left and right outputs from your mixing console to the appropriate input connectors. 3. Switch on the mixing console and make sure the output faders or master output level controls are turned fully down.

  • Page 14: Using Milan As A Floor Monitor

    Milan Series Using Milan Loudspeakers with Subwoofers Improved bass response and higher overall sound pressure level can be achieved by adding sub-bass loudspeakers to the Milan system. This also reduces mechanical stress on the Milan loudspeaker’s low frequency driver, since most of the low frequency content in the signal is routed to the subwoofer. It is recommended that you connect the full range signal from the mixer fi...

  • Page 15: Connector Wiring

    Quickstart Guide Connector Wiring The microphone and line inputs are designed to accept balanced (three conductor) connections, and it is recommended that this method be used since it offers the best rejection of noise, hum and radio interference, especially where long cable runs are involved. XLR connectors should be wired pin 2 hot (positive), pin 3 cold (negative) and pin 1 ground, while the standard wiring for 3-pole jack plug connectors is tip hot (positive), ring cold (negative) and sleeve ground as shown below.

  • Page 16: Loudspeaker Placement

    Milan Series Loudspeaker Placement In order to avoid the possibility of feedback, always locate the loudspeakers in front of your microphones and do not point microphones directly at the front of a loudspeaker. When using speaker stands, try to raise the loudspeakers as high as practically possible (at least higher than the heads of the audience) since people are very good absorbers of sound, especially at high frequencies.

  • Page 17: Using The M10 Rigging Points

    Quickstart Guide Installing Milan Loudspeakers Using the M10 rigging points Milan loudspeakers can be permanently installed in a venue, suspended from eyebolts fi tted to the internal M10 rigging points on the top and bottom of the cabinet. Three possible orientations are available: vertically upright, or upside down to position the high frequency driver closer to the audience, or sideways if required.

  • Page 18: Troubleshooting

    Milan Series Troubleshooting Fault Check Action No power to the loudspeaker Is the mains lead plugged in? Connect the mains lead Is the mains outlet live? Check the mains outlet or switch to another outlet Is the power switch on? Press the mains switch No sound / quiet sound Are the level controls turned down...

  • Page 19: Technical Specifications

    Quickstart Guide Technical Specifi cations Model M15B M18B 1 x 10" LF driver 1 x 12" LF driver 1 x 15" LF driver Components 1 x 15" LF driver 1 x 18" LF driver 1 x 1" HF driver 1 x 1" HF driver 1 x 1"...

  • Page 20: Spare Parts And Accessories

    Milan Series Spare Parts and Accessories Model Description LS-1032 10" (254 mm) low frequency driver for M10 LS-1229 12" (305 mm) low frequency driver for M12 LS-1534 15" (381 mm) low frequency driver for M15 LS-1535 15" (381 mm) low frequency driver for M15B LS-1819 18"...
  • Page 21 Caso seu fornecedor MUSIC Group não 1. Registro online. Le recomendamos que Internet sur le site turbosound. com AVANT de esteja localizado nas proximidades, você registre su nuevo aparato MUSIC Group justo nous renvoyer le produit.

  • Page 22: Federal Communications Commission Compliance Information

    Milan Series FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION TURBOSOUND MILAN M18B/M15B/M15/M12/M10 Responsible Party Name: MUSIC Group Services US Inc. Address: 18912 North Creek Parkway, Suite 200 Bothell, WA 98011, USA Phone Number: +1 425 672 0816 MILAN M18B/M15B/M15/M12/M10 complies with the FCC rules as mentioned in the...
  • Page 23 Quickstart Guide...

This manual is also suitable for:

Milan seriesMilan m10Milan m12Milan m15Milan m15bMilan m18b
